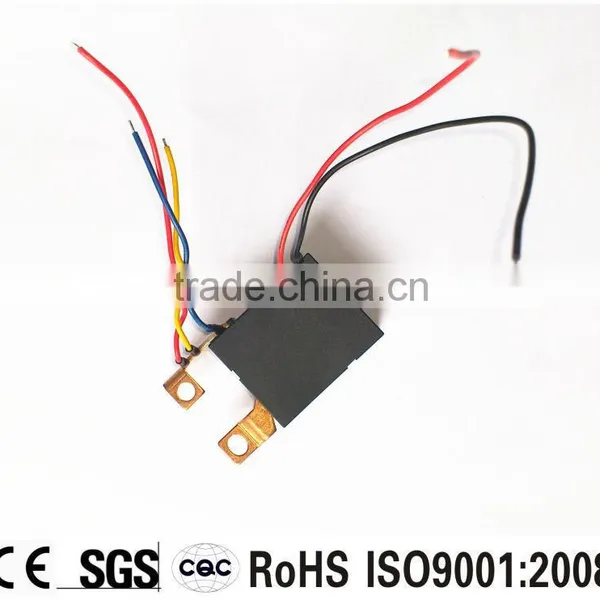

RAMWAY DS902F Smart KWH Meter Rele, 60a Switch,9v Pulse Control Switch

RAMWAY DS902F Smart KWH Meter Rele, 60a Switch,9v Pulse Control Switch thumbnail-1
RAMWAY DS902F Smart KWH Meter Rele, 60a Switch,9v Pulse Control Switch photo-1
US$ 1.75 - 4.25 MOQ: 400 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
RAMWAY
Model Number:
DS902F-60A
Contact Supplier Request Quote Chat Now
Guangxi Ramway Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangxi, China
Brand Name RAMWAY
Model Number DS902F-60A
Theory Electromagnetic Relay
Usage Protective
Size Miniature
Protect Feature Epoxy
Contact Load High Power

CONTACT DATA

Contact form

1A & 1B

Contact resistance

Max.2mΩ(12VDC 1A)

Contact material

Silver alloy

Resistance load

60A/250VAC

Max. switching current

60A

Max. switching power

15000VA

Electrical life

1x104 OPS

Mechanical life

1x105 OPS























CHARACTERISTICS

Insulation resistance

1000MΩ (at 500VDC)

Dielectric

strength

Between contact & coil

4000VAC 1min

Between contacts

1500VAC 1min

Operation time

Max.20msec.

Comeback time

Max.20msec.

Vibration resistance

10-55Hz, 1.5mm(DA)

Humidity

98%RH, +40°C

Termination

PCB&QC

Weight

39g

























COIL DATA



Nominal coil voltage

Single coil resistance

Dual coil resistance

6VDC

36Ω

2X18Ω

9VDC

75Ω

2X40Ω

12VDC

120Ω

2X70Ω

24VDC

550Ω

2X280Ω



















ORDER INFO



-----------------------

DS902F

A

60A

9V

D

T

Relay Model













Connecting form

A/B/C/D/E

Terminal Type

60A 80A   100A

Coil Voltage

6/9/12/24VDC

Coil Type

Single-No mark   Double-D

Contact Material

D – AgCdO12 T – AgSnO2























Other Data

1.Size(mm): 39x31.7x18

2.Space between pins (mm): 5

3.Space between springs hole(mm): 21.5

4.Coil polarity: Positive/ Negative

5.Coil type: Single coil(two pins)/ Double coil(three pins)



Advantages

1.Only need pulse excitation and can be single or double coils working.

2.Small volume and PCB installation.

3.Low power consumption and strong load capacity.

4.Security, reliable and long working life.



Note

1.Free SAMPLE for testing(1-5pcs);

2.Factory price, FOB Shenzhen;

3.Welding accessories according to clients requirement;

4.If clients have special requirement on size of other dimension, please sent us the details or drawings;

5.Delivery: within 30 days after receiving the payment(this is for MOQ, any problem or special requests, contact us).

6.Provide OEM and ODM service.

7.Our brother company have combined with us, so now we also manufacture LITHIUM PRIMARY BATTERY.



Usage

Be fit for Prepayment energy Meter and AMR system Combination switch, reactive power compensation devices and automatic control.
