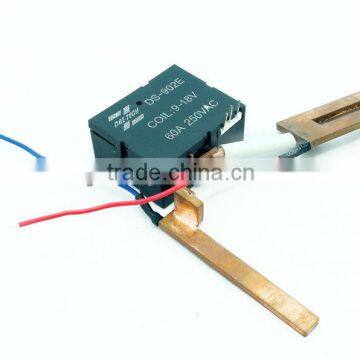

DS902E-B-60A Double Contact Relay

DS902E-B-60A Double Contact Relay thumbnail-1
DS902E-B-60A Double Contact Relay photo-1
US$ 1.42 - 1.87 MOQ: 400 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
RAMWAY
Model Number:
DS902E-B-60A
Contact Supplier Request Quote Chat Now
Guangxi Ramway Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangxi, China
Brand Name RAMWAY
Model Number DS902E-B-60A
Theory Electromagnetic Relay
Usage Other, Electrical Meter,Leakage Protect, Electrical Meter,Leakage Protect
Size Miniature
Protect Feature Epoxy
Contact Load High Power

DS902E-B-60A double contact relay

Contact Data

Contact arrangement

1A,1B

Contact resistance

2mΩ(1A,12VDC)

Contact material

Silver alloy

Contact rating(Res.load)

60A 250VAC

Max.switching current

60A

Max/switching power

15000VA

Electrical life

1x104 OPS

Mechanical life

1x105 OPS

Characteristics

Insulation Resistance

1000MΩ(500VDC)

Dielectric strength

Between coil&contacts

4000VAC 1 min

Between open contacts

1500VAC 1min

Operate time(at nomi.volt)

Max.20ms

Free time(at nomi.volt)

Max.20ms

Shock resistance(stability)

98m/s2

Virbration resistance

10Hz~55Hz 1.5mm

Humidity

98%RH,40°C

Ambient temperature

-40°C~+70°C

Coil Data

Nominal Coil Voltage

Nominal Coil Voltage

Dual Coil Voltage

6VDC

36Ω

2x18Ω

9 VDC

75Ω

2x40Ω

12VDC

120Ω

2x70Ω

24VDC

550Ω

2x280Ω

Ordering Information



DS902E

60A

B

9VDC

D

Series Name







100A







Load Current

60A ,80A

Connecting Form

A,B,C,D,E,etc

Welding accessories according to customer requirements

Coil rated volt

6VDC,9VDC,12VDC,18VDC,24VDC

Coil driving way

D=Double coils

S=Single coil



Shipping&payment



1.MOQ:400 PCS



2.Samples:(1)1~5 PCS Free.



               (2)samples freinght should be paid by buyers.



3.Packing detail:(1)400 PCS per carton



                       (2)carton size:40x35x35(cm)



                       (3)gross weight:26kg



4.Lead time:35 days after sample confirmed and deposit paid.



5.Delivery:FOB Shenzhen



6.Payment details:30% T/T deposit,balance paid by copy of B/L.West Union
