Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Renhe Pai | Model Number: | Various specifications |
Type: | Insulation Tape | Material: | PET | Application: | Other |
Tensile Strength: | 5 |
Product Description
Specifications

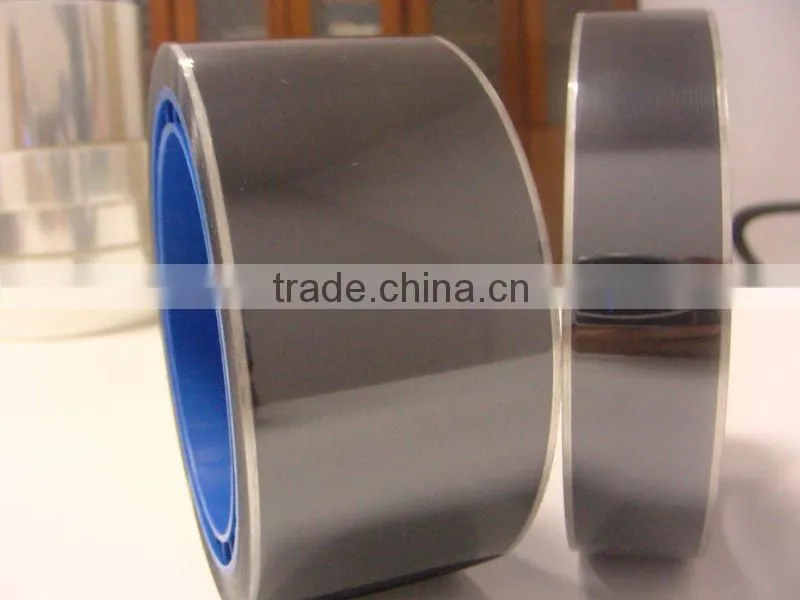

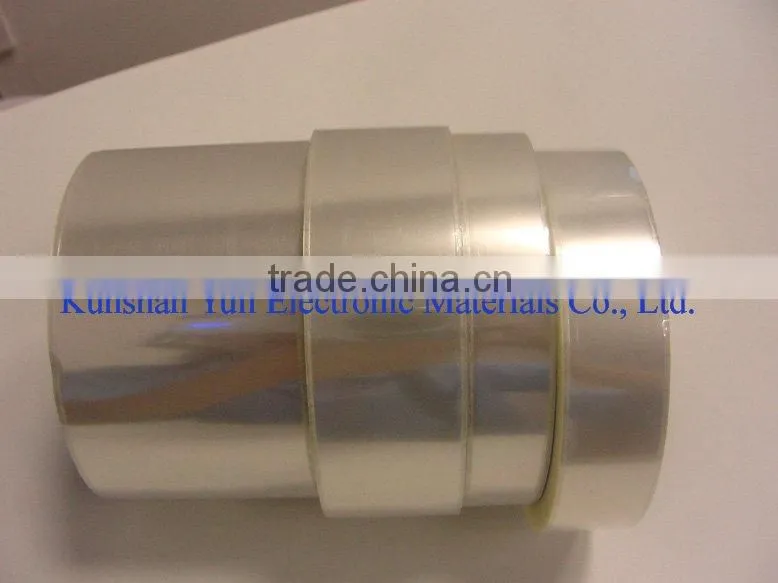

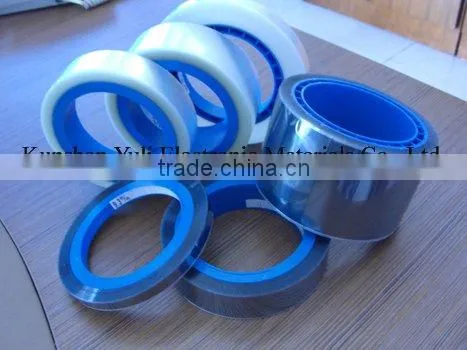

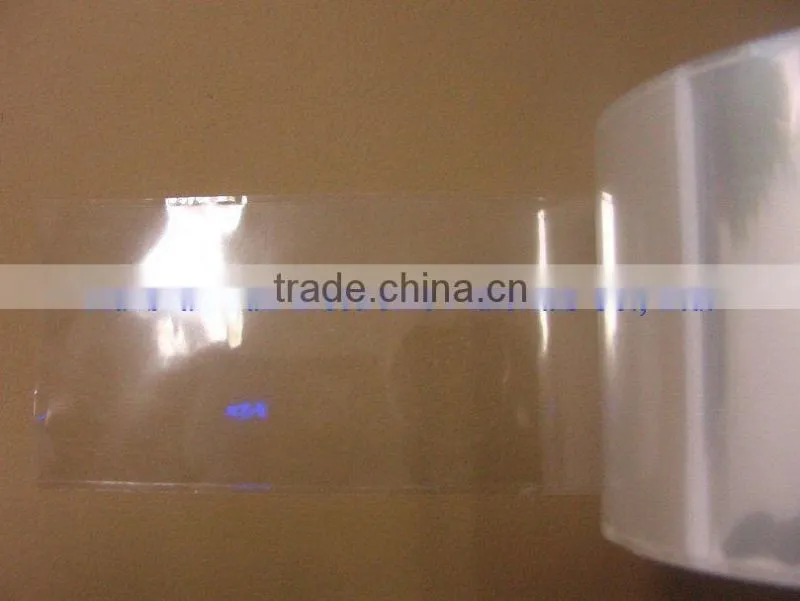

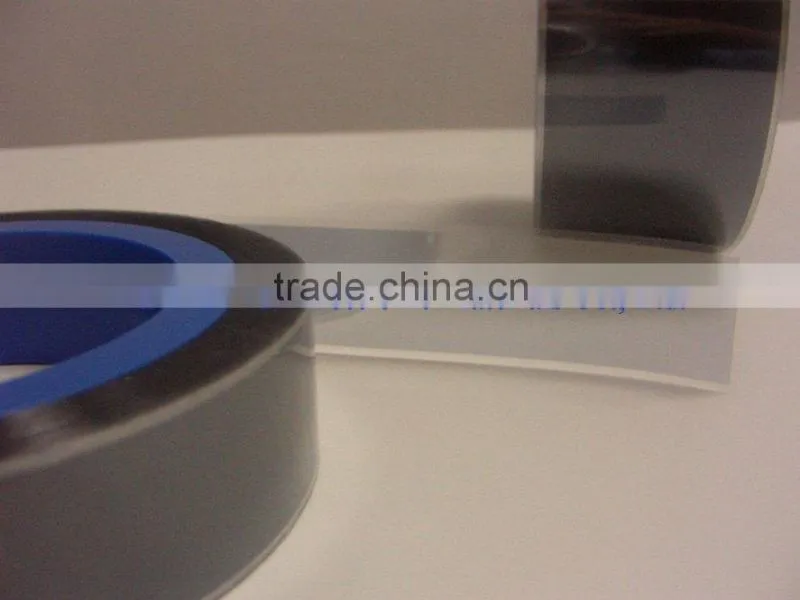

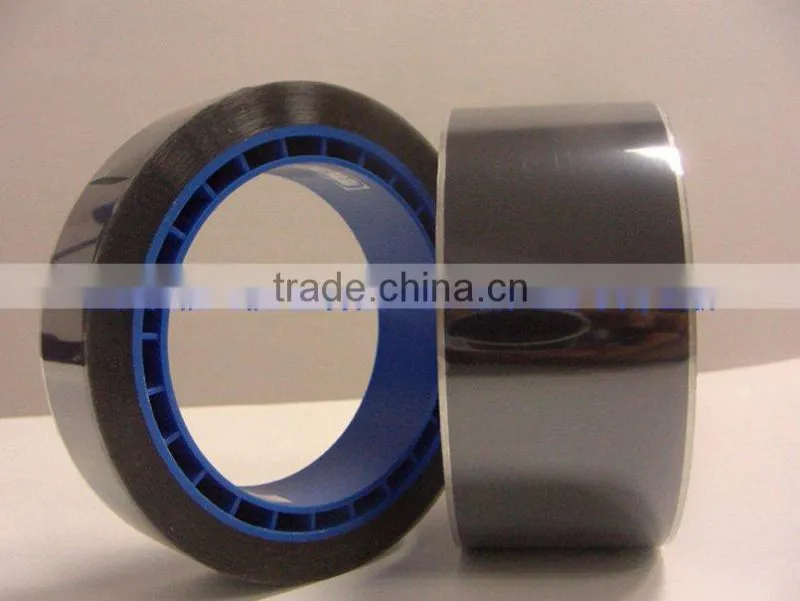

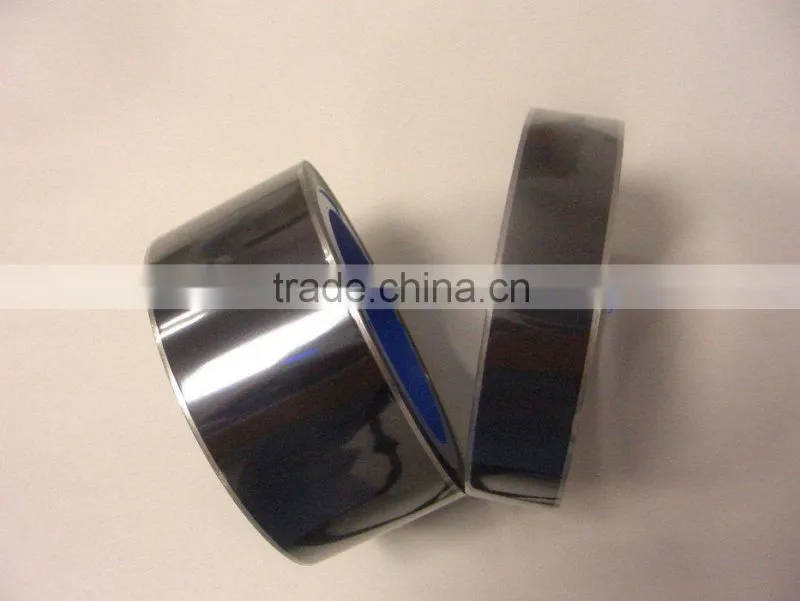

This PSA (Press-sensitive adhesive) cover tape is Used for Surface Mount Device (SMD) packing.Features:
1) Composed of PET film base and self-adhesive glue water;
2) Single-sided;
3) Good paste repeat performance and no residue after peeling off;
4) Can be teared and sealed repeatedly
5) Application: Quite suitable for PS, PC, PP, PET carrier tapes, SMT and High Speed Taping.
6)
Physical properties
Item | T50VP | T50VPC |
Backing | PET film | PET film |
Adhesive Type | Acrylic | Acrylic |
Thickness (um) | 62±5 | 62±5 |
Haze (%) | 24.3 | 13 |
Tensile strength (kg/15mm) | 5 | 5 |
Appearance | Hazel | Total transparent |
Sealing style | Autohesion, press fit | Autohesion, press fit |
Elongation (%) | 20 | 20 |
Surface resistance (ohm) (backing surface) | 1010-12 | 1010-12 |
Surface resistance (ohm) (heat-sealing surface) | 108-11 | 1010-12 |
