Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Diesel Power Plant For Sale

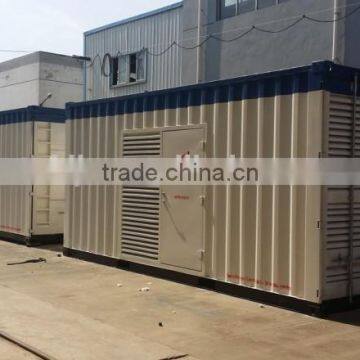

Diesel Power Plant For Sale

Name: Diesel Power Plant For Sale
Brand: Kaitong
SKU: 120032613
Availability: InStock

US$ 158,000 - 168,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Kaitong

Model Number:

KH-100GF

Contact Supplier Request Quote Chat Now

Jiangsu Kangdong International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Kaitong

Model Number KH-100GF

Output Type AC Three Phase

Speed 1500rpm

Frequency 50hz

Rated Power 5MW

Rated Voltage 400V

Rated Current 9000

DIESEL POWER PLANT FOR SALE

Generators can be used as back up power supply as well as prime power supply.

Sometimes to provide cutomers continuously massive power, we are professional to supply with diesel generator power plant solutions.

The generator power plant normally consists of multiple diesel generators, control panels, incoming cabinets, outlet cabinets, etc.

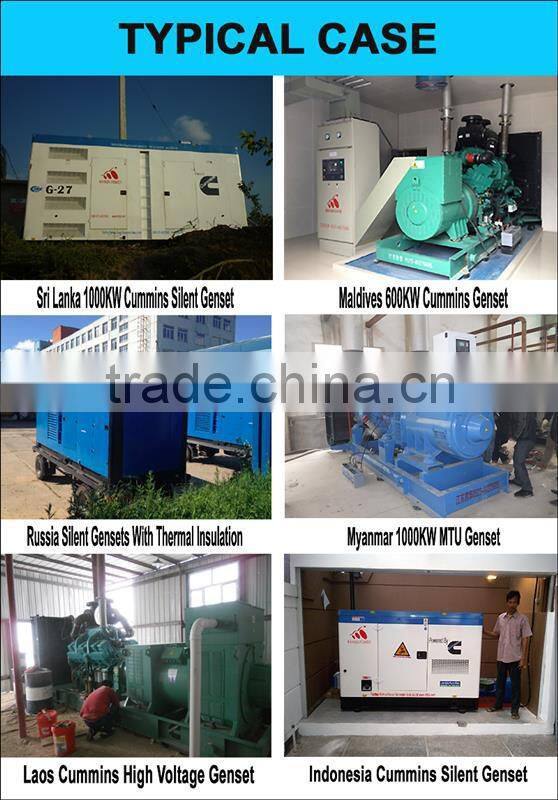

We have a professional team to provide with solutions and drawings to meet local customers requirements. Till now we have successfully accomplished many power plant projects home and abroad.

Sincerely welcome esteem customers' kind enquiry and suggestions.

1. Specification of genset
Genset Model				KH-1000GF
Prime Power (KW/KVA)				1000KW/1250KVA
Standby Power at 1 hour per 12 hours				1100KW/1375KVA
Rated Voltage(V)				220
Rated Current(A)				3280
Rated Frequency(HZ)				50
Power Factor(COS)				0.8 (lagging)
Rated Speed				1500rpm
Dimensions(mm) (L×W×H) -- silent type				8000×2800×3000
Genset Weight (kgs) -- silent type				11000
2. Specification of diesel engine
Engine Brand				powered by Cummins
Engine Model				KTA50-G3
Number of Cylinders				16
Cylinder Arrangement				“V” Type
Cycle				Four stroke
Air intake System				Turbo, Air/ Water cooling
Fuel System				PT type fuel pump, EFC
Maximum Standby Power at Rated RPM				1227KW (1669BHP)
Bore×Stroke (mm×mm)				159x 159
Displacement (Liter)				50.3
Compression Ratio				13.9:1
Speed Governor				Electronic
Cooling System				Water Cooled
Lub Oil Capacity (L)				177
Fuel Consumption at 100% Load (L/h)				254
Fuel Consumption at 100% Load (g/kwh)				202
Starting Method				DC24V electrical starting
3. Specification of alternator
Alternator Brand				ENGGA
Alternator Model				EG400L-1000N
Number of Phase				3
Connecting Type				3 Phases and 4 Wires
Number of Bearing				1
Maximum Capacity				1375KVA
Rated Speed				1500RPM
Protection Grade				IP21
Altitude				≤1000m
Exciter Type				Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class				H
TIF				≤50
THF				≤2%
Voltage Regulation, Steady State				≤±1%
Transient State Voltage				≤-15%~+20%
4. Specification of SmartGen HGM9510 control panel
HGM9510 controller is designed for manual/auto parallel system generators with similar or different capacity. Additionally, it is suitable for single unit constant power output and mains paralleling. It allows automatic start/stop, parallel running, data measurement, alarm protection as well as remote control, remote measurement and remote communication function. It fit with LCD display, optional Chinese, English and other languages interface, and it is reliable and easy to use. Utilizing the GOV (Engine Speed Governor) and AVR (Automatic Voltage Regulator) control function, the controller is able to synchronize and share load automatically; it can be used to parallel with other HGM9510 controller. HGM9510 controller also monitors the engine, indicating the operational status and fault conditions accurately. When abnormal condition occurs, it splits bus and shuts down the genset, simultaneously the exact failure mode information is indicated by the LCD display on the front panel. SAE J1939 interface enables the controller to communicate with various ECU (ENGINE CONTROL UNIT) which fitted with J1939 interface. The powerful 32-bit Microprocessor contained within the module allows for precision parameters measuring, fixed value adjustment, time setting and set value adjusting and etc..Majority parameters can be configured from front panel, and all parameters can be configured by USB interface (or RS485) to adjust via PC. It can be widely used in all types of automatic gen-set control system with compact structure, advanced circuits, simple connections and high reliability.

Taizhou Kaihua Diesel Generator Sets Co., Ltd was found in 2003, which specialize in development, manufacture, and sales of diesel generator sets. It is located in Taizhou City, Jiangsu Province, where the transportation is convenient, the geographical position is nice. You are always welcome to visit us at anytime of the year.
