Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > VOLVO 500kw / 625kva Diesel Generating Set + Engga Engine

VOLVO 500kw / 625kva Diesel Generating Set + Engga Engine

Name: VOLVO 500kw / 625kva Diesel Generating Set + Engga Engine
Brand: KANGDONG
SKU: 120030245
Availability: InStock

VOLVO 500kw / 625kva Diesel Generating Set + Engga Engine thumbnail-1

VOLVO 500kw / 625kva Diesel Generating Set + Engga Engine thumbnail-2

VOLVO 500kw / 625kva Diesel Generating Set + Engga Engine thumbnail-3

VOLVO 500kw / 625kva Diesel Generating Set + Engga Engine thumbnail-4

VOLVO 500kw / 625kva Diesel Generating Set + Engga Engine thumbnail-5

VOLVO 500kw / 625kva Diesel Generating Set + Engga Engine photo-1

VOLVO 500kw / 625kva Diesel Generating Set + Engga Engine photo-2

VOLVO 500kw / 625kva Diesel Generating Set + Engga Engine photo-3

VOLVO 500kw / 625kva Diesel Generating Set + Engga Engine photo-4

VOLVO 500kw / 625kva Diesel Generating Set + Engga Engine photo-5

US$ 99999999.00 - 99999999.00 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

KANGDONG

Model Number:

KD-500GF

Contact Supplier Request Quote Chat Now

Jiangsu Kangdong International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Or Other main port of china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name KANGDONG

Model Number KD-500GF

Output Type AC Three Phase

Speed 1500RPM/1800RPM

Frequency 50HZ/60HZ, 50Hz/60Hz

Rated Power 500KW

Rated Voltage 400/230V

Rated Current 949.6A

VOLVO 500kw / 625kva Diesel Generating Set + Engga Engine

1. Specification of genset
Gensets model				KD-500GF
Prime power				500KW
Rated Voltage				380/220V
Rated frequency(HZ)				50
Rated Speed				1500rpm
Power Factor				0.8(lagging)
Dimensions(mm) (L×W×H)				3400x1380x2050
Net Weight(kg)				4050
2. Specification of diesel engine
Engine brand				VOLVO
Engine model				TWD1643GE
Air Intake System				Turbocharged, Water charge Air Cooling
Fuel System				Elec. Injection, Elec. Fuel System
Cycle				Four stroke
Cylinder Arrangement				6 in line
Displacement				16.12L
Bore×Stroke (mm×mm)				144 x 165
Compression Ratio				16.5:1
Rated RPM				1500rpm
Cooling System				Forced Water Cooling Cycle
Max. Standby Power at Rated RPM				596KW/811HP (with fan)
Starting Method				DC24V electrical starting
Exhaust System
Exhaust Gas Flow				111.8m3/min
Exhaust Temperature				463°C
Max Back Pressure				10kPa
Air Intake System
Max Intake Restriction				5kPa
Burning Capacity				46.96 m3/min
Air Flow				780m3/min
Fuel System
100%(Prime Power) Load				199 g/KWh
75%(Prime Power) Load				196 g/KWh
50%(Prime Power) Load				196 g/KWh
Total Fuel Flow				190L/h
Oil System
Total Oi l Capacity				48L
Oil Consumption				0.11L/h
Engine Oil Tank Capacity				42L
Oil Pressure at Rated RPM				300-650kPa
Cooling System
Total Coolant Capacity				128L
Thermostat				82-92°C
Max Water Temperature				103°C
3. Specification of alternator
Alternator brand				Engga
Alternator model				EG355L-500N
Excitation				Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Winding pitch				2/3 pitch
Poles				4
Bearing				1
Stator winding				12
Insulation				H
Protection				IP21
Duty type				Continuous
AVR type				WT-2
Base line				Fly wheel
Temperature rise				<125 Degree
Overload (100% load)				110% load 1H
Waveform THD				<5%
Adjustment for Voltage				AVR
Adjustment Ratio for Voltage				±5%
Voltage regulation				±1%
No load voltage waveform				<2%
WaveformTIF				< 50
4. Specification of control Panel(with GU620A controller)
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function.
The features of GU620A controller:
GU620A is a new generation Automatic control module for single Genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of Genset for user or special assembly factory.
The module also monitors and protects the engine, indicating operational status, fault conditions and metering on the front panel LCD and LED’s.

Parameters

Hot Selling Product

Engine: Alternator: Control System:

Cummins (USA ) Original and OEM stamford Deep sea

Deutz Engine(Germany) Marathon Harson

Volvo Engine(Sweden) Engga Smartgen

Doosan Engine(Korea) Leroy Somer ComAp

Perkins(UK) MTU(Germany)

Weichai Engine(China)

Shanghai Engine (China)

Yuchai Engine (China)

Why Choose us

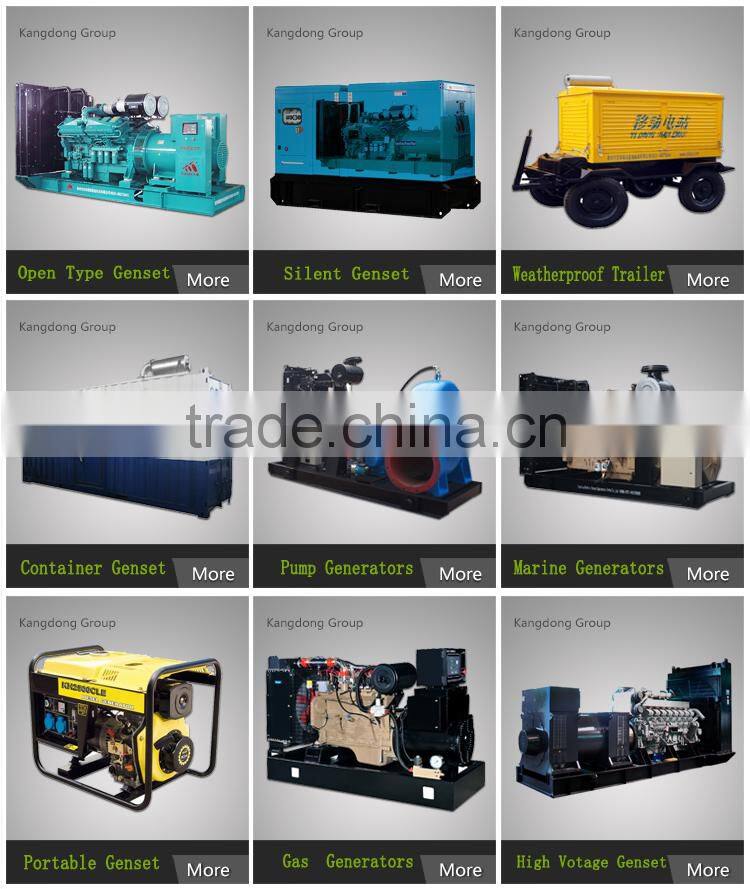

Our factory mainly produces and sells diesel gen-sets, inland diesel gen-sets from 3-3000 KVA, marine power emergent diesel gen-sets from 12-500KW and kinds of imported diesel gen-sets, movable power station, low-noise, multi-pieces connection, remote monitoring, gen-sets with ATS, and gas gen-sets. inculde Cumminse,Perkinse,volvo,MTU,shangchai, Stamford ,Leroy Somer, Mecc alte and so on famous brand.

Safety
Design, production and testing of the generator sets comply with EU CE safety standard;
Equipped with circuit breaker to avoid possible electric risk at re- startup when engine stops in emergency.
The controller has a historical operation recording function for troubleshooting and inspection.

Powerful Engines

Adopts world-famous engines,with low noise and low emission.
Rugged structure ensures lowest vibration.
Common rail system: (for some models) significantly lowers the combustion temperature, and also leads to cleaner exhaust.
For the turbocharged machines, the carbon dioxide (CO2) emission is reduced.

Control System

Control System
Micro-processor cored digital system.
Multiple languages, automatic control.
Connected with the mains through ATS, which can help realize automatic transfer between the mains and the generators. Also, multiple generators can be paralleled for bigger power needs.

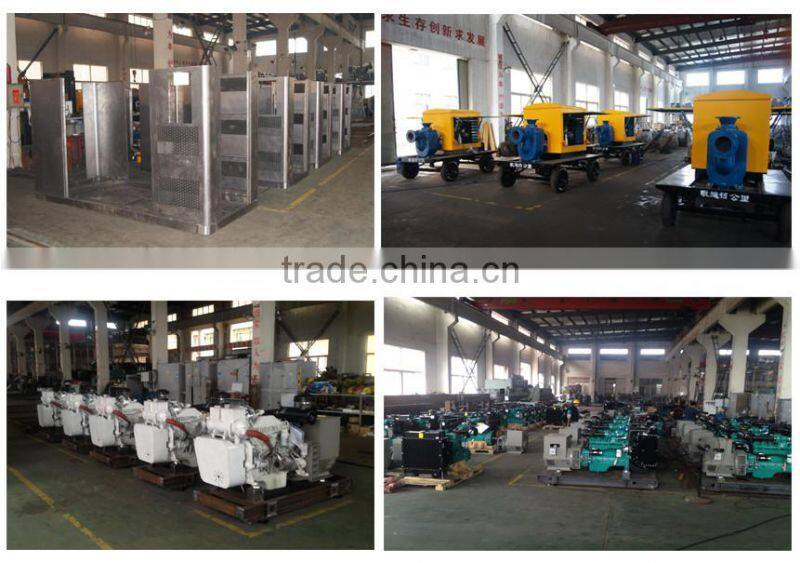

Our Factory Work Shop

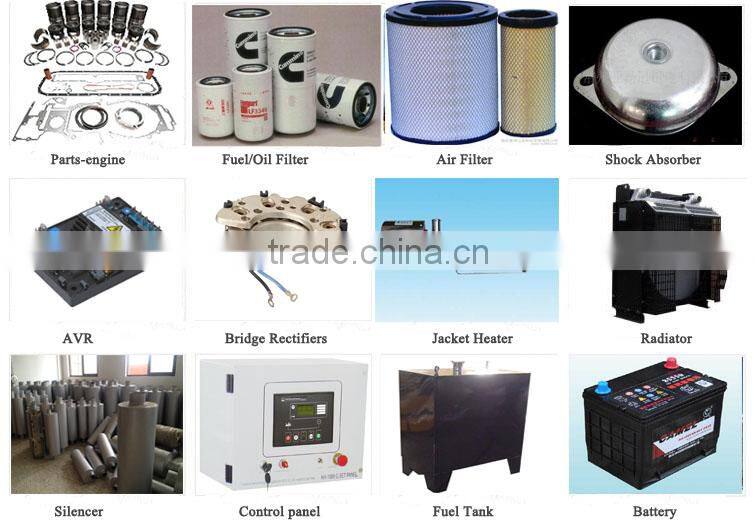

Available Spare Parts

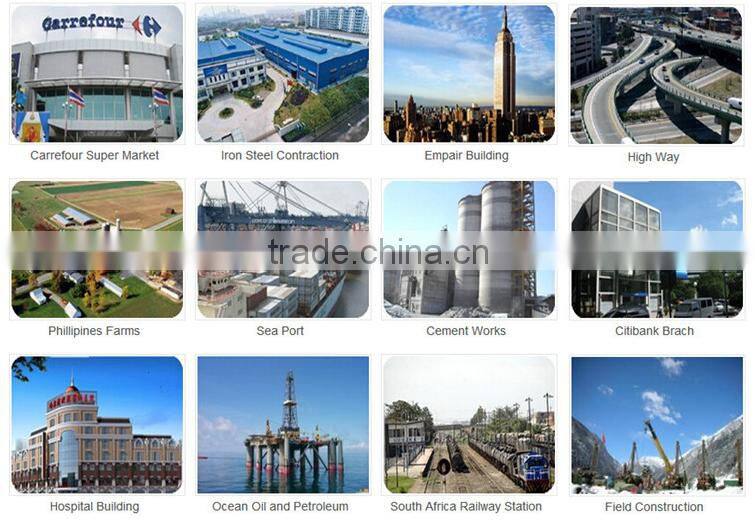

Application Field

Kangdong Service

Warranty

Warranty is according to our standard conditions:12 months or 1,000 running hours, subject to the earlier one (artificial damage to be an exception).

Service
1. Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.

2. Service quality assurance:
Our sale staffs are all experience and professional,we can provide the most proper system design and optimized equipment for the customers.

3. After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance, We have
distributors all over World that support after sale service.

4. Spare parts supply:
We provide all kinds of spare parts and technical support.

5. Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.

FAQ:

1.Q:What's the power range of your generator sets?

A:The main products are ranging from 5KW to 2500KW.

2.Q:How many types of the generator sets do you have?

A:Diesel,gasoline,natural gas,marine,water pump,high-voltage generator sets,etc.

3.Q:Where is your factory located?
A: Our factory is in Taizhou city, Jiangsu Province, China.

It's near Shanghai & Ningbo port.

4.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.

5.Q:How about quality control in your factory?
A:"Quality is the life".
We are always paying great attentions to
quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
