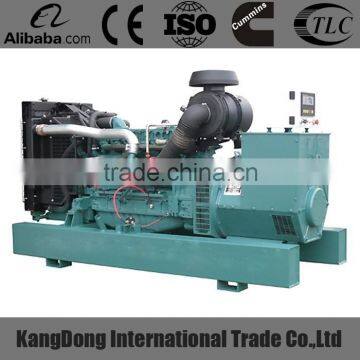

150kw volvo waterproof type CE approved diesel generator
| Genset Technical Data: | |||||||||
| Gensets model | KD-150GF | ||||||||
| Prime power | 150KW/188kVA | ||||||||
| Stangby power | 165KW | ||||||||
| Rated speed | 1500RPM | ||||||||
| Output frequency | 50Hz | ||||||||
| Power Factor | 0.8(lagging) | ||||||||
| Phase | 3 | ||||||||
| Rated voltage | 380/220V | ||||||||
| Dimensions(mm) (L×W×H) | 2600*1050*1500 | ||||||||
| Genset Weight(kg) | 1600 | ||||||||
| Prime Power: | |||||||||
| This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12. | |||||||||
| Standby power: | |||||||||
| This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted. | |||||||||
| Rated voltage : | |||||||||
| Available with customer requirements. | |||||||||
| Specification of diesel engine: | |||||||||
| Engine brand | Volvo | ||||||||
| Engine model | TAD732GE | ||||||||
| Number of Cylinders | 6 | ||||||||
| Cylinder arrangement | Vertical in-line | ||||||||
| Cycle | Four stroke | ||||||||
| Aspiration | Turbocharged ,Air/Air cooling | ||||||||
| Fuel System | Direct Injection Fuel System, Bosch Pump | ||||||||
| Bore×Stroke (mm×mm) | 108 x 130 | ||||||||
| Displacement (Liter) | 7.15 | ||||||||
| Compression Ratio | 18.0:1 | ||||||||
| Speed Governor | Heinzman Mechanical Governor | ||||||||
| Cooling System | Forced Water Cooling Cycle | ||||||||
| Speed Stability (%) | ≤1% | ||||||||
| Total lubrication system capacity (L) | 34 | ||||||||
| Fuel Consumption at 100% Load (g/kwh) | 213 | ||||||||
| Starting Method | DC24V Electrical starting | ||||||||
Jiangsu Kangdong International Trade Co., Ltd is a professional leading Company of diesel gensets in China, We mainly supply:
Engine: Alternator: Control System:
Cummins (USA ) Original and OEM stamford Deep sea
Deutz Engine(Germany) Marathon Harson
Volvo Engine(Sweden), Engga Smartgen
Doosan Engine(Korea) , ComAp
Perkins(UK) MTU(Germany)
Weichai Engine(China),
Shanghai Engine (China),
Yuchai Engine (China)
Warranty
warranty is according to our standard conditions:12 months or 1,000 running hours, subject to the earlier one (artificial damage to be an exception).
Service
1. Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2. Service quality assurance:
Our sale staffs are all experience and professional,we can provide the most proper system design and optimized equipment for the customers.
3. After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance, We have
distributors all over World that support after sale service.
4. Spare parts supply:
We provide all kinds of spare parts and technical support.
5. Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
A. Exporting plywood case for optional choose if needs packaging
B. Delivery Time Detail: within 10 days to 28 days (2 or 4 weeks)
1.Q:What's the power range of your generator sets?
A:The main products are ranging from 5KW to 2500KW.
2.Q:How many types of the generator sets do you have?
A:Diesel,gasoline,natural gas,marine,water pump,high-voltage generator sets,etc.
3.Q:Where is your factory located?
A: Our factory is in Taizhou city, Jiangsu Province, China.
It's near Shanghai & Ningbo port.
4.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
5.Q:How about quality control in your factory?
A:"Quality is the life".
We are always paying great attentions to
quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
