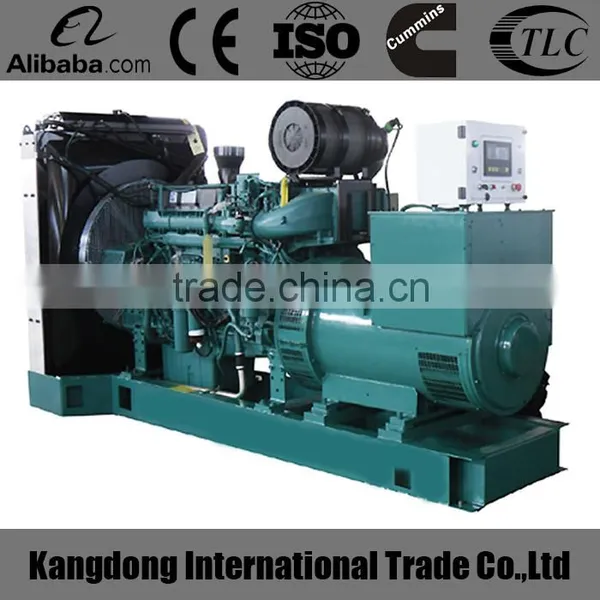

Standby 275KVA famous engine Volvo diesel generator set
KANGDONG Volvo series environment consciousness Gen Sets of its exhaust emission comply with EURO two or EURO three & EPA standards. It is powered by VOLVO PEATA electronic fuel injection diesel engine that was made by the global-famous Swedish VOLVO PENTA. VOLVO brand is established in 1927. For a long time, its strong brands are associated with its three core values: quality, safety and care for the environment. The VOLVO group subordinate's company VOLVO PENTA is absorbed in the production of industrial diesel engine, industrial vehicles and marine diesel engine products. It keeps ahead in the fields of six-cylinders engine and electronic fuel injection technique etc. The technical & services, the center of logistics of VOLVO PENTA in China, as well as kaihua locate in Zongsi Road,HaiLing Industrial Park.Taizhou of JiangSu province. The successful cooperation between kaihua and VOLVO PENTA is an apotheosis in the fields of diesel generating sets in the world.
| 1. Specification of genset | ||||||||
| Gensets model | KD-200GF | |||||||
| Prime power | 250KVA | |||||||
| Rated Voltage | 380/220V | |||||||
| Rated frequency(HZ) | 50 | |||||||
| Rated Speed | 1500rpm | |||||||
| Power Factor(COS) | 0.8(lagging) | |||||||
| Dimensions(mm) (L× W× H) | 2600x1120x1670 | |||||||
| Net Weight(kg) | 2700 | |||||||
| 2. Specification of diesel engine | ||||||||
| Engine brand | Volvo | |||||||
| Engine model | TAD734GE | |||||||
| Number of Cylinders | 6 | |||||||
| Cylinder arrangement | Vertical in-line | |||||||
| Cycle | Four stroke | |||||||
| Aspiration | Turbocharged and Water/Air cooling | |||||||
| Fuel System | PT type fuel pump, EFC | |||||||
| Bore× Stroke (mm× mm) | 108 x 130 | |||||||
| Displacement (Liter) | 7.15 | |||||||
| Compression Ratio | 17.0: 1 | |||||||
| Speed Governor | Electronic | |||||||
| Cooling System | Forced Water Cooling Cycle | |||||||
| Total lubrication system capacity (L) | 29 | |||||||
| Fuel Consumption at 100% Load (g/kwh) | 204 | |||||||
| Starting Method | DC24V electrical starting | |||||||
| 3. Specification of alternator | ||||||||
| Alternator brand | Stamford | |||||||
| Alternator model | UCI274K | |||||||
| Number of Phase | 3 | |||||||
| Connecting Type | 3 Phase and 4 Wires | |||||||
| Number of Bearing | 1 | |||||||
| Protection Grade | IP23 | |||||||
| Altitude | ≤ 1000m | |||||||
| Exciter Type | Brushless , Self-exciting, AVR automatic voltage regulating, 100% Copper winding wire | |||||||
| Insulation Class | H | |||||||
| Telephone Influence Factor (TIF) | ≤ 50 | |||||||
| THF | ≤ 2% | |||||||
| Voltage Regulation, Steady State | ≤ ± 1% | |||||||
| Transient State Voltage | ≤ -15%+20% | |||||||
