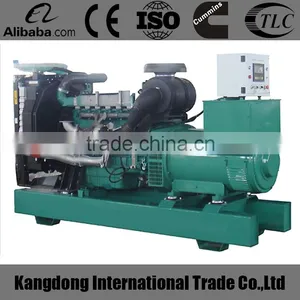

Technical parameters of 100KW VOLVO atmospheric water generator
Volvo diesel gen-sets is the environment-friendly units, it meets the emission standard EU2 or 3 and also the EPA environmental protection standard. VOLVO brand is established in 1927. For a long time, its strong brand is associated with its three core values: quality, safety and care for the environment,Volvo series has the features of nice cold-start performance, strong loading capacity, small volume, less oil consumption as well as long service time. . The VOLVO group subordinate’s company VOLVO PENTA is absorbed in the production of industrial diesel engines, industrial vehicles and marine diesel engine products. It keeps ahead in the field of six-cylinders engine and electronic fuel injection technique etc.

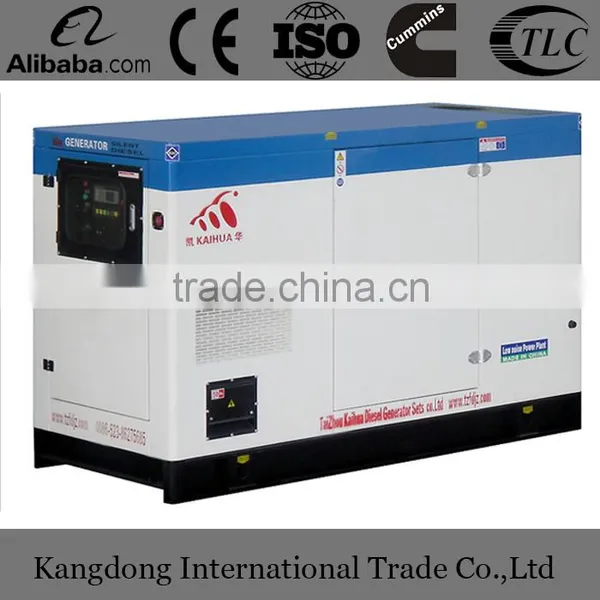

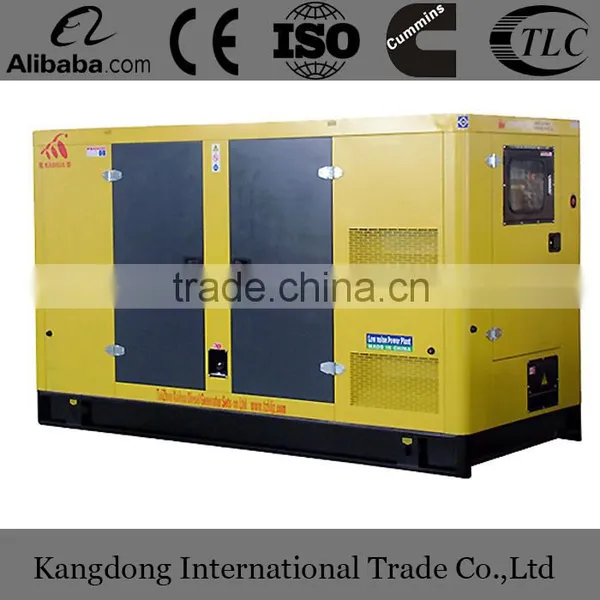

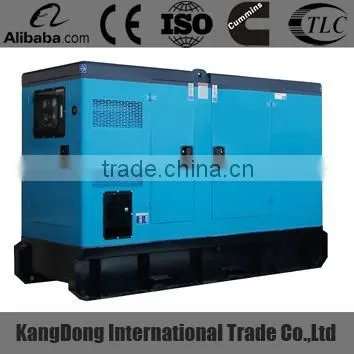

Soundproof/Silent Box:
1. Excellent ventilation;
2. Oil tank mounted on base frame for 12 Hours working;
3. Highly Corrosion Resistant construction;
4. Excellent Access for Maintenance;
5. Security and Safety.
Technical data | |
Genset Model |
KD-100GF |
Rated Voltage |
400/230V |
Frequency |
50/60Hz |
Power Factor |
0.8(lagging) |
The regulating rate of steady voltage |
≤±0.5% |
The regulating rate of instantaneous voltage |
≤-15%/ +20% |
The time of steady voltage |
≤1.5sec |
The waving rate of voltage |
≤1.0% |
The regulating rate of steady frequency |
≤3% |
The regulating rate of instantaneous frequency |
≤±10% |
The time of steady frequency |
3sec |
Dimension (L×W×H) (mm) |
2150*1050*1680 |
Genset weight (kg) |
1250 |
Diesel Engine | |
Brand |
Volvo |
Mode |
TAD532GE |
Number of Cylinde |
4 |
Rotating Speed |
1500/18000RPM |
Cycle |
Four stroke |
Type |
waste gas turbine boost,direct spurting type |
Bore×Stroke(mm) |
108*130 |
Displacement(L) |
4.76 |
Lubricating Capacity(L) |
18 |
Speed Governor |
Electrical |
Cooling System |
Water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
214g/kw.h |
Starting Method |
DC24V Electrical starting |
Alternator | |
Brand |
KANGDONG |
Model |
KD-series |
Number of Phase |
3 |
Connecting Type |
Three Phase and Four Lines |
Number of Bearing |
1 |
Grading Protection |
IP22 |
Altitude |
≤1000m |
Exciter Type |
Brushless (AVR automatic voltage regulating) |
Insulation Class |
H degree |
The components of the genset | |
(1) Volvo Diesel Engine; (2)Kaihua Alternator; (3) Control Panel | |
Control Panel | |
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection. | |
Note:
For better meet user's demands, the alternator is selectable, we have Stamford, Marathon, Kaihua, Engga and other famous brands
1, the above specifications for frequency of 50HZ, 1500rpm, 400/230V, power factor 0.8 (lag), three-phase four-wire diesel generator set, if need 60HZ, please contact us, we will send you the technical parameters.
2, the above products on the non-delivery of information as a unit, as technology continues to progress, I reserve the right to amend without notice.
