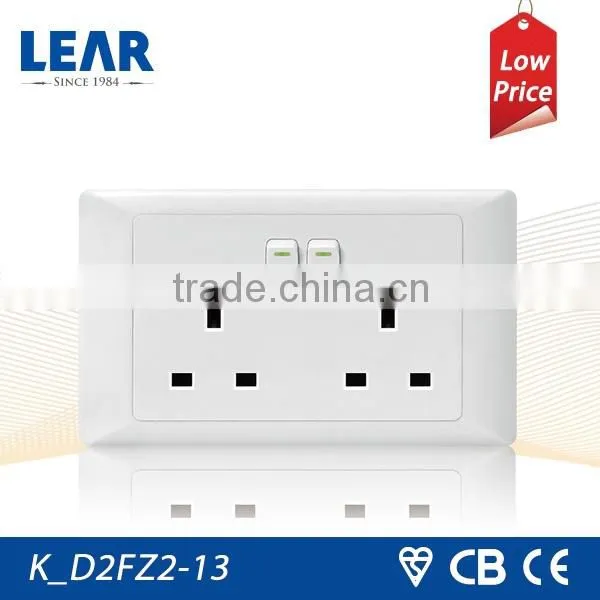

On sales S series uk double socket
- 3000 Piece / Pieces per Month
- Shanghai port
- T/T Credit Card
- Original GO SWITCH switch
- Original TOPWORX valve position feedback switch
- Original TOPWORX switch
- New arrival curved glass touch panel switch ZigBee aluminum frame Tuya smart home light wall switch
- Xiaomi Mijia Smart Light Sensor Zigbee 3.0 Intelligent Linkage Waterproof Work With Smart Multimode Gateway mi home
- Xiaomi Mijia Smart Switch Wall Switch Single & Dual Open BT Remoto Control Voice Control Smart Light for Mi Home APP
Product Details
Brand Name: | LEAR | Model Number: | S_D2FZ2-13 | Size: | 86mm*86mm |
Max. Current: | 13AX | Max. Voltage: | 250V AC | Mechanical Life: | 40000 times |
Product Description
Characteristics
Simple series switches&sockets
We in order to help our customers to quickly get a larger market, we specially designed S series electri switch and socket, make it has low price, but the quality of the products is still very good, the life of the switch is still more than 40000 times
|
Main | |
Range of product | Simple series |
Product code | S_D2FZ2-13 |
Product name | S series uk double socket |
Product or component type | Socket-outlet |
Device presentation | Complete mechanism |
Outlet standard | Brithis standard |
Complementary | |
Outlet poles configuration | 2P+E |
Pilot light | None |
Number of gangs | 2 gang |
Colour tint | White,Silver ,Champagne,Off-white color |
Projecting depth | 7 mm |
Device mounting | Flush |
Mounting support | Wall mounted |
Fixing mode | By screw M3.5 |
Fixing center | 120.6 mm |
Embedding depth | >= 35 mm |
Rated current | 13 AX |
Rated operational voltage | 250 V AC |
Network frequency | 50-60HZ |
Contacts material | Brass and phosphor bronze |
Connections - terminals | Brass pillar terminal |
Terminal identifier
| L N E |
Tightening torque | 0.4 N.m |
Clamping connection capacity | 2 x 4 mm² 3 x 2.5 mm² |
Width | 146mm |
Height | 86mm |
Material | |
Front-plate | Polycarbonate or ABS |
Back-frame | Polycarbonate or ABS |
Back-base | Polycarbonate or ABS |
Switch contacts material | Silver |
Conductive parts | Brass and phosphor bronze |
Environment | |
Standards
| IEC 60884 MS 589 SS 145 BS 1363 |
Ambient air temperature for operation | -5...40 °C |
Relative humidity | 0...95 % |
Environmental characteristic | Indoor use |
Contractual warranty | |
Period | 12 YEARS |
Packaging&Shipping
Quantity per Carton | 5PCS/Box,50PCS/Carton |
Carton Dimension | 50.5x33x22.8cm |
G.W/Carton | |
N.W/Carton |
