Home > Electrical & Electronics > Switch > Wall Switch > On Sales S Series 1 Gang Switched 2 Pins Plug Socket Light

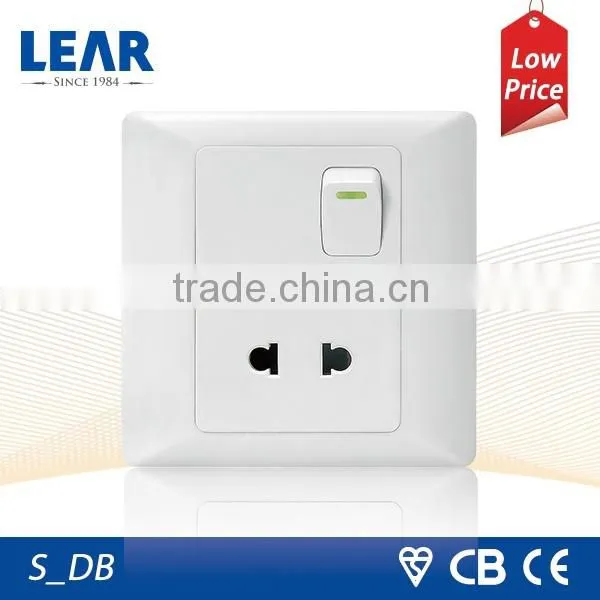

On Sales S Series 1 Gang Switched 2 Pins Plug Socket Light
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LEAR
Model Number:
S_DB
Size:
86mm*86mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
On Sales S Series High Quality Flush Type Wall SocketNegotiableMOQ: 1000 Pieces -
On Sales S Series 2 Gang 4 Pins Electric Sockets PlugsNegotiableMOQ: 1000 Pieces
-
On Sales S Series Two Gang British SocketNegotiableMOQ: 1000 Pieces
-
On Sales S Series Two Pin SwitchNegotiableMOQ: 1000 Pieces
-
On Sales S Series Wall Socket 220vNegotiableMOQ: 1000 Pieces
Brand Name
LEAR
Model Number
S_DB
Size
86mm*86mm
Max. Current
10AX
Max. Voltage
250V AC
Mechanical Life
40000 times
Characteristics
|
Simple series switches&sockets
We in order to help our customers to quickly get a larger market, we specially designed S series electri switch and socket, make it has low price, but the quality of the products is still very good, the life of the switch is still more than 40000 times
|
Main | |
Range of product |
Simple series |
| Product code | S_DB |
| Product name |
S series 1 gang switched 2 pins plug socket light |
| Product or component type | Socket-outlet |
| Device presentation | Complete mechanism |
| Outlet standard | Universal 2 pins socket |
| Complementary | |
| Outlet poles configuration | 2P |
| Pilot light |
None |
| Number of gangs | 1 gang |
| Colour tint | White,Silver ,Champagne,Off-white color |
| Projecting depth | 7 mm |
| Device mounting | Flush |
| Mounting support | Wall mounted |
| Fixing mode | By screw M3.5 |
| Fixing center | 60.3 mm |
| Embedding depth | >= 35 mm |
| Rated current | 10 AX |
| Rated operational voltage | 250 V AC |
| Network frequency | 50-60HZ |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | Brass pillar terminal |
|
Terminal identifier
|
L N |
| Tightening torque |
0.4 N.m |
| Clamping connection capacity | 2 x 4 mm² 3 x 2.5 mm² |
| Width | 86mm |
| Height | 86mm |
|
Material | |
| Front-plate | Polycarbonate or ABS |
| Back-frame | Polycarbonate or ABS |
| Back-base | Polycarbonate or ABS |
| Switch contacts material |
Silver |
| Conductive parts | Brass and phosphor bronze |
| Environment | |
|
Standards
|
IEC 60884 |
| Ambient air temperature for operation | -5...40 °C |
| Relative humidity | 0...95 % |
| Environmental characteristic |
Indoor use |
| Contractual warranty | |
| Period |
12 YEARS |
Packaging & Shipping
Packaging&Shipping
| Quantity per Carton | 10PCS/Box,100PCS/Carton |
| Carton Dimension | 50.5x33x22.8cm |
| G.W/Carton | |
| N.W/Carton |
