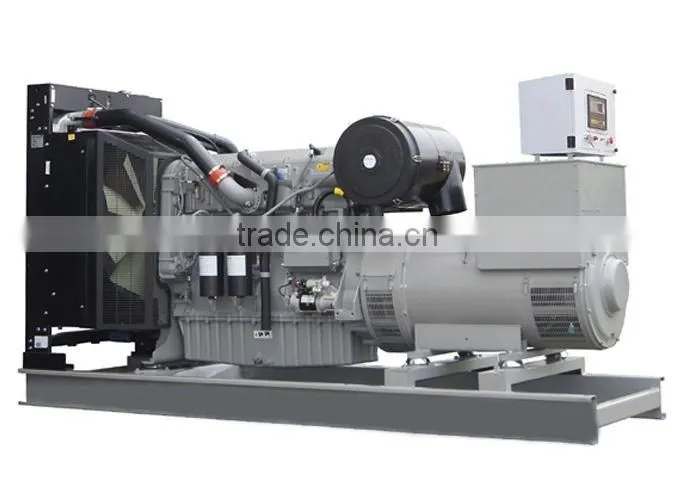

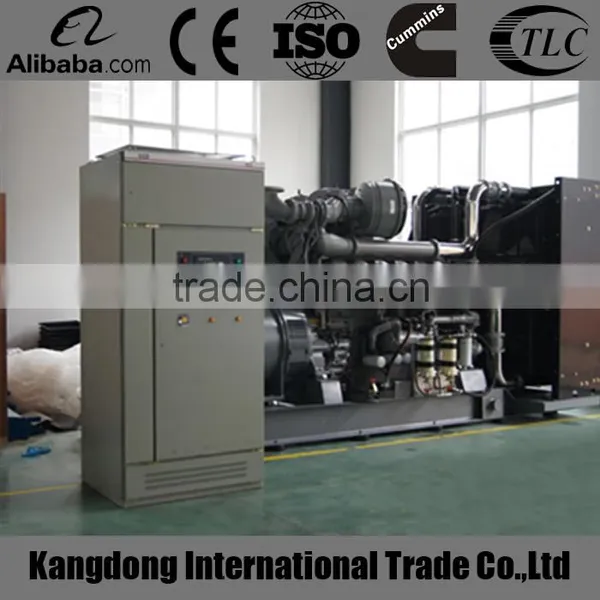

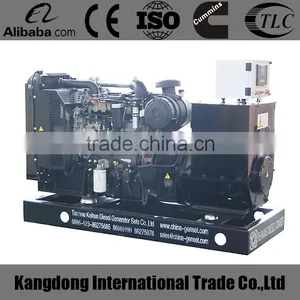

Generator 500kva water cooled diesel open generators diesel price
The main parameters of the set | |
The model of the unit: |
KD-400GF |
Power: |
500KVA/400KW |
Rated voltage: |
400V |
Rated current: |
720A |
Rated frequency: |
50Hz |
The factor of rated power |
COS=0.8lagging |
The regulating rate of steady voltage: |
≤1% |
The regulating rate of instantaneous voltage: |
-15%~ +20% |
The time of steady voltage: |
≤1.5sec |
The waving rate of voltage: |
≤1.0% |
The regulating rate of steady frequency: |
≤3% |
The regulating rate of instantaneous frequency: |
≤±10% |
The time of steady frequency: |
3sec |
The waving rate of frequency: |
≤1% |
The waste of fuel with full load: |
≤228g/kwh |
Dimension (open type) (L×W×H) (mm): |
1350*530*1000 |
Package(plywood case) dimension (open type) (L×W×H)(mm) |
4450*1650*2290 |
Net weight (open type) (kg): |
5000 |
Gross weight (open type) (kg): |
5413 |
The main parameters of the diesel engine | |
Brand: |
PERKINS |
Model: |
2506A-E15TAG2 |
Type: |
four strokes, waste gas turbine boost,direct spurting type |
Cylinder: |
6 vertical cylinders |
Cooling way: |
water cooling |
Rotating speed: |
1500r/min |
The regulation of rotating speed: |
Electric speed regulator |
Starting way: |
DC24V starting with electricity |
The main parameters of the generator | |
Brand: |
Stamford (British wholly foreign-owned enterprise) |
Model : |
|
Type: |
Brushless ,Self-excite, AVR automatic voltage regulating |
The connecting way of the phase: |
three phases four lines |
Insulation degree: |
H degree |
Enclosure degree: |
IP21-IP23 |

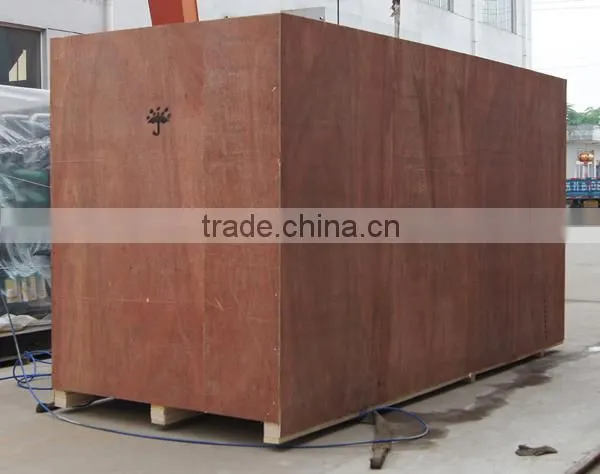

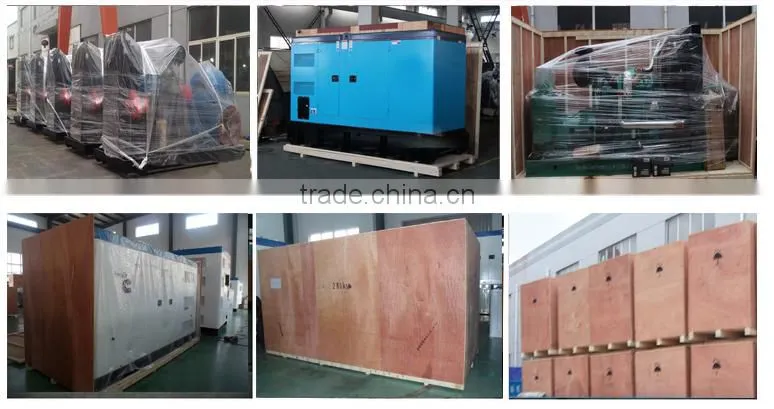

PE Plastic wrapped or plywood cases for option
Warranty
Warranty is according to our standard conditions:12 months or 1,000 running hours, subject to the earlier one (artificial damage to be an exception).
Service
1. Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2. Service quality assurance:
Our sale staffs are all experience and professional,we can provide the most proper system design and optimized equipment for the customers.
3. After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance, We have
distributors all over World that support after sale service.

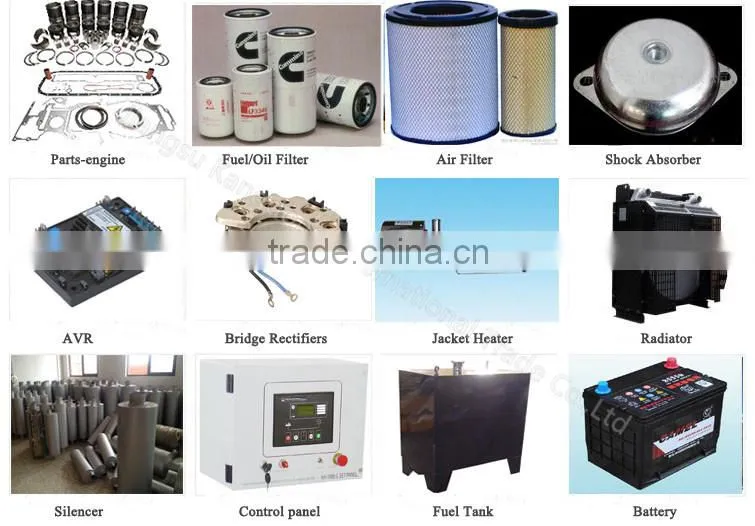

4. Spare parts supply:
We provide all kinds of spare parts and technical support.
5. Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
FAQ:
1.Q:What's the power range of your generator sets?
A:The main products are ranging from 5KW to 2500KW.
2.Q:How many types of the generator sets do you have?
A:Diesel,gasoline,natural gas,marine,water pump,high-voltage generator sets,etc.
3.Q:Where is your factory located?
A: Our factory is in Taizhou city, Jiangsu Province, China.
It's near Shanghai & Ningbo port.
4.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
5.Q:How about quality control in your factory?
A:"Quality is the life".
We are always paying great attentions to
quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
