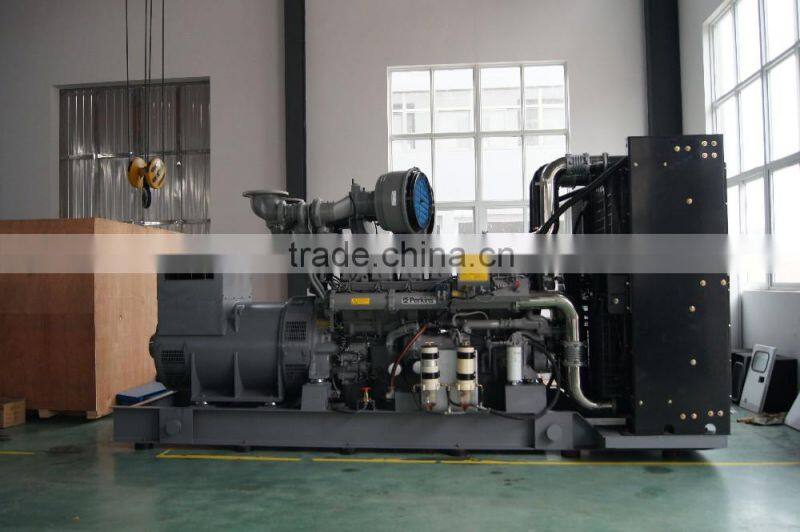

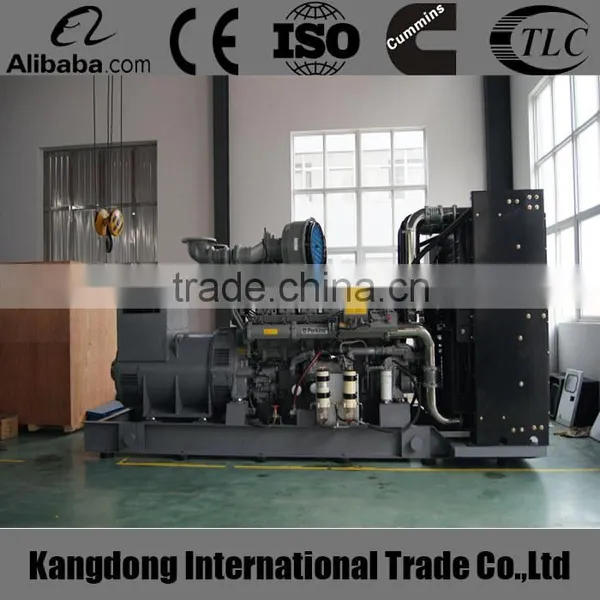

original engine 4008TAG2A diesel power generator price for sale
British (also called Rolls-Royce) Engine Co.,Ltd is one of the largest engine manufacturers in the world. Perkins is complete in specifications & types, has compact form, reliable performance, convenient maintenance. And the less gas pollution is up to the EU Environmental emission standards.
| 1. Specification of genset | ||||||||
| Genset model | KD-800GF | |||||||
| Genset power | 1000KVA | |||||||
| Rated voltage | 400/230V | |||||||
| Genset current | 1440A | |||||||
| Rated frequency(HZ) | 50 | |||||||
| Rated speed | 1500rpm | |||||||
| Power factor | 0.8(lagging) | |||||||
| Dimensions(mm) (L×W×H) | 4700*2045*2475 | |||||||
| Genset Weight(kg) | 7600 | |||||||
| 2. Specification of diesel engine | ||||||||
| Engine model | 4008TAG2A | |||||||
| Number of Cylinders | 8 | |||||||
| Cylinder arrangement | Vertical in-line | |||||||
| Cycle | Four stroke | |||||||
| Aspiration | Turbocharged aftercooled | |||||||
| Fuel System | Direct injection | |||||||
| Bore×Stroke (mm×mm) | 105 x 135 | |||||||
| Displacement (Liter) | 7.01 | |||||||
| Compression Ratio | 16.0:1 | |||||||
| Max. Standby Power at Rated RPM | 179.8KW | |||||||
| Speed Governor | Mechanical | |||||||
| Cooling System | Water cooled | |||||||
| Fuel Consumption at 100% Load | 203g/kwh | |||||||
| Starting Method | DC24V Electrical starting | |||||||
| 3. Specification of alternator | ||||||||
| Alternator brand | Stamford | |||||||
| Alternator model | UCI274G | |||||||
| Number of Phase | 3 | |||||||
| Connecting Type | 3 Phase and 4 Wires | |||||||
| Number of Bearing | 1 | |||||||
| Protection Grade | IP23 | |||||||
| Altitude | ≤1000m | |||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | |||||||
| Insulation Class | H | |||||||
| Telephone Influence Factor (TIF) | ≤50 | |||||||
| THF | ≤2% | |||||||
| Voltage Regulation, Steady State | ≤±1% | |||||||
| Transient State Voltage | ≤-15%~+20% | |||||||
| 4. Specification of control Panel(with Smartgen HGM6110K controller) | ||||||||
| The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function. | ||||||||
| The features of HGM6110K controller: | ||||||||
| HGM6110K series Genset controller integrating digital, intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarm protective. The controller uses LCD display, optional Chinese, English, Spanish and Russian display interface with Operation easy and reliable. | ||||||||
1.Q:What's the power range of your generator sets?
A:The main products are ranging from 5KW to 2500KW.
2.Q:How many types of the generator sets do you have?
A:Diesel,gasoline,natural gas,marine,water pump,high-voltage generator sets,etc.
3.Q:Where is your factory located?
A: Our factory is in Taizhou city, Jiangsu Province, China.
It's near Shanghai & Ningbo port.
4.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
5.Q:How about quality control in your factory?
A:"Quality is the life".
We are always paying great attentions to
quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
FAQ:
1.Q:What's the power range of your generator sets?
A:The main products are ranging from 5KW to 2500KW.
2.Q:How many types of the generator sets do you have?
A:Diesel,gasoline,natural gas,marine,water pump,high-voltage generator sets,etc.
3.Q:Where is your factory located?
A: Our factory is in Taizhou city, Jiangsu Province, China.
It's near Shanghai & Ningbo port.
4.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
5.Q:How about quality control in your factory?
A:"Quality is the life".
We are always paying great attentions to
quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
