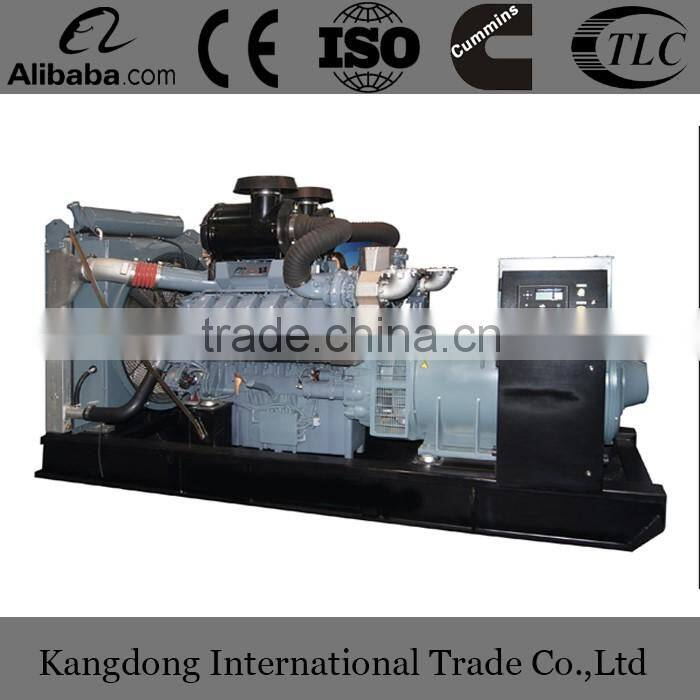

500kw Man diesel generator powered by scania
the advantage of our genset:
1.high quality reliable and complete power unit.
pact design.
3.easy start and maintenance possibility.
4.our generating set is subject to a comprehensive test program which includes full load testing checking and provision of all contral and safety shut down functions testing.
Technical data | |
Genset Model |
KH-500GF |
Genset Output Power |
500KW |
Rated Voltage |
400/230V |
Frequency |
50Hz |
Power Factor |
0.8(lagging) |
Dimension (L×W×H) (mm) |
3140*1380*1995 |
Net weight (kg) |
3150 |
Diesel Engine | |
Brand |
Man |
Model |
D2840LE203 |
Engine Structure |
In line 10cylinder, 4 stroke, Turbo, Air/Air Cooling |
Rotating Speed |
1500r/min |
Engine Cooling Method |
Radiator for ambient temp 40OC, belt driven cooling fan with cover |
Governor System |
Precise electrical governor system |
Starting Method |
24V DC, with Silicon commutating charging motor |
Engine Filter System |
Dry type air filter, fuel filter, oil filter, coolant filter |
Displacement(L) |
8.87 |
Compression Ratio |
15.0:1 |
Bore×Stroke(mm) |
127×140 |
100% load fuel consumption (L/h) |
50 |
Lube capacity(L) |
37 |
Alternator | |
Brand |
Kaijieli(China-French joint venture Leory Somer technology) |
Model |
314BC |
Excite Type |
Brushless ,Self-exciting, AVR automatic voltage regulating |
Connecting Type |
3 Phase and 4 Wires |
Steady Frequency Change |
0~5% |
No load voltage |
≥95%~105% |
Steady voltage |
≤±1% |
Insulation degree |
H degree |
Enclosure degree |
IP21 |
The components of the genset | |
(1) Diesel engine; (2) Generator; (3) Control panel | |
The Accessories | |
Wave pipe , curved pipe , muffler , accumulator and the connecting lines , shock-absorbing spacer , and data . | |
Control Panel | |
The control panel is standard control panel with AMF, with the display of voltage,current, frequency, water temperature, oil pressure. And the protection functions of charge fail, fail to start, low oil pressure, high temperature, over speed and emergency stop. | |
PE Plastic wrapped or plywood cases for option
Warranty:
Jangsu KangDong have guarantee for one year or 1000 hours whichever reaches first from
shipment date.
After-Sales Service:
During the guarantee period, easy-damage spare parts of alternator caused by the quality of our production or raw material will be
provided for free .
Technical Support:
Generator operation manual is provided by Jangsu KangDong , moreover, we supply all kinds of
spare parts for maintenance.
1.Q:Where is your factory located?
A: Our factory is located in No.21.Tai’an Road,HaiLing Industrial Park,Taizhou City,Jiangsu
Province,China.
It's near Shanghai port. It's about 2hour from pudong airport by car
2.Q:How many types of the generator sets do you have?
A:Diesel,gasoline,natural gas,marine,water pump,high-voltage generator sets,etc.
3.Q:What's the power range of your generator sets?
A:The main products are ranging from 3KW to 3000KW.
4.What's the delivery time?
Delivery within 7 days after deposit confirmed.
5.Q:How about quality control in your factory?
A:We are always paying great attentions to quality controlling
from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000
