Specifications
1. Good quality, competitive price2. Low operation cost, high profit
3. Easy to operate and maintian
4. Engery-saving
6. Service OEM Offered
7. ISO & CE certificate

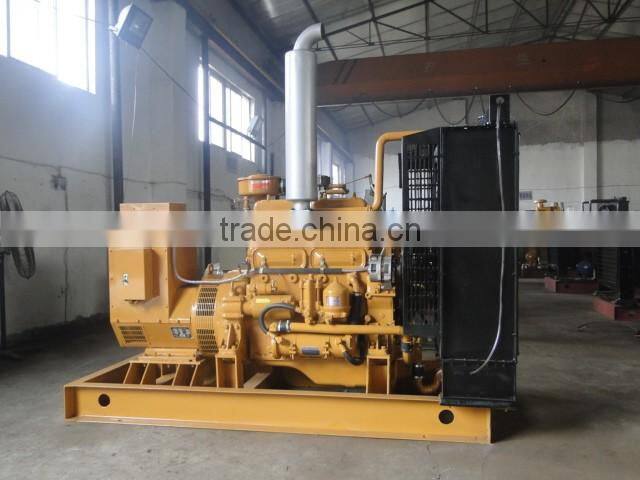

Good quality! Natural Gas Generator Set WITH FAVORABLE PRICE CHP(50kw)
Ignition system: American ALTRONIC, including:magneto, high-tension coil,
Starting system: DC24V electric motor.
Mixer: IMPCO
Sparking plug: STITT
scope of application: natural gas
This 50kw natural gas genset has the features of accurate voltage regulating, good dynamic performance, less voltage waveform distortion, high efficiency, compact structure, easy to maintain, low speed, reliable and long life operation and cost-effective.
| Parameter of Natural Gas Generator Set | |
| Model Number (Engine Type) | LHNG50 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 40KW/50KW |
| Rated Speed | 1500/1800RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11mj/kw.h |
| Lubricant consumption | ≤1.0g/kw.h |
| Engine Capacity | 6.49L |
| Cylinder Number | 6 |
| Cylinder Bore | 105mm |
| Stroke | 125mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Chinese Stamford |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 2300x1000x1480mm |
| 1349kg | 1350kg |

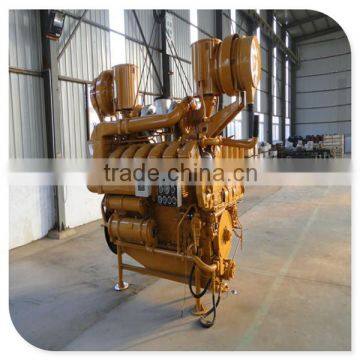

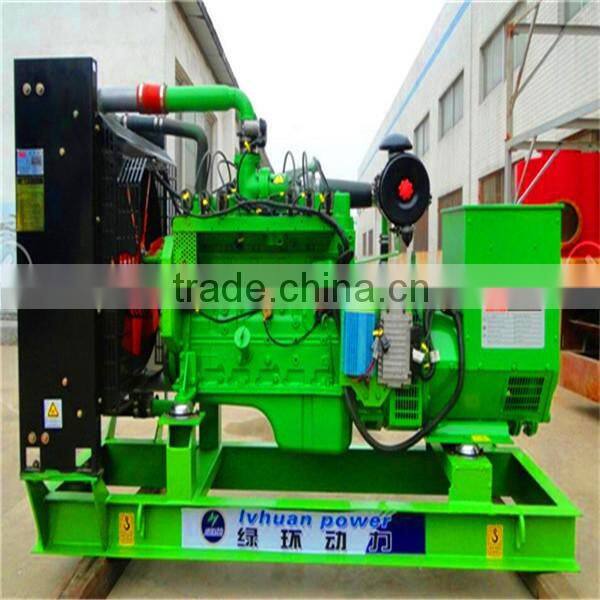

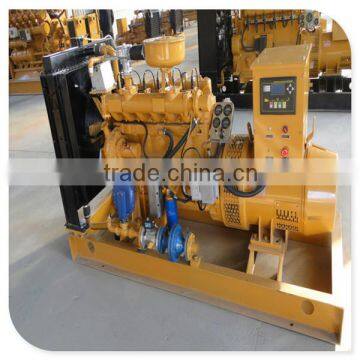

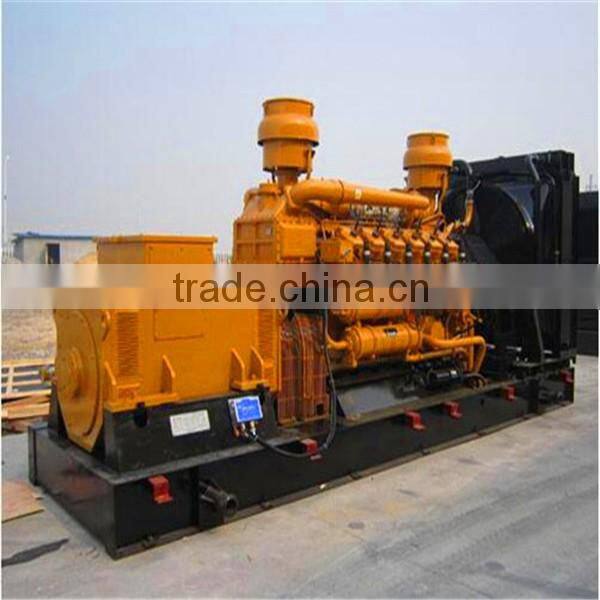

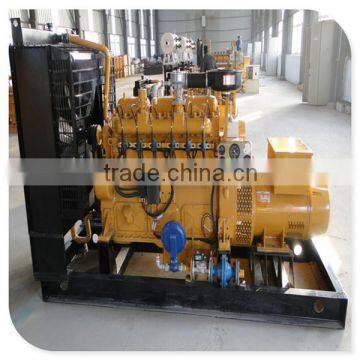

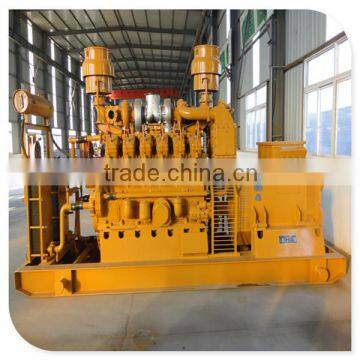

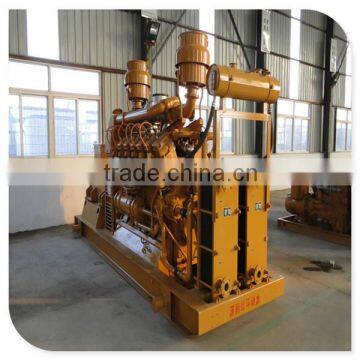

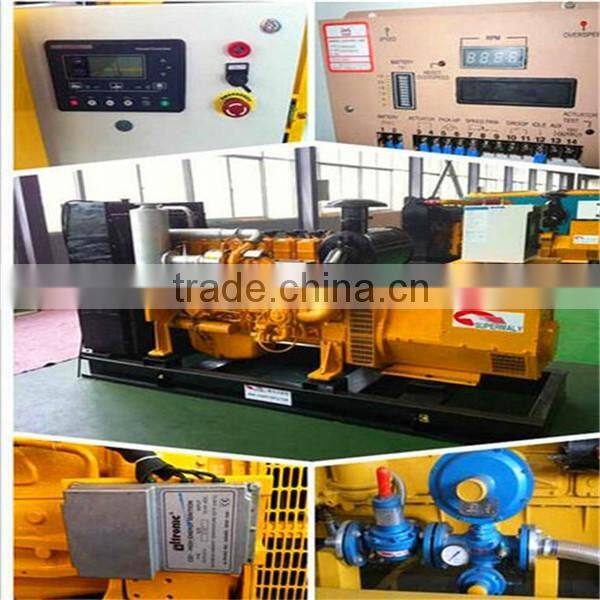

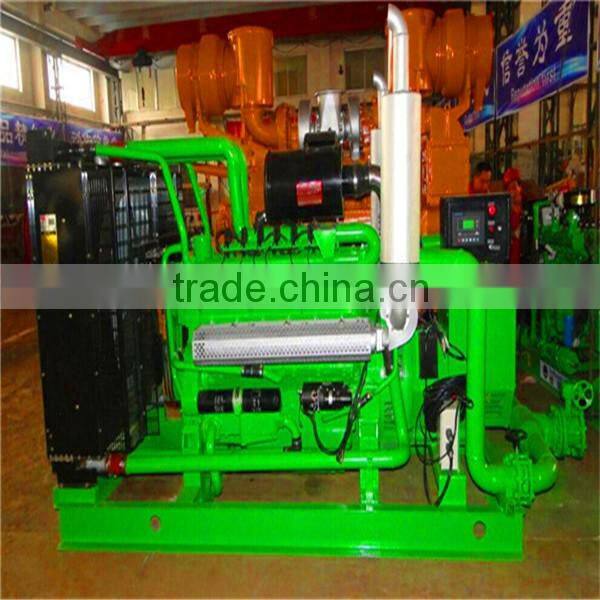

Pictures:
Our company overview:
Our company technology advantage:
1. Enalbing high-, medium-and low-voltage output, which lowers the initial investment and operation cost.
2. Continuous and stable rated can be put out with assurance of the great cylinder diameter.
3. Low-speed rotation lengthens the service life of the engine sets.
4. The unsupercharged sets with natural aspiration are suitable for a wide range of gas and have a low error rate.
5. The in-line structure simplifiers the layout of the engines and facilitates maintenance.
6. There are several defense lines to guarantee safe and efficient use of fuel gas.
7 . The surplus heat is recycled to realize the utility of cogeneration.
8 . The computerized monitoring management system enables online monitoring and automatic control.
Visitors form oversea:
pitures:
Our Services :
1.Pre-sale service:
A.Our engineers are available for onsite prospect before installation free to charge.
B. Foundation drawing and detailed Dimension free form us.
2.In-sale service:
A. Onsite overall guide installation,operation and maintenance training .
B. Assistance and instruction of trial running.
3.After-sale service:
A.Our every engineers are in charge of different area,we will response periodically and support you
technical service free of charge,
B.For the quality problem, we will service for you free of charge during the guarantee period.
C.One year guarantee period and lifetime service.
D.we solve quality problem in time when genset doesn’t work,We insure to help our clients to gain
4.Spare parts service:
A.All spares parts on our gensets supplied by us.
B. Free spare parts together with genset when shipping.
FAQ:
1.How to choose the right model?
A: It depends on continuous output power, Voltage, Frequency and fuel type. Please tell me what fuel (natural gas, biogas, biomass gas,wood syngas, methane,coal gas) or raw material(like wood, grass, nutshell and so on) The right model of generator will be recommend soon.
Me and our engineers are always available at your service.
2.What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce 1.5-3.0kw/h power. The capacity depends on gas energy(Kcal). E.g 1.0 Cubic meter natural gas produce about 3.0-4.0kw/h
3.What is the overhaul?
A: About 30000 working hours. A week is enough to finish. We offer manual for weekly, monthly and overhaul maintenance.
4. What is the warranty?
A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. What's more, a set of spare parts will be shipped together with generator set free of charge.
5. How is the after sale service and maintenance?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
6. What products we offer?
Biomass gasifier,Biomass/syngas generator,biogas generator,Natural gas(CNG,LNG) / methane generator,Coal gas generator,Diesel generator.
Generators can parallel together to form large power, E.g. 5 sets 400kw biomass generator form 2000kw biomass generator system.
if you are interested in our products, please contact me!
