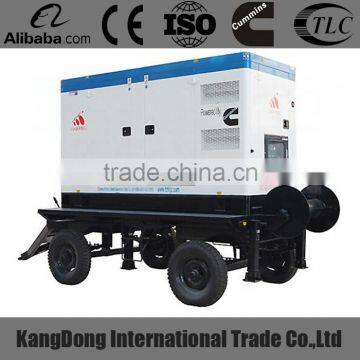

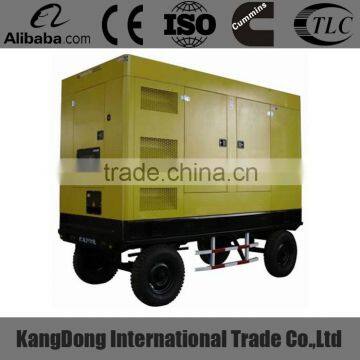

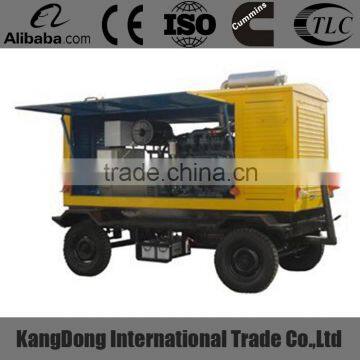

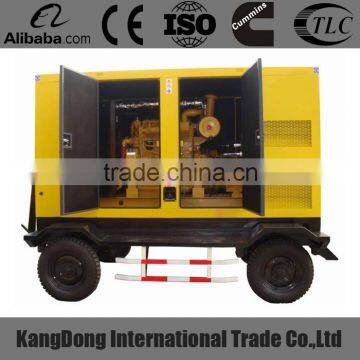

30kW 4BT3.9-G1 Mobile Silent Type Diesel Generator Sets/Gensets
US$ 7,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KANGDONG
Model Number:
KD-30GF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Deutz 30kW Mobile Type Diesel Generator Sets China AssemabledUS$ 7,000 - 7,500MOQ: 1 Set -
CE APPROVED Trailer/mobile Diesel GeneratorNegotiableMOQ: 1 Set
-
Mobile Type 450kW China Diesel Generators/Gensets Powered By Korea Doosan EngineNegotiableMOQ: 1 Set
-
ISO 9001, CE APPROVED Factory Price Supply Mobile Type Trailer Type Generator GOOD PRICE HIGH QUALITY IMPORTED ENGINEUS$ 10,400 - 10,900MOQ: 1 Set
-
China Assembled Doosan Daewoo 450kW Mobile Type Diesel Generator Set Quality ChoiceNegotiableMOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
KANGDONG
Model Number
KD-30GF
Output Type
AC Three Phase
Speed
1500RPM
Frequency
50Hz
Rated Power
30kW
Rated Voltage
220/380V
Rated Current
54A
30kW 4BT3.9-G1 Mobile Type Diesel Generator Sets/Gensets
Product Description
| 1. Specification of genset | |||||||
| Gensets Model | KD-30GF | ||||||
| Prime Power(KW) | 30(37.5KVA) | ||||||
| Standby Power(KW) | 33(41.25KVA) | ||||||
| Rated Voltage(V) | 220 | ||||||
| Rated Current(A) | 54 | ||||||
| Rated Frequency(HZ) | 50 | ||||||
| Rated Speed (rpm) | 1500 | ||||||
| Power Factor(COS) | 0.8(lagging) | ||||||
| Prime Power(PRP):Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97;A 10% overload capability is available for a period of 1 hour within a 12-hour of operation. | |||||||
| Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating. | |||||||
| 2. Specification of diesel engine | |||||||
| Engine brand | Kaihua | ||||||
| Engine model | 4BT3.9-G1 | ||||||
| Number of Cylinders | 4 | ||||||
| Cylinder arrangement | Vertical in-line | ||||||
| Cycle | Four stroke | ||||||
| Aspiration | Naturally aspirated | ||||||
| Fuel System | A model fuel pump | ||||||
| Bore×Stroke (mm×mm) | 102x120 | ||||||
| Displacement (Liter) | 3.9 | ||||||
| Compression Ratio | 16.5:1 | ||||||
| Speed Governor | Mechanical | ||||||
| Cooling System | Forced Water Cooling Cycle | ||||||
| Total lubrication system capacity (L) | 11 | ||||||
| Fuel Consumption at 100% Load (g/Kw.h) | 210 | ||||||
| Starting Method | DC24V electrical starting | ||||||
| 3. Specification of alternator | |||||||
| Alternator brand | Leroy Somer | ||||||
| Orgin | Fujian | ||||||
| Alternator model | LSAP43C | ||||||
| Number of Phase | 3 | ||||||
| Connecting Type | 3 Phase and 4 Wires | ||||||
| Number of Bearing | 1 | ||||||
| Protection Grade | IP23 | ||||||
| Altitude | ≤1000m | ||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | ||||||
| Insulation Class | H | ||||||
| Telephone Influence Factor (TIF) | ≤50 | ||||||
| THF | ≤2% | ||||||
| Voltage Regulation, Steady State | ≤±1% | ||||||
| Transient State Voltage | ≤-15%~+20% | ||||||
