Famous Engine Coal Gas Generating Set
1. Company Introduction
1) manufacturer for10 years
2) Capacity: 10-1000KW
3) Starff over 260 employees
4) All kinds of gas generator set
2.Product Advantage
- High power and maximum efficiency
- Low operating costs as a result of low levels of lubricant and fuel consumption
- Low emissions due to state-of-the-art combustion technologies
- Low space requirement due to compact design
- Long service life resulting from application-specific design
-Multi-option of control panel
3.Parameters of 500kw biomass gas generator set
| Model Number (Engine Type) | LHCG500 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 400KW/500KW |
| Rated Speed | 1000/1200RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11mj/kw.h |
| Lubricant Consumption | ≤1.0g/kw.h |
| Engine Capacity | 71.45 L |
| Cylinder Number | 12-V |
| Cylinder Bore | 190mm |
| Stroke | 210mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Siemens |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 6200x2100x2800mm |
| Weight | 12500kg |

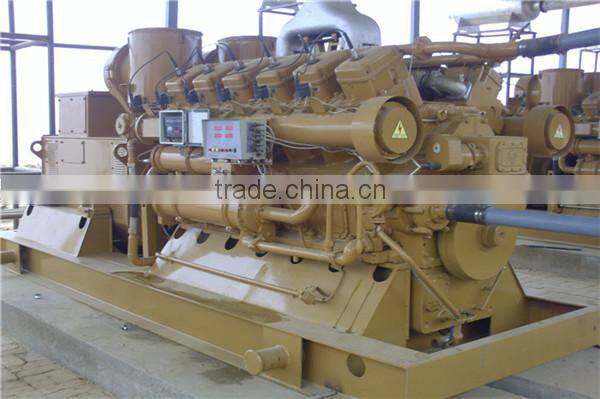

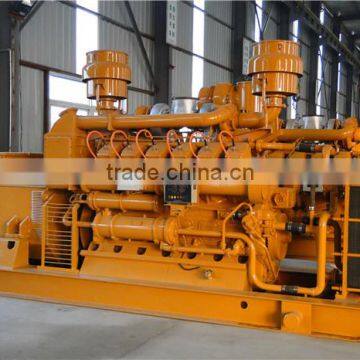

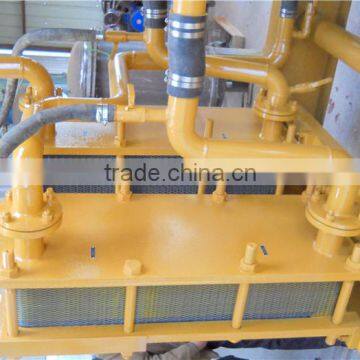

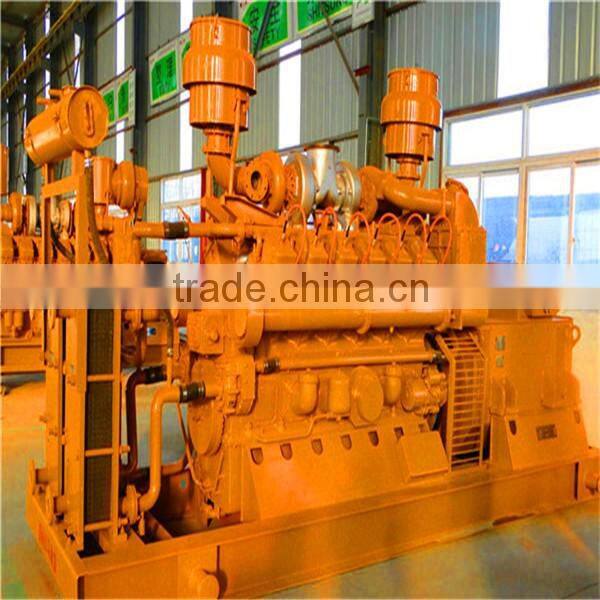

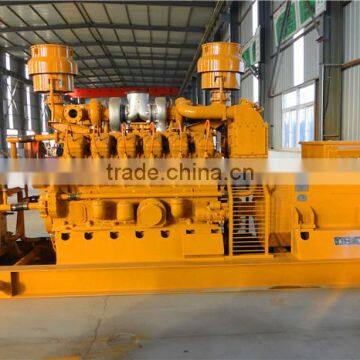

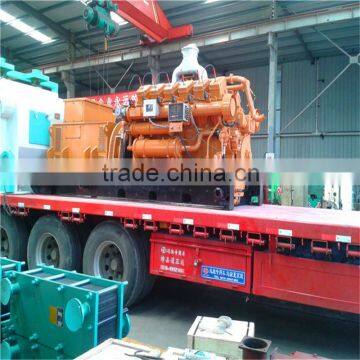

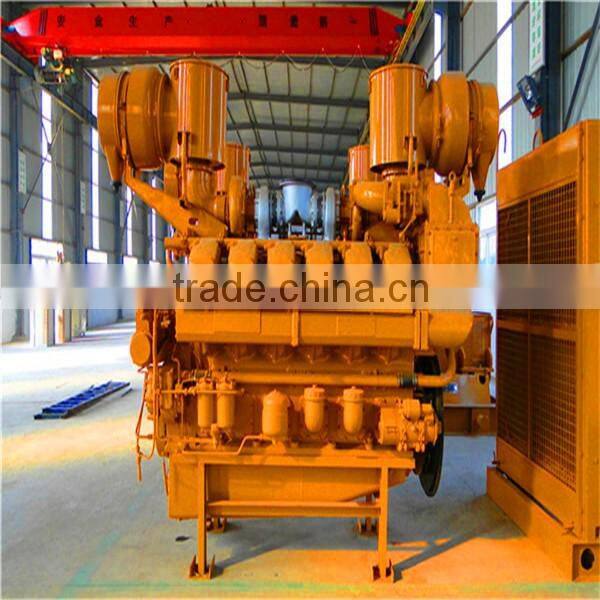

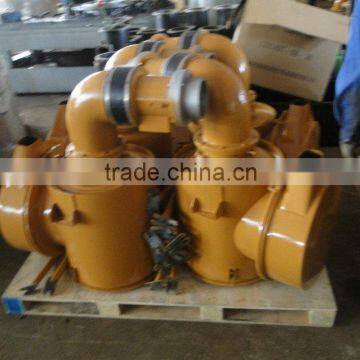

4.Our Product Picture

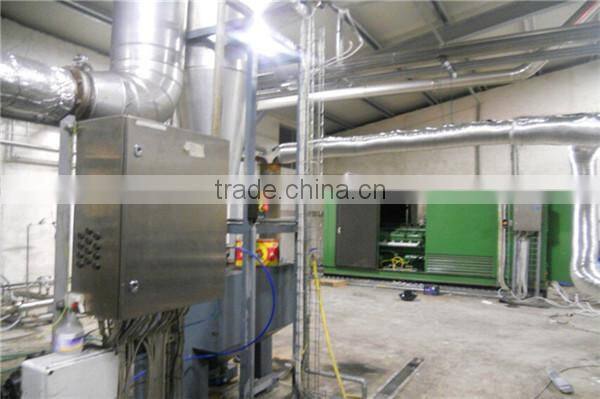

5.Succesfull Case
6.Service
1.pre-sale service:
(1)We will send our engineer to prospect the site of power station free to charge.
(2)According to the situation of site we can supply you many drawings:like power station floor plan,
engineering flow sheet of circle cooling system,genset installation,genset foundation,electrical connection and some other techincal support etc.
2.Sale service:
(1)we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.
(2)We will debug the generator set till it can generate power successfully.
(3)We will also supply a technical training to the operators.Orcan send your staff to our company.We can train you till you can operate the generator set.
3.After-sale service:
(1)Our every engineers are in charge of different area,we will response periodically and support you
technical service free of charge,
(2)For the quality problem, we will service for you free of charge during the guarantee period.
(3)One year guarantee period and lifetime service.
(4)we solve quality problem in time when genset doesn’t work,We insure to help our clients to gain the biggest economic profit.
Please feel free to ask question and quotation.
