600KVA 50Hz Wood Chip Gas /Wood Gas /Syngas /Biomass Generator for Iran power plant
Specifications
1.Supply power from 10KW to 1000KW
2. Advanced Control Panel
3. Water-cooled engine
4. Service OEM Offer
Lvhuan gas genset is a new green environmental product which meets demands of world environment protection and market.
With domestic advanced technology, our genset possesses features of speedy start, easy to operate, complete models, etc.
a. Biomass exists in various forms, like wood, crop( straws of rice, wheat, bean, cotton, husk,etc), weeds, algae, etc, in the plants. Others like animal wastes spoil and the organic exist in waste water and rubbish etc.
Now there are mainly three ways to generate power with biomass: gasify generating, burning generating, CHP technology. In China, we are rich in the resources of biomass, but lack in the power supply. So our country can supply a vast stage to show the advantage and economy to generate power with biomass.
Shandong Lvhuan Power Equipment Co.,Ltd is a pioneer and practitioner in green energy and renewable resources.
b. Biomass is biological material derived from living, or recently living organisms. It most often refers to plants or plant-based materials which are specifically called lignocellulosic biomass. As an energy source, biomass can be used directly via combustion to produce heat. It is a renewable energy source, For the use of the term in ecology.
Shandong Lvhuan Power Equipment Co.,Ltd is a pioneer and practitioner in green energy and renewable resources.
Requirements for biomass material( for biomass gasifier):
Raw material : can use various kind of MSW Waste and biomass waste as fuel
For example :
PP (Woven bag, microwave tableware, POTS, ),PE (Bottle, bucket, kettle, plastic food
bag) , PC(Plastic cups, cutlery, sports equipment), PS(Disposable plastic tableware,
comb, box, ball-point pen rod, children's toys, plastic shopping bags),PET (Medicine
bottle, cosmetics bottle, cap and plastic bottles),HPDE(All kinds of recycled plastic)
Rice husk, woodchips, sawdust, bark, shavings, crop stalks, coconut hull, olive
pomace, bagasse., plastic waste , palm tree .cotton straw
Size of the raw material :30-60mm .
Content moisture :keep less 18%
Termal efficiency :70-80%
| Biomass gas generator list | ||||
| Genset Mode | Prime power | Continuous power | Engine Mode | Displacement |
| LHBMG10 | 10kw | 8kw | LH2100 | 1.80L |
| LHBMG20 | 20kw | 16kw | LH4100 | 3.61L |
| LHBMG30 | 30kw | 24KW | LH4105 | 4.32L |
| LHBMG40 | 40KW | 32KW | LH6105 | 6.45L |
| LHBMG50 | 50KW | 40KW | LH4135 | 8.58L |
| LHBMG60 | 60KW | 48KW | LH4135 | 8.58L |
| LHBMG70 | 70KW | 56KW | LH6135 | 12.8L |
| LHBMG80 | 80KW | 64KW | LH6135 | 12.8L |
| LHBMG90 | 90KW | 72KW | LH6135 | 12.8L |
| LHBMG100 | 100KW | 80KW | LH6135 | 12.8L |
| LHBMG120 | 120KW | 96KW | LH12V135 | 25.75L |
| LHBMG140 | 140KW | 115KW | LH12V135 | 25.76L |
| LHBMG150 | 150KW | 120KW | LH12V135 | 25.75L |
| LHBMG180 | 180KW | 144KW | LH12V135 | 25.75L |
| LHBMG200 | 200KW | 160KW | LH12V135 | 25.75L |
| LHBMG250 | 250KW | 200KW | LH12V190 | 35.75L |
| LHBMG300 | 300KW | 240KW | LH12V190 | 35.75L |
| LHBMG350 | 350KW | 280KW | LH12V190 | 35.75L |
| LHBMG400 | 400KW | 320KW | LH12V190 | 71.45L |
| LHBMG500 | 500KW | 400KW | LH12V190 | 71.45L |
| LHBMG600 | 600KW | 480KW | LH12V190 | 71.45L |
| Parameter of biomass gas generator | ||||
| Rate Voltage | 400V/230V | |||
| Phase | 3Phase 4 wires | |||
| Rate Frequency | 50HZ/60HZ | |||
| Power Factor | 0.8 | |||
| Voltage Regulating Range | 95%-105% | |||
| Voltage Steady State | ≤±2% | |||
| Voltage Transient State | ≤±10% | |||
| Voltage Settling | ≤1S | |||
| Voltage Volatility | ≤±0.5% | |||
| Frequency Steady State Regulation Rate | ≤0.5% | |||
| Frequency Transient State Regulation Rate | ≤±10% | |||
| Heat Consumption | 9.8mj/kw.h | |||
| Pressure | 5-20kpa | |||
| Intake Mode | Natural intake | |||
| Sparking Mode | Sparking plug | |||
| Voltage Regulation Mode | automatic | |||
| Speed Regulation Mode | Electronic speed regulation | |||
| Lubricating Mode | Pressure and splash | |||
| Cooling Mode | Closed/open circulating water cooling | |||
| Starting Mode | 24V electric motor | |||
| Overhaul Time | ≥20000h | |||
| Noise | ≤105aB(A) | |||
| Exhaust Temperature | ≤650°C | |||
Main composition of biomass gas:
After being gasified, the basis of gas is CO(20%), H2(9%), CH4(12%),CO2(12%), N2(52%), The lower heating value is 5-6 MJ/Nm3.
Efficiency of gasification:1 kg dried material can generate 2 Nm3 gas, conversation rate is more than 85%. 1 kg dry material can generate 1 kw.h power.
Requirements for biomass gas:
Within 1m from pressure regulating value of gas intake;
Gas temperature<40℃
The ratio of CH4 in natural gas >70%;
Pressure of natural gas: 3--10 kpa, rate of pressure change <1 kpa/min;
H2S≤200mg/Nm3;
NH3≤20mg/Nm3;
Tar content≤20mg/ Nm3;
Moisture content ≤40g/Nm3;
Impurity particle size ≤5µm, impurity content ≤30 mg/Nm3
Heat value≥4.2MJ/Nm3
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow supercharger, compression ration is 1:8,meet engine's requirement for gas-flow rate.
Speed regulating system:EGS gas controller of American WOODWARD Company.
scope of application:Biogas generator set is widely used in the many area where can generate biogas,like rubbish landfill,livestock excrement disposal,industrial organism disposal.
Spare parts for generator sets

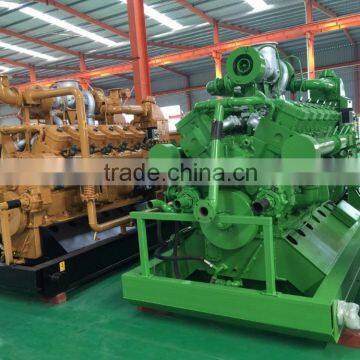

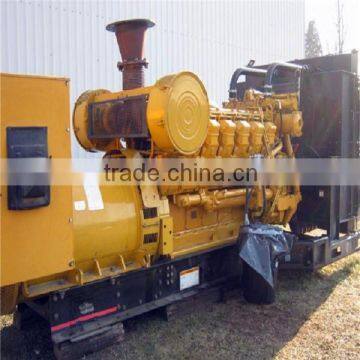

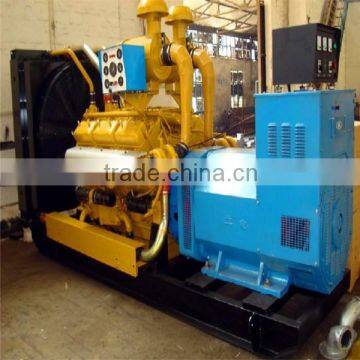

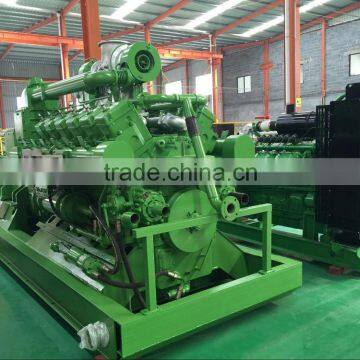

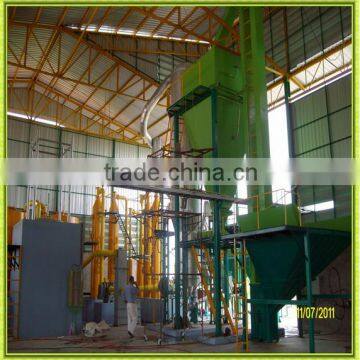

BIOMASS GAS GENERATOR SET PICTURES
Our company overview:
Our company technology advantage:
1. Enalbing high-, medium-and low-voltage output, which lowers the initial investment and operation cost.
2. Continuous and stable rated can be put out with assurance of the great cylinder diameter.
3. Low-speed rotation lengthens the service life of the engine sets.
4. The unsupercharged sets with natural aspiration are suitable for a wide range of gas and have a low error rate.
5. The in-line structure simplifiers the layout of the engines and facilitates maintenance.
6. There are several defense lines to guarantee safe and efficient use of fuel gas.
7 . The surplus heat is recycled to realize the utility of cogeneration.
8 . The computerized monitoring management system enables online monitoring and automatic control.
Visitors form oversea:
pitures:
FAQ:
1.How to choose the right model?
A: It depends on continuous output power, Voltage, Frequency and fuel type. Please tell me what fuel (natural gas, biogas, biomass gas,wood syngas, methane,coal gas) or raw material(like wood, grass, nutshell and so on) The right model of generator will be recommend soon.
Me and our engineers are always available at your service.
2.What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce 1.5-3.0kw/h power. The capacity depends on gas energy(Kcal). E.g 1.0 Cubic meter natural gas produce about 3.0-4.0kw/h
3.What is the overhaul?
A: About 30000 working hours. A week is enough to finish. We offer manual for weekly, monthly and overhaul maintenance.
4. What is the warranty?
A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. What's more, a set of spare parts will be shipped together with generator set free of charge.
5. How is the after sale service and maintenance?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
6. What products we offer?
Biomass gasifier,Biomass/syngas generator,biogas generator,Natural gas(CNG,LNG) / methane generator,Coal gas generator,Diesel generator.
Generators can parallel together to form large power, E.g. 5 sets 400kw biomass generator form 2000kw biomass generator system.
Our Services :
1.Pre-sale service:
A.Our engineers are available for onsite prospect before installation free to charge.
B. Foundation drawing and detailed Dimension free form us.
2.In-sale service:
A. Onsite overall guide installation,operation and maintenance training .
B. Assistance and instruction of trial running.
3.After-sale service:
A.Our every engineers are in charge of different area,we will response periodically and support you
technical service free of charge,
B.For the quality problem, we will service for you free of charge during the guarantee period.
C.One year guarantee period and lifetime service.
D.we solve quality problem in time when genset doesn’t work,We insure to help our clients to gain
4.Spare parts service:
A.All spares parts on our gensets supplied by us.
B. Free spare parts together with genset when shipping.
if you are interested in our products, please contact me!
