Help CenterEST Galvanized Steel Strand
Related Products
-
Strapping the Galvanized Steel StrandUS$ 1,000 - 1,500MOQ: 1 Ton -
Forestry With Strapping Stranded WireUS$ 1,000 - 1,500MOQ: 1 Ton
-
Galvanized Steel Wire Strand for ACSRUS$ 1,000 - 1,500MOQ: 25 Tons
-
1x7,1x19 Galvanized Steel Wire StrandUS$ 1,050 - 1,150MOQ: 25 Tons
-
1x37 Galvanized Steel Wire StrandUS$ 1,000 - 1,500MOQ: 25 Tons
Specifications
1.ASTM 475/BS1832.Zinc coating:260-520/m2
3.high quality attractive price

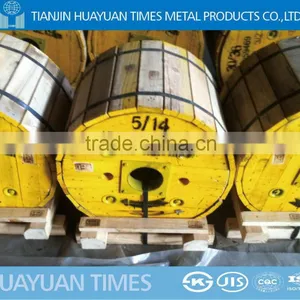

4.Packing: reel
· Aerial earth wire for BS 183, ASTM IEC 888 1 x 7, 1 x 19 and 1 x 37
· As overhead ground (or static) wire for protection against lighting
· 1 x 7 construction strand with grade A galvanization and with group one tensile strength is mostly used for this application
· Strand is installed at the top of steel tower and functions as a ground (earth) wire to protect the aluminum conductor with steel reinforced (ACSR) from lightening
· With its normal lifespan of 20 to 30 years, thick galvanized layer better than or equivalent to that of galvanized strand for ACSR is recommended
· For telecommunication cable (self-supporting type)
· Used to support self-supporting (SS) telecommunication cable, which has replaced obsolete lead-plated cables
· 1 x 7 strands with group one tensile strength and grade A galvanization are widely used for this application
· The telecom cable and galvanized strands are coated together with a poly-ethylene insulation
· As messenger wire to support utility lines
· Used at train railroad, streetcar line and subway railroad, either 1 x 7 or 1 x 19 construction strands are used
· As guying wire (for poles and towers)
· Used as guying wire for various poles, towers for power and telecom cables, the industry is moving towards using higher strength strands with better corrosion protection for this application
· For ACSR (aluminum conductor steel reinforced)
· Used to supports ACSR cable as the core strength member, for power cables with above 60kV capacity, ACSR is widely used in replacement of hard cu-strand conductors, in comparison with hard Cu cables, ACSR weighs 20% less with 1.7 times increase in strength so that the interval between power transmission towers can be doubled
· All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
