Home > Lights & Lighting > Outdoor Lighting > Street Light > Hot-sale 2835 Smd 150cm Led t8 Tubes With 3 Year Warranty

Hot-sale 2835 Smd 150cm Led t8 Tubes With 3 Year Warranty

Name: Hot-sale 2835 Smd 150cm Led t8 Tubes With 3 Year Warranty
Brand: TopsungLED
SKU: 119992891
Availability: InStock

Hot-sale 2835 Smd 150cm Led t8 Tubes With 3 Year Warranty thumbnail-1

Hot-sale 2835 Smd 150cm Led t8 Tubes With 3 Year Warranty photo-1

US$ 10 - 15 MOQ: 30 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

TopsungLED

Model Number:

TP-T8-18W-2835

Contact Supplier Request Quote Chat Now

Shenzhen Topsung Lighting Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name TopsungLED

Model Number TP-T8-18W-2835

High lumen 2835 t8 led light 48 inch

FEATURE & SPECIFICATION

Feature of 2835SMD tube:

1) Large Heat Sink: 2-3 times bigger heat sink than smd3528/smd3014, excellent heat dissipation structure

design which reduces light decay and makes the lifespan longer.

2) Large Light Emitting Surface: can improve the light-extraction efficiency to 90%.

3) Ultra-thin structure: will solve the long-standing light spot problem of smd3528 and smd3014.

4) High luminous efficiency: the luminous efficiency can be up to 90-100LM/W.

5) Super stability: low light decay material, mature technology and production process.

6) Low cost performance: can save 20% cost to achieve the same lumen flux.

7) Color temperature: can be lower to 2000K, up to 105000K.

Model No	Power	Size	LED Type	Color Temperature (K)	Luminous flux(lm)	Input Voltage	Light efficiency
TP-T8-2835-10W	10W	600*Φ26	2835 48 pcs	2700K-6500K	750 lm	85-265V	>80LM/W
TP-T8-2835-14W	14W	900*Φ26	2835 72PCS	2700K-6500K	1250 lm	85-265V	>80LM/W
TP-T8-2835-18W	18W	1200*Φ26	2835 96PCS	2700K-6500K	1590 lm	85-265V	>80LM/W
TP-T8-2835-22W	22W	1200*Φ26	2835 105PCS	2700K-6500K	2050 lm	85-265V	>80LM/W
TP-T8-2835-25W	25W	1500*Φ26	2835 126PCS	2700K-6500K	2250 lm	85-265V	>80LM/W

Advantage of 2835SMD

Generally speaking, SMD 2835 design is newer and more advanced than 3014than 3528. Because 2835 has more effective thermal dissipation system, specifically, a larger heat sink than 3014 on the back, and 3528 has no back heat sink at all, therefore 2835 is able to take higher current and generates more luminous flux.

The form below is the common spec of these LED solutions in these days. The data is based on June, 2013.

ACCESSORIES & PACKING

Packing:

ITEM	QTY PER CARTON	CARTON DIMENSION	CARTON GROSS WEIGHT
30CM	60	752525 cm	8.5KG
60CM	30	752525 cm	8.5KG
90CM	30	1052525 cm	10.5KG
120CM	30	1352525 cm	12.5KG
150CM	30	1652525 cm	15.2KG
180CM	30	2452525 cm	30.2KG

Remark: generally the shipping cost will based on Volumetric weight because the carton size is big. Such as 120cm tube = 135x25x25/5000= 17kg~18kg depends on actual measure by different Express Companies.

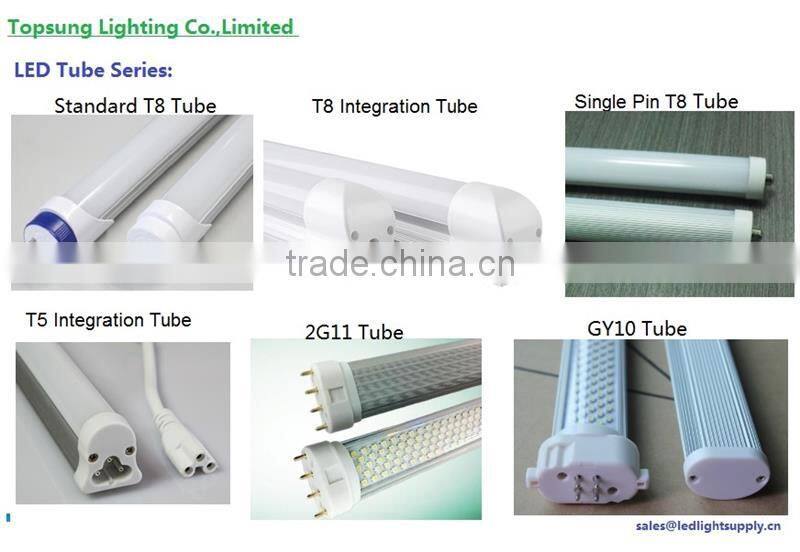

More Products of Topsung LED Tubes:

PAYMENT&SHIPMENT&WARRANTY

CERTIFICATE

Most of our Products has passed CE,ROHS, FCC, PSE, certificate

FACTORY & CONTACT INFO

Shenzhen Topsung Lighting Co.,Limitedwith 5 years' rich experience on design/develop/export LED Products is one of the Factory of Topsung Industrial Co.,LTD. Its main procuts include: LED decoration lights (Neon, Rope, Strips,ect) & Indoor LED lights (tube, bulb, downlight, panel light,ect). Topsung Lighting cares about customer's request and deveoped new design lighting products. Welcome your inquiry!

Tel: 86-15994785513 Mail: sales (at) ledlightsupply (dot) cn Skype: topsungled

Last Update Time:2014-11-27
