Cost Saving EL10601980647 Photoelectric Sensor
Product Description:
PCB two circular holes (the distance from the center point) of 1.5cm, a pore diameter of 0.3cm
10mm width groove coupler
The main chip: LM393, groove coupler H2010
Operating voltage: 5 V DC
Product Parameter:
1. Size: 32mm X11mm X 20mm
2. Main Chip: LM393, Radiation infrared head
3. Working Voltage : DC 5V
4. Signal output instructions.
5. Single-channel output.
6. Output valid signal is low level
7. Sensitivity is not adjustable
8. Can be used for workpiece counting, electrical velocimetry
Features:
1, having a signal output instruction.
2, a single-channel signal output.
3, there is a high level output when the occluder (LED lamp), low output when there is no obstruction (LED lights)
4, the sensitivity is not adjustable.
5, can be used to count the workpiece, the motor speed. . . .
6, the circuit board output switch!

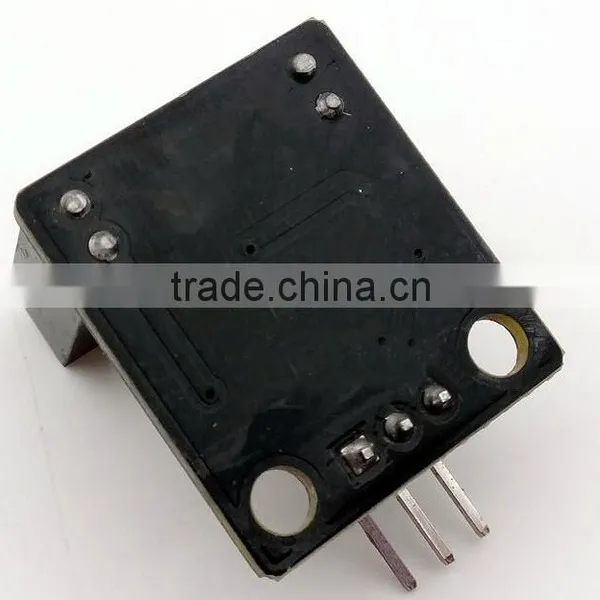

Cost Saving EL10601980647 Photoelectric Sensor Photos:
Sample term:
Sample can be provided as request.
Nice and solid packaging is our advantage!
