C45 Ardiuino51 LED & KEY PCB
Feature:
1. with 8 keys
2. with 8 LED
3. 8 digital control, common cathode LED digital tube
4. STC microcontroller can be directly connected
5. Providing arduino drivers
Product descriptions:
The module is used in chip TM1638, a collection of these three common MCU peripheral circuit, the biggest feature is just take three microcontroller IO port to drive, do not need to scan display and key scanning microcontroller intervention, only need to read the relevant register send display data or test button, save MCU resources. Buy this module provides sample program.
Imagine, we usually use an external microcontroller 8 LED, 8 digital tube, eight keys which will occupy the number of IO ports, far more than three IO mouth it, but with this module can be achieved. The practical application of key sensitive display good results.
Connection:
VCC GND connected to 5V power supply, STB CLK DIO connected microcontroller IO port.

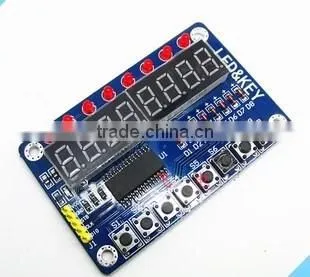

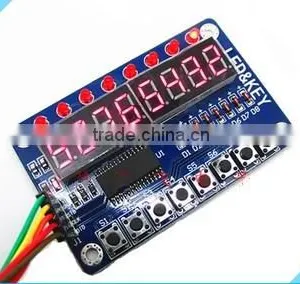

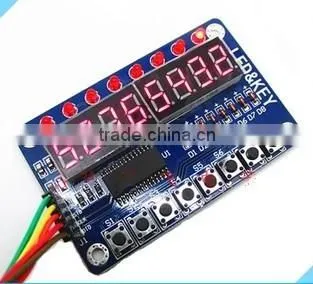

C45 Ardiuino51 LED & KEY PCB Photos:
Sample term:
Sample can be provided as request.
Nice and solid packaging is our advantage.
