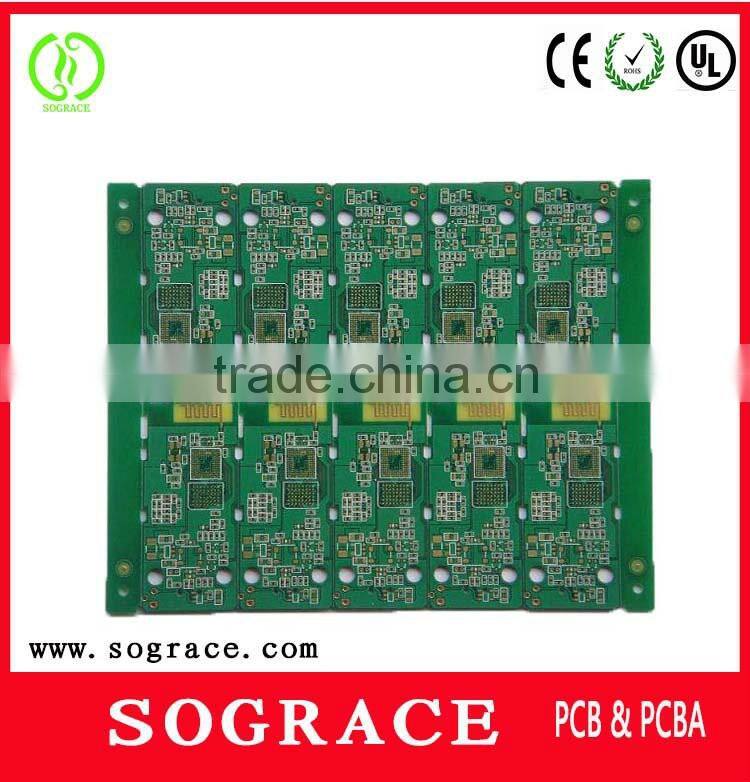

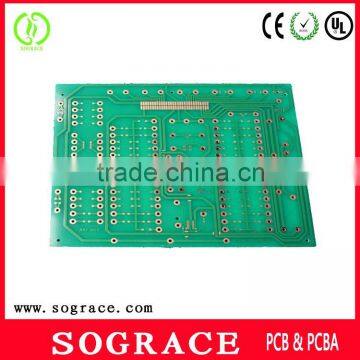

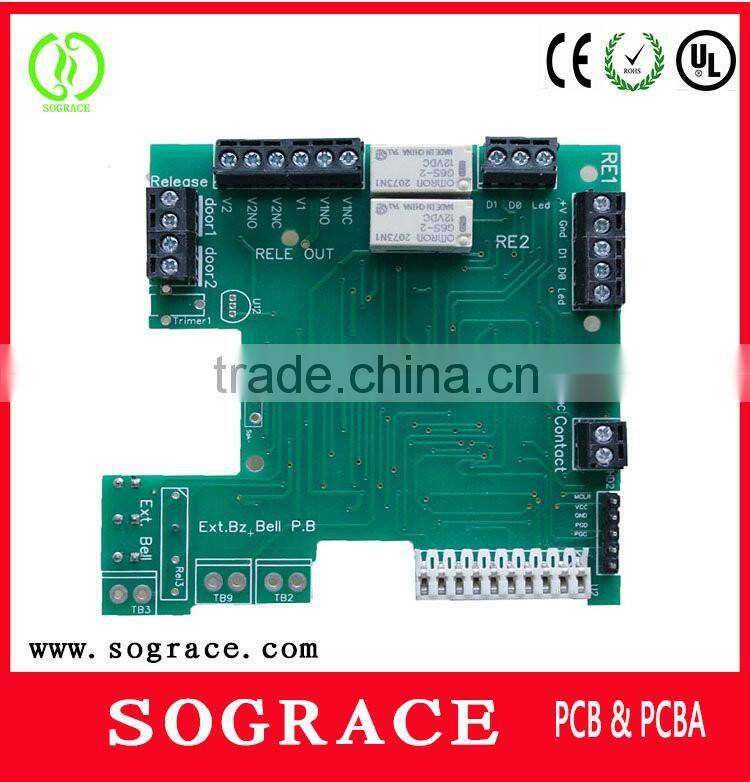

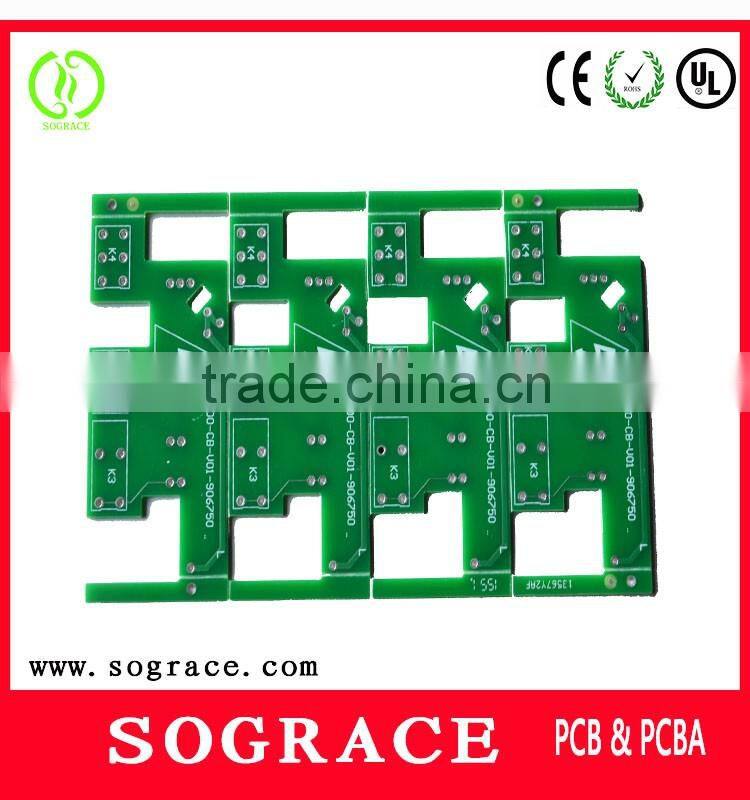

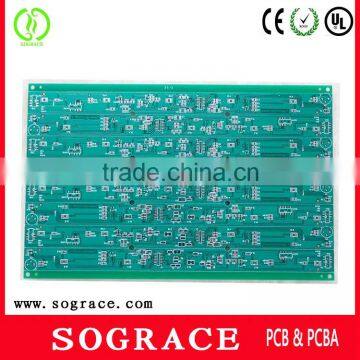

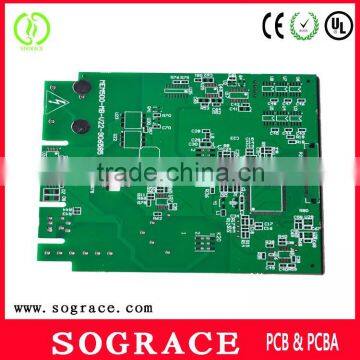

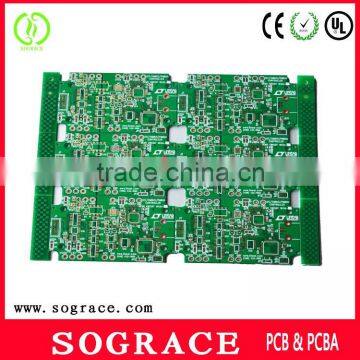

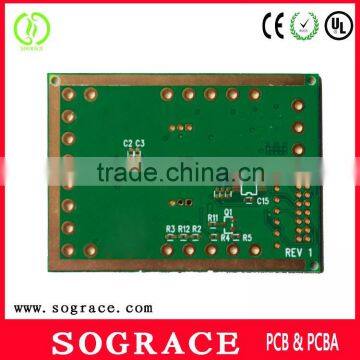

came-3 double side air conditioner pcb usb hub pcb cnc pcb board
- 25000 Piece / Pieces per Month
- shenzhen HongKong port
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Sograce | Model Number: | usb hub pcb |
Base Material: | CEM-3 | Copper Thickness: | 1oz~4oz | Board Thickness: | 1.6mm |
Min. Hole Size: | 0.15mm | Min. Line Width: | 0.075(3mil) | Min. Line Spacing: | 0.075mm/3mil |
Surface Finishing: | HASL Lead |
Product Description
PCB Assembly Technical Request:
- Professional surface-mounting and Through-hole Technology
- Various sizes like 1206, 0805, 0603 components SMT Technology
- ICT ( In Circuit Test), FCT ( Functional Circuit Test) Technoloty
- PCB Assembly with UL, CE, FCC, RoHs approval
- Nitrogen gas reflow soldering technology for SMT
- High standard SMT & Solder Assembly Line
- High density interconnected board placement technology capacity
Quote requirement for pcb and pcb assembly:
1) Gerber file and Bom list
2) Clear pics of pcba or pcba sample for us
3) Test method for PCBA
We specialized in:
l PCB design, PCB layout, PCB manufacturing, PCB Assemblies,
l One-stop services from PCB to PCB assembly
l components sourcing, PCBA Function Test, design solution.
l Electronic testing circuit board or PCBA
l Eleectronic manufacturing service

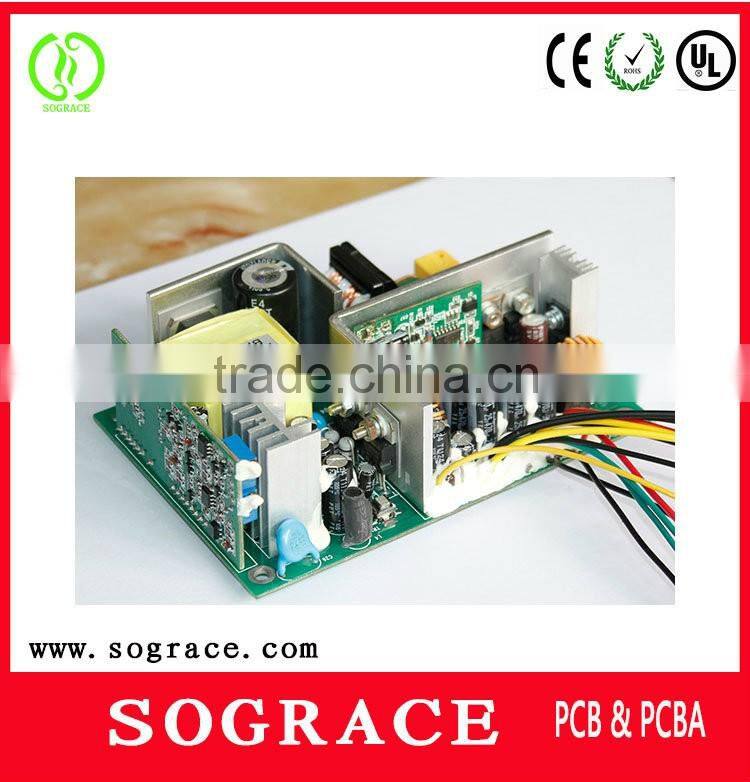

came-3 double side air conditioner pcb usb hub pcb cnc pcb board
Files | Gerber, Protel, Powerpcb, Autocad, Cam350, etc |
Material | FR-4, Hi-Tg FR-4, Lead free Materials (RoHS Compliant) , CEM-3, CEM-1, Aluminium, High frequency Material (Rogers, Teflon, Taconic) |
Layer No. | 1 - 30 Layers |
Board thickness | 0.0075"(0.2mm)-0.125"(3.2mm) |
Board Thickness Tolerance | ±10% |
Copper thickness | 0.5OZ - 4OZ |
Impedance Control | ±10% |
Warpage | 0.075%-1.5% |
Peelable | 0.012"(0.3mm)-0.02’(0.5mm) |
Min Trace Width (a) | 0.005"(0.125mm) |
Min Space Width (b) | 0.005"(0.125mm) |
Min Annular Ring | 0.005"(0.125mm) |
SMD Pitch (a) | 0.012"(0.3mm) |
pcb with green solder mask and LF-FREE surface finishing BGA Pitch (b) | 0.027"(0.675mm) |
Regesiter torlerance | 0.05mm |
Min Solder Mask Dam (a) | 0.005"(0.125mm) |
Soldermask Clearance (b) | 0.005"(0.125mm) |
Min SMT Pad spacing (c) | 0.004"(0.1mm) |
Solder Mask Thickness | 0.0007"(0.018mm) |
Hole size | 0.01"(0.25mm)-- 0.257"(6.5mm) |
Hole Size Tol (+/-) | ±0.003"(±0.0762mm) |
Aspect Ratio | 6:01 |
Hole Registration | 0.004"(0.1mm) |
HASL | 2.5um |
Lead free HASL | 2.5um |
Immersion Gold | Nickel 3-7um Au:1-3u'' |
OSP | 0.2-0.5um |
Panel Outline Tol (+/-) | ±0.004''(±0.1mm) |
Beveling | 30°45° |
V-cut | 15° 30° 45° 60° |
Surface finish | HAL, HASL Lead Free, Immersion gold, Gold plating, Gold finger, immersion silver, immersion Tin, OSP, Carbon ink, |

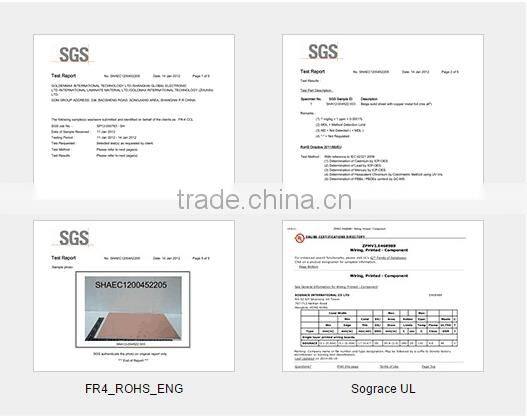

Certificate | ROHS ISO9001:2000 TS16949 SGS UL |
Special requirements | Buried and blind vias, Impedance control, via plug, BGA soldering and gold finge |
PCB and PCBA Lead time:
single/double side | 4 layer | 6 layer | 8 layer | HDI | |
Sample lead time(Normal) | 5-6 | 6-7 | 7-8 | 10-12 | 15-20 |
Sample lead time(Fastest) | 48-72 hours | 5 | 6 | 6-7 | 12 |
Mass production lead time(First batch) | 7-9 | 10-12 | 13-15 | 16 | 20 |
Packing | Inner packing: Vacuum packing / Plastic bag Outer packing: Standard carton packing |
Payment terms | L/C,T/T, Western Union,Paypal |
Trade terms | FOB,CIF,DDP |
FOB port | Shenzhen, Hongkong |
came-3 double side air conditioner pcb usb hub pcb cnc pcb board
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluently English
3. OEM&ODM, we can help you to design and put into product.
4. Distributorship are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information
How to work with us

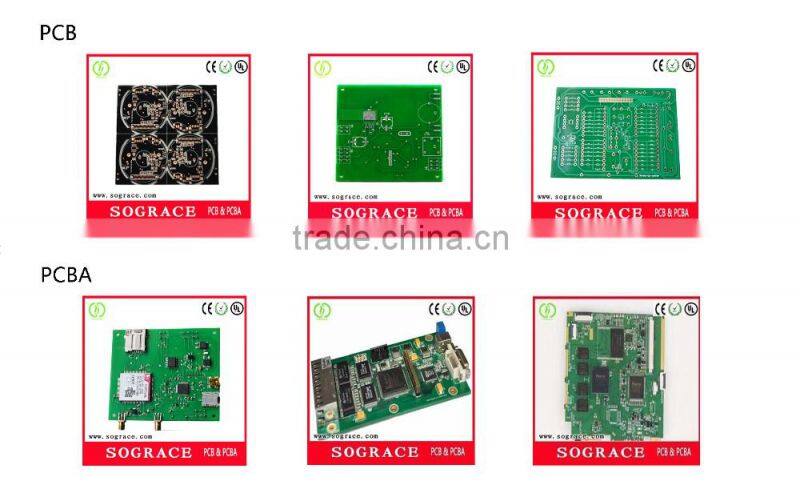

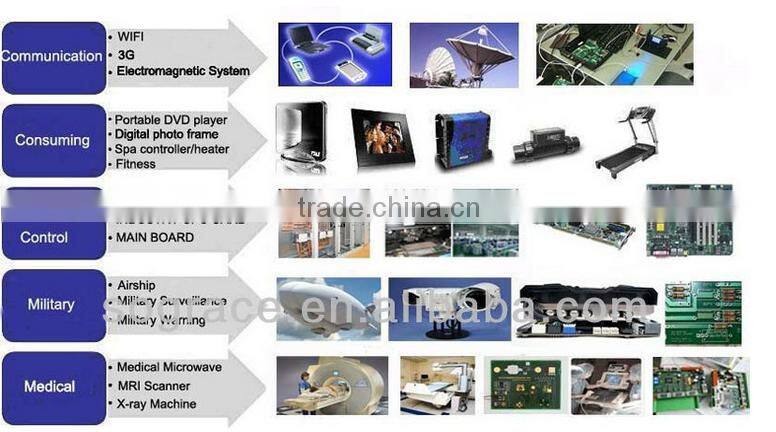

Our products application
Sograc techonlogy Corporation Limited is a professional PCB manufacturer for
producing all kinds of single side, doubleside and multilayer pcb, also provide assembly service with 10 years experience.We have a variety of advanced production equipments, excellent engineering and technical personnels, accompany with the mature management and service system.Our pcbs meet IEC,IPC,DIN,MIN standard, behaves ISO9001 quality system ,UL and Rohs certificate. Fast lead time and competitive price with high quality are our advantages. PCB lead time is within 10days,and most can be within 7days. We also established a prototype team to develop customer’s prototype needs. prototype lead time often can be within 3days.
1.Which type of PCBs do you expert in?
We are specialized in producing Singe-side PCB,Double-side PCB, Multilayer PCB,Aluminium PCB,Spray Tin PCB,Immersed Gold PCB, etc.
2.What is your Lead time?
Lead time is usually punctual here, usually 5-10 days for PCB sample, 10-15 days for mass production. For some special situation, we can also advise customer in advance to avoid any inexpectation or loss at customer side.
3.What is your testing policy and how you controle the quality?
For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested
by fixture, this will be more faster. Due to there’s many steps to PCB production,we usually doinspection after every step.
4.What is your package?
With Inner vacuum package and out carton.
5.Will you allow me to put several part number together into one panel?
Yes, this is usually happen in we factory, this way can help customers reduce some cost and to a
certain degree, it can help reduce some assembly cost.
6.What is your minimum order quantity?
We have no limitation on MOQ, prototype, medium volume and large volume are all acceptable.
7.Are my design files safe when I submit them to you for manufacturing?
Any customer’s file will be protected very well here in our factory and we will not let any third party
know. We can sign NDA with you.
If interested, please contact me any time!
