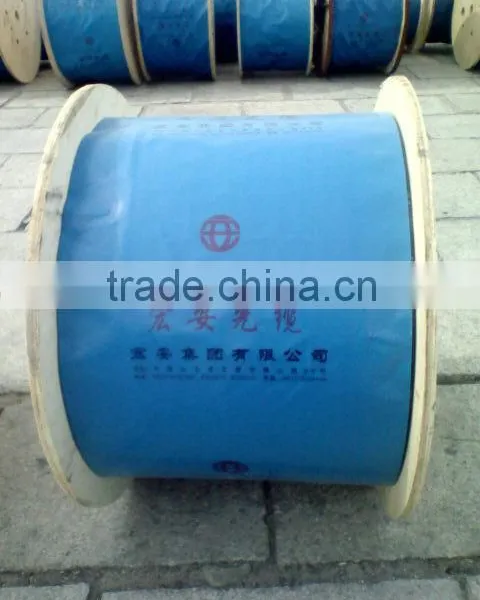

INDOOR FTTH OPTICAL FIBER BOW-TYPE DROP CABLE PRICE
US$ 0.01 - 6
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
HONG AN
Model Number:
GJYXCH,GJXFH,GJXH
Payment & Shipping
Payment Methods:
Port of Shipment:
Qing Dao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EFFICIENT AND SAFE (2-288) Cores GYTA Optical Fiber Cable Meter PriceUS$ 0.1 - 9MOQ: 1000 Meters -
ADSS (2-72) ALL DIELECTRIC SELF-SUPPORTING OPTICAL FIBER CABLEUS$ 0.03 - 9MOQ: 1000 Meters
-
Fiber Optic Cable With Competitive Price Made in ChinaUS$ 0.01 - 9MOQ: 1000 Meters
-
6 Core Single Mode NON-METALLIC STRENGTH MEMBER NON-ARMORED Fiber Optic...US$ 0.02 - 9MOQ: 1000 Meters
-
6 Core Central Tube Coaxial Single Mode Optical Fiber Cable PriceUS$ 0.05 - 9MOQ: 1000 Meters
Place of Origin
China
Brand Name
HONG AN
Model Number
GJYXCH,GJXFH,GJXH
| Structure parameters: | |||||
| Fiber count | Dimension (mm) | Weight kg/km FRP/Steel wire | Permitted tensile Long term/ Short term (N) | Permitted crush Long term/ Short term (N) | Bend radius Static state/ Dynamic state (mm) |
| Single or Double Fibers | (2.0+/-0.2)x(3.0+/-0.2) | 10 | 40 / 80 | 500 /1000 | 15 / 30 |
| 13 | 100 / 200 | 1000 /2200 | |||
| Three or Four Fibers | (2.0+/-0.2)x(4.1+/-0.2) | 13 | 40 / 80 | 500 /1000 | 15 / 30 |
| 16 | 40 / 80 | 1000 /2200 | |||
| Single Fiber Tight Buffer | (2.0+/-0.2)x(3.8+/-0.2) | 11 | 40 / 80 | 500 /1000 | 15 / 30 |
| 14 | 40 / 80 | 1000 /2200 |
Product Description
Charistics of product:
1.special low sensitivity of bending fiber provides higher bandwidth and realize the integration of internet network,CATV network and telephone network;
2.two parallel strength members protect fibers and ensure excellent performance of crush and tensile strength;
3.simple structure, lighter and good practicability;
4.unique gouge design, strip and splice easily, simplify installation and maintenance.
Applications:
Access network, Fiber To The Home(FTTH);
Standards:
YD/T 1997
Temperature:
Operating temperature:-20°C~+60°C
Installation temperature:-5°C~+50°C
