ADSS (2-72) ALL DIELECTRIC SELF-SUPPORTING OPTICAL FIBER CABLE

ADSS (2-72) ALL DIELECTRIC SELF-SUPPORTING OPTICAL FIBER CABLE photo-1

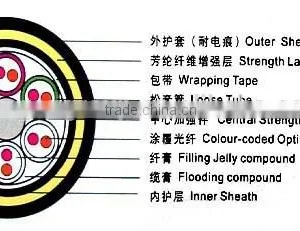

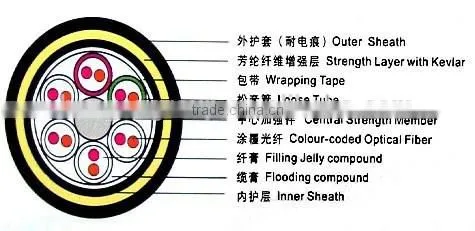

ADSS (2-72) ALL DIELECTRIC SELF-SUPPORTING OPTICAL FIBER CABLE photo-2
US$ 0.03 - 9 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
HONG AN
Model Number:
ADSS (2-72)
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name HONG AN
Model Number ADSS (2-72)

Applications:

1.Area with lightning strike.

2.High voltage transmission systems.

3.Aerial.



Standards:

IEC60794-1

DL/T788

YD/T980



Charistics of product:

1.For overhead power lines such as 10kv,35kv,PE outer sheath will be used.

2.For power lines such as 110kv,220kv,AT outer sheath will be used.

3.Good performance of tensile strength and temperature.

4.The deliberate design of use of aramid yarn can satisfy the demands on the conditions,such as climate,various spans and sag etc..

5.Small diameter and lighter of the cable reducing the load caused by ice and wind on the towers and supporting the structures.



Temperature:

Operating temperature:-40°C~+70°C



Structure parameters:

Ref.Diameter(mm) Nominal weight (kg/km) Permit working tension(Max) (N) Daily working tension (Max) (N) Break strength (kN) Suitable span
12.6 118 4000 1500 10 100
13.1 129 6000 2200 15 150
13.4 136 8000 3000 20 200
13.6 144 10000 3600 24 250
13.9 148 12000 4400 30 300
14.4 154 14000 5200 35 350
14.8 170 18000 6750 45 400
15.2 178 22000 7950 53 500

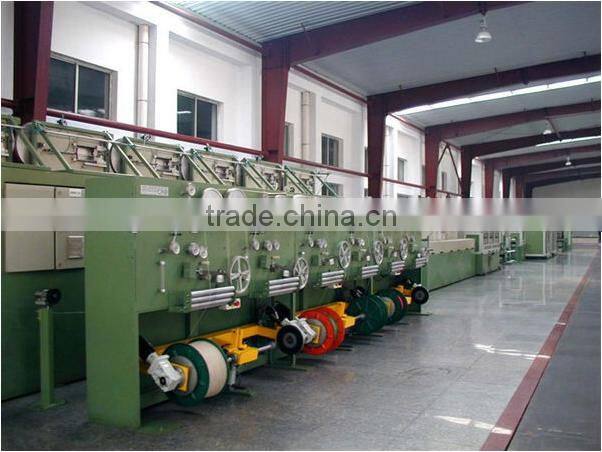

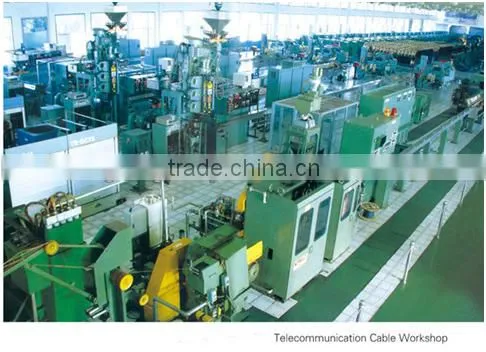

Perfect Produce Lines:

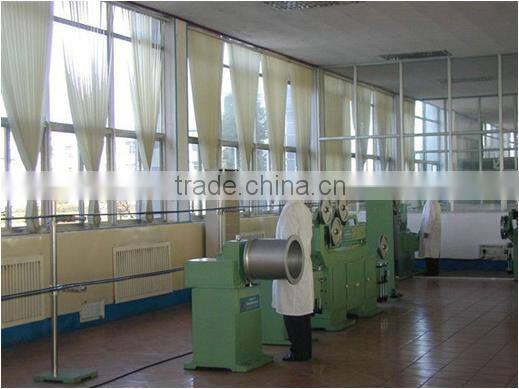

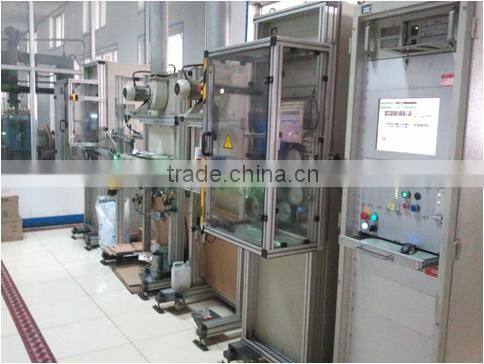

Advanced testing machine:



Sincerely hope this can meet your requirement and let us become good friends. Anything details and requirements, you can send email to me. You are welcome. Thanks.
