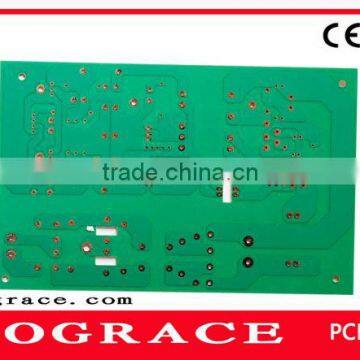

double layer printed circuit board/single side pcb board fabrication
- 500000 Piece / Pieces per Month
- shenzhen port
- T/T Credit Card
- Professional PCB/PCBA assembly board design in Sograce
- Electronic osp pcb board 94v0 circuit board pcb fabrication
- hot selling FR-4 printed circuit board and pcb fabrication
- china supplier FR-4 94-v0 double-side rigid pcb with competitive price
- high quality pcb pcba manufacture in China
- High quality HASL camera printed circuit board pcb manufacturer
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Sograce | Model Number: | OEM |
Number of Layers: | Other, 2- layer | Base Material: | FR-4 | Copper Thickness: | 1oz |
Board Thickness: | 1.6mm | Min. Hole Size: | 0.25mm | Min. Line Width: | 0.003" |
Min. Line Spacing: | 0.1mm4mil) | Surface Finishing: | HASL |
Product Description
Choose Sograce,Choose the best PCB products
Sograce International Corporation Limited is a professional PCB manufacturer for producing all kinds of single side, doubleside and multilayer pcb, also provide assembly service with 10 years experience.We have a variety of advanced production equipments, excellent engineering and technical personnels, accompany with the mature management and service system.Our pcbs meet IEC,IPC,DIN,MIN standard, behaves ISO9001 quality system ,UL and Rohs certificate. Fast lead time and competitive price with high quality are our advantages. PCB lead time is within 10days,and most can be within 7days. We also established a prototype team to develop customer’s prototype needs. prototype lead time often can be within 3days.
NO | ITEM | Technical capabilities |
1 | Layers | 2-20 layers |
2 | Max. Board size | 2000×610mm |
3 | Min. board Thickness | 2-layer 0.15mm |
4-layer 0.38mm | ||
6-layer 0.55mm | ||
8-layer 0.80mm | ||
10-layer 1.0mm | ||
4 | Min. line Width/Space | 0.075mm(3mil) |
5 | Max. Copper thickness | 6OZ |
6 | Min. S/M Pitch | 0.075mm(3mil) |
7 | Min. hole size | 0.1mm(4mil) |
8 | Hole dia. Tolerance (PTH) | ±0.05mm(2mil) |
9 | Hole dia. Tolerance (NPTH) | +0/-0.05mm(2mil) |
10 | Hole position deviation | ±0.05mm(2mil) |
11 | Outline tolerance | ±0.10mm(4mil) |
12 | Twist & Bent | 0.75% |
13 | Insulation Resistance | >1012 Ω Normal |
14 | Electric strength | >1.3kv/mm |
15 | S/M abrasion | >6H |
16 | Thermal stress | 288°C 20Sec |
17 | Test Voltage | 50-300V |
18 | Min. blind/buried via | 0.15mm (6mil) |
19 | Surface Finished | HAL, ENIG, ImAg, Imsn OSP, Plating AG, Plating gold |
20 | Materials | FR4,H-TG,Teflon,Rogers,Ceramics,Aluminium, Copper base |
1.Circuit board assembly fabrication: Onestop pcb assemblies service, PCB design, PCB layout, PCB manufacturing, PCB Assemblies, components sourcing, PCBA Function Test, design solution.
2.Quote Needed: 1.PCB Gerber File; 2.Bom List for PCB Assembly; 3. Send us a sample of PCBA to make the exactly same for you. 4. Test Method for PCB Assembly.
3.PCB+COMPONENTS+SMT the whole service with top quality and very competitive price for you; OEM design and custom made products are welcomed.
1.Sograce International Corporation is a professional PCB and PCBA manufacturer servicing clients globally for ten years.
2.Sograce International Corporation can meet all your PCB manufacturing needs from single-sided to complex multi-layered PCB.
3.All orders receive and engineering file review before going to fabrication and download the industry’s best PCB board design software.
4.We have a consistent on-time shipping record and we are now shipping many of our orders early!
5.In Sograce, we are committed to giving you personal Customer EXCELLENCE not just Customer Service! When you call, we answer. When you email, we respond.
6.We don’t have any minimum lot requirements, so you never have to buy more than what you need.
7.Located miles from Shenzhen, hong kong port, Sograce can provide quick shipping.
Q:Sograce is an Foreign Trading company?
A:No! We are an PCB and PCB Assembly manufacturer, who responsible for PCBassembly service, Like SMT, DIP and so on.
Q:What kind assembly service?
A:1-12layer PCB board assembly service, End-products assembly service, Packaging service.
Q:What kind other service Sograce provide?
A:Sograce provide: Function testing, PCB and PCBA clone service, Purchasing service, IC decryption, and Porgramming service.
Q:How many workers in Sograce factory?
A:We totally have over 200 workers in our factory
Q:Do you have MOQ requirement?
A:Sograce MOQ requirement, just different quantity with different price level.
Q:Does Sograce provide customer's products to others, After you signed NDA files?
A: Absolutely not, Keep and protect our customer's profit is our highest purpose!
Q:Where your factory located?
A:Our factory located at Wanxia Industrial zone,Xinhe Road,Shajing Town,Baoan district,Shenzhen,china.
Choose Sograce,Choose the best PCB products!!!
more datails:grace .com
Looking forward to your inquiry !
