Home > Products > Steel Wire for Cable > 2014High Quality Low Carbon Galvanized Steel Wire

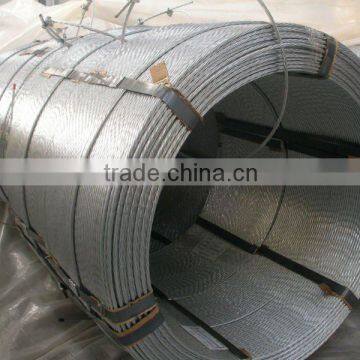

2014High Quality Low Carbon Galvanized Steel Wire
- Tianjin
- T/T L/C D/P D/A Money Gram Credit Card
You May Like
-
High Quality Hot Dipped Galvanized Steel Wire
-
2014 High Quality Hot Dipped Galvanized Steel Wire for Mesh
-
2013 High Quality High Tensile Galvanized Steel Wire
-
2014 High Quality High Tensile Strength Galvanized Steel Wire
-
Extra High Tensile Strength Galvanized Steel Strand for ACSR( FACTORY)
-
(FACTORY) Hot-dipped Galvanized Steel Strand for Electricity Transimission
Product Details
| Steel Grade | 1006,1018,Q195,Q235 | Standard | AISI, ASTM, BS, DIN, GB, JIS | |
| Wire Gauge | 0.2mm-6.0mm | Place of Origin | Tianjin, China | |
| Type | Galvanized | Application | Netting | |
| Alloy Or Not | Non-alloy | Special Use | Cold Heading Steel | |
| Brand Name | Tianjin Huayuan |
Product Description
Specifications
1.ISO9001:2000 Certificate2.Zinc coating:40-1200g/m2
3.high quality attractive price
4.Diamter:0.2mm--6.0mm
Galvanized steel wire (galvanized steel wire) is 45 #, 65 #, 70 #, such as high-quality carbon structural steel drawing, and then by the galvanized (Electro-galvanized or hot-dip galvanizing) formed.
Physical Properties: galvanized steel wire surface smooth, bright and clean, there is no crack, the festival, from the thorn injuries and rust, zinc coating uniformity, strong adhesion, corrosion resistance and lasting strength, excellent toughness and elasticity. Tensile strength should be between 900Mpa-2200Mpa (wire diameter Φ0.2mm-Φ4.4mm). To reverse the number (Φ0.5mm) in more than 20 times, repeatedly bending in more than 13 times.
Uses: mainly used for cultivation in greenhouses, farms, cotton packing, springs and wire rope manufacturing.
We provide
Galvanized steel wire; wire galvanized;steel wire galvanized;
Galvanized Galvanized steel core wire for use in ACSR;
Galvanizing steel wires for steel reinforced aluminum cable;Galvanizing steel wire;Wire galvanized;Zinc coated steel wire;steel wire;PC steel wire/PC strands/Guy wires;Steel wire rope;
Galvanized steel wire is used for the core of ACSR(Aluminum Conductor Steel Reinforced)
Structure | Nominal diameter(mm) | Diameter(mm) | Tensile Strength (MPa) |
1x3 | 2.9-4.0 | 6.2-8.6 | 1270 1370 1470 1570 |
1X7 | 1.0-4.0 | 3.0-12 | 1270 1370 1470 1570 |
1X19 | 1.0-4.0 | 5.0-20 | 1270 1370 1470 1570 |
1x37 | 1.0-3.0 | 7.0-21 | 1270 1370 1470 1570 |
Technical Data:
Intensity level | Wire | Min. tensile strength | Min. stress with 1% extension | Min. extension percentage when L=250 | Min. No. of 3600 twist |
| mm | Mpa | Mpa | % |
|
General | 1.24~2.25 | 1340 | 1170 | 3.0 | 16 |
| 2.25~2.75 | 1310 | 1140 | 3.0 | 16 |
| 2.75~3.00 | 1310 | 1140 | 3.5 | 16 |
| 3.00~3.50 | 1290 | 1100 | 3.5 | 14 |
| 3.50~4.25 | 1290 | 1100 | 4.0 | 12 |
| 4.25~4.75 | 1290 | 1100 | 4.0 | 12 |
| 4.75~5.50 | 1290 | 1100 | 4.0 | 12 |
High | 1.24~2.25 | 1450 | 1310 | 2.5 | 16 |
| 2.25~2.75 | 1410 | 1280 | 2.5 | 16 |
| 2.75~3.00 | 1410 | 1280 | 3.0 | 16 |
| 3.00~3.50 | 1410 | 1240 | 3.0 | 14 |
| 3.50~4.25 | 1380 | 1170 | 3.0 | 12 |
| 4.25~4.75 | 1380 | 1170 | 3.0 | 12 |
| 4.75~5.50 | 1380 | 1170 | 3.0 | 12 |
Very high | 1.24~2.25 | 1620 | 1450 | 2.0 | 14 |
| 2.25~2.75 | 1590 | 1410 | 2.0 | 14 |
| 2.75~3.00 | 1590 | 1410 | 2.5 | 12 |
| 3.00~3.50 | 1550 | 1380 | 2.5 | 12 |
| 3.50~4.25 | 1520 | 1340 | 2.5 | 10 |
| 4.25~4.75 | 1520 | 1340 | 2.5 | 10 |
| 4.75~5.50 | 1520 | 1270 | 2.5 | 10 |
