Electro Galvanized Steel Wire for Fence and Mesh (factory)
- TIANJIN PORT
- T/T L/C D/P D/A Money Gram Credit Card
You May Like
-
( Factory) Low Carbon Galvanized Wire Submarine Power Transmission Cable
-
( Factory) 0.28mm Low Carbon Wire for Mesh --- SUPPLIER OF BETAFENCE (FACTORY)
-
Optical Fiber Used Galvanized Steel Wire
-
ASTM Galvanized Steel Wire
-
( Factory)/ Hot Dipped Galvanized Steel Wire for ACSR
-
( Factory) ACSR Reninforcing Coring G.L.WIRE 1.57MM
Product Details
| Steel Grade | steel wire rod | Standard | AISI, ASTM, BS, DIN, GB, JIS | |
| Wire Gauge | 0.23mm--3.00mm | Place of Origin | Tianjin, China | |
| Type | Galvanized | Application | Netting | |
| Alloy Or Not | Non-alloy | Model Number | 1006,1008,1010, 1018,Q195,BP05 | |
| Brand Name | JIN HUAYUAN |
Product Description
electro galvanized steel wire for fence and mesh (factory)
We have our own Chemical labotory and Mechanical labotory, so all of our raw material, semi-finished product and finished products are tested,valued and approved to the next processing step .
detailed imformation about the quality of our products
1.standards.we meet GB,YB ,ASTM, DIN,EN ,JIS, KS ,IEC standards
2.raw materials: wire rod 1006.1008.1018.Q195.
zinc with 99.995% of purity
3.range of tensil strength:
| size of products(mm) | tensil strength(mpa) |
| 0.24-1.60 | 350-550 |
| 1.61-3.0 | 400-1200 |

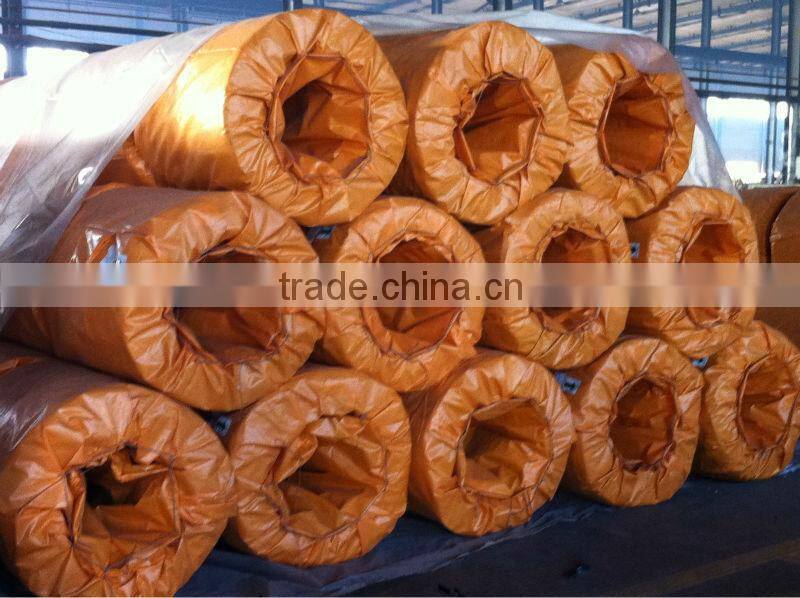

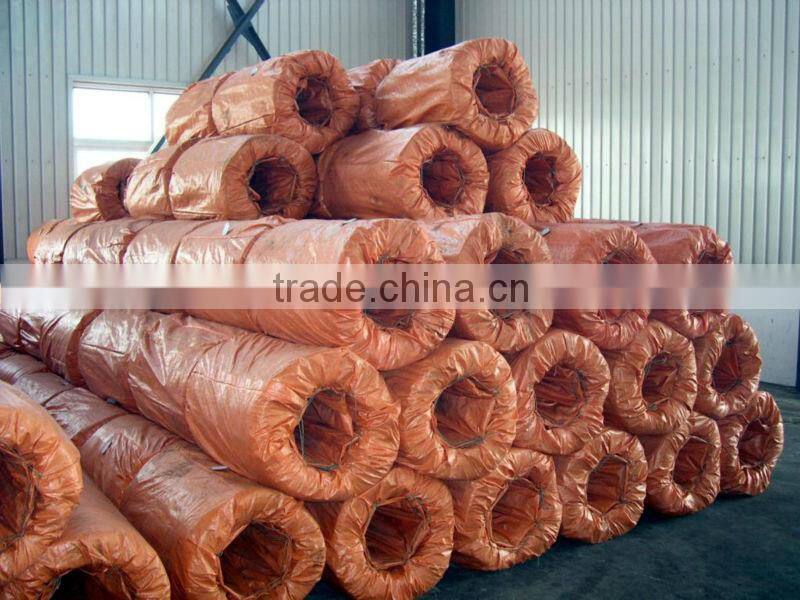

4.packing.
| size of products(mm) | size of coil | spool packing | big coil packing(ID/OD MM) |
| 0.23-0.45 | 8 inches | 1-100kg/spool | |
| 0.46-0.60 | 8 ,12 inches | 1-100kg/spool | |
| 0.61-1.60 | 12,14,16inches | 1-100kg/spool | 250-400/400-700 |
| 1.61-3.00 | 450/800 |
5.zinc coating. 15-40g/m2
6.application
out products-the electro galvanized wire are used in a wide range of areas ,such as detonator string,artware,redrawing for rope, woven mesh, toy,etc.
SUpplier of DAEHO STEEL WIRE IN KOREA , AND METAL LINK , LS CABLE&SYSTEM

ALL PRODUCTS HAVE BEEN APPROVED BY KS, TS, ISO
