OUTDOOR ARMORD OPTICAL FIBER CABLE PRICE
Applications:
1.Buried,aerial.
2.Relay communication system.
3.Core network,metropolitan area network and access network etc.
Standards:
YD/T901-2009
IEC60794-1
Charistics of product:
1.Corrugated steel tape armoring,loose tube stranding with single sheath.
2.Loose tube material has good hydrolysis resistance perfor-mance and high strength.
3.Compact structure,excellent water-blocking performance.
4.Strict manufacturing processes.Good mechanical performance and environmental properties.
Temperature:
Operating temperature:-40°C~+70°C
Structure parameters:
| Fiber count | Structure | Nominal diameter (mm) | Nominal weight (kg/km) | Permitted tensile Long term/ Short term (N) | Permitted crush Long term/ Short term (N) | Bend radius Static state/ Dynamic state (mm) |
| 2-36 | 1+6 | 11.7 | 91 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 38-72 | 1+6 | 12.5 | 107 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 74-84 | 1+7 | 13.6 | 122 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 86-96 | 1+8 | 14.3 | 134 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 98-108 | 1+9 | 14.9 | 146 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 110-120 | 1+10 | 15.5 | 158 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 122-132 | 1+11 | 16.1 | 170 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 134-144 | 1+12 | 16.8 | 185 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 146-216 | 1+6+12 | 17.1 | 193 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 218-288 | 1+9+15 | 19.1 | 237 | 1000/3000 | 1000/3000 | 12.5D/25D |

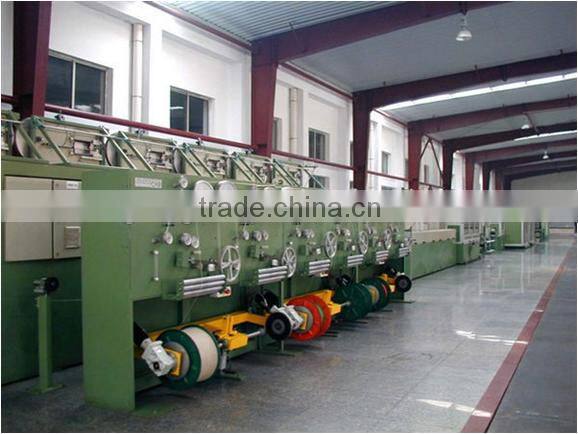

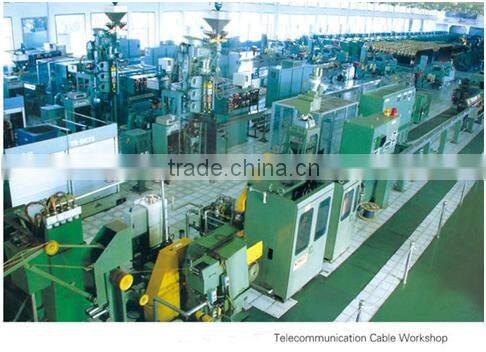

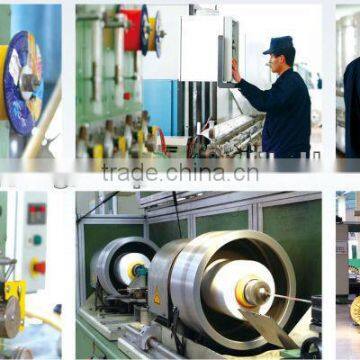

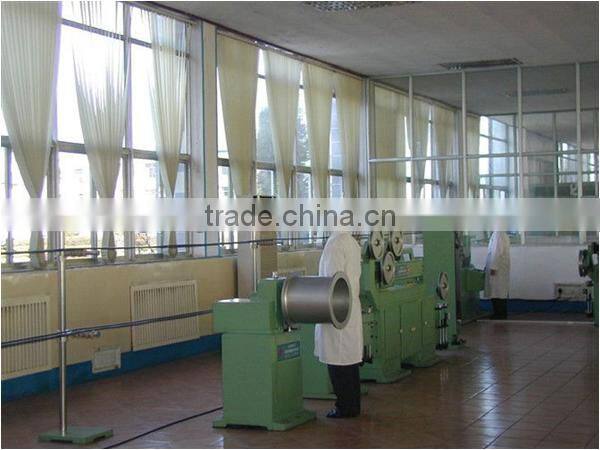

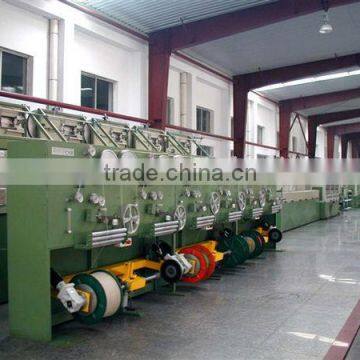

Perfect produce lines:

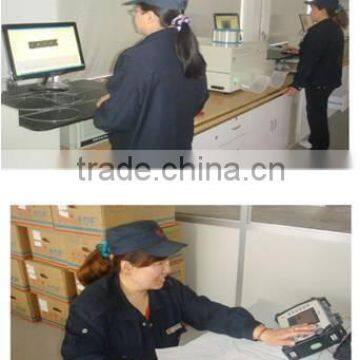

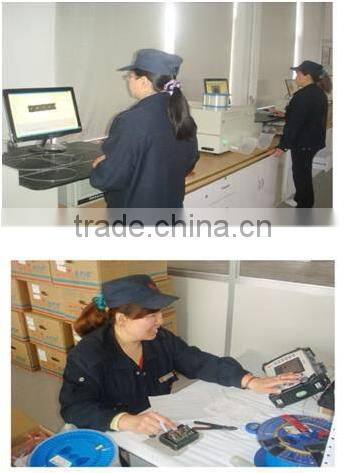

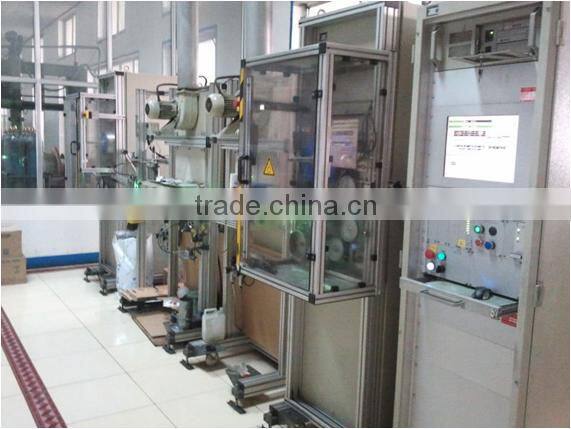

Advanced testing machine:
Sincerely hope this can meet your requirement and let us become good friends. Anything details and requirements, you can email to me. You are welcome. Thanks.
