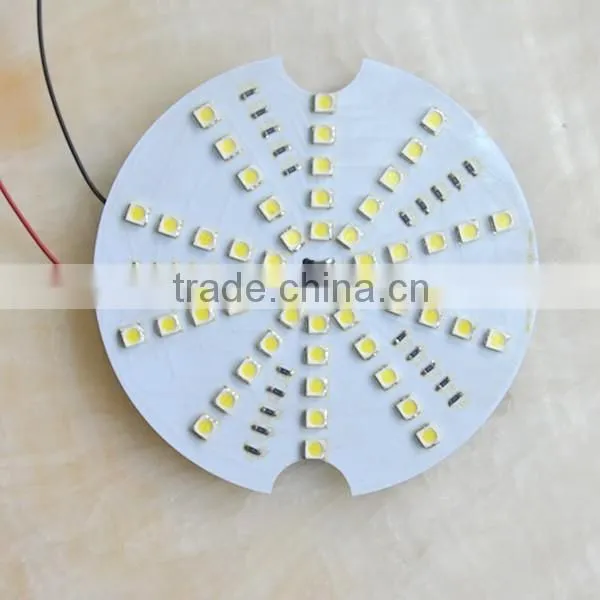

Customziec LED pcb High Power 50w round LED Module
♦ Layer: 1-16 layers ♦ Thickness: 1.6mm ♦ Material: FR4 ♦ Copper thickness: 35um ♦ Mini Hole: 0.2mm ♦ Mini Width/space: 0.1mm/0.1mm ♦Surface Treatment: Lead-Free HASL ♦ Solder mask:white
|
Electronic PCBA PCB assembly, PCB PCBA,PCB design in Sograce
Quote requirement for pcb and pcb assembly:
1) Gerber file and Bom list
2) Clear pics of pcba or pcba sample for us
3) Test method for PCBA
PCB Assembly Technical Request:
- Professional surface-mounting and Through-hole Technology
- Various sizes like 1206, 0805, 0603 components SMT Technology
- ICT ( In Circuit Test), FCT ( Functional Circuit Test) Technoloty
- PCB Assembly with UL, CE, FCC, RoHs approval
- Nitrogen gas reflow soldering technology for SMT
- High standard SMT & Solder Assembly Line
- High density interconnected board placement technology capacity
Maximum Process PCB board Capability of Our Company
Files |
Gerber, Protel, Powerpcb, Autocad, Cam350, etc |
Material |
FR-4, Hi-Tg FR-4, Lead free Materials (RoHS Compliant) , CEM-3, CEM-1, Aluminium, High frequency Material (Rogers, Teflon, Taconic) |
Layer No. |
1 - 30 Layers |
Board thickness |
0.0075"(0.2mm)-0.125"(3.2mm) |
Board Thickness Tolerance |
±10% |
Copper thickness |
0.5OZ - 4OZ |
Impedance Control |
±10% |
Warpage |
0.075%-1.5% |
Peelable |
0.012"(0.3mm)-0.02’(0.5mm) |
Min Trace Width (a) |
0.005"(0.125mm) |
Min Space Width (b) |
0.005"(0.125mm) |
Min Annular Ring |
0.005"(0.125mm) |
SMD Pitch (a) |
0.012"(0.3mm) |
pcb with green solder mask and LF-FREE surface finishing BGA Pitch (b) |
0.027"(0.675mm) |
Regesiter torlerance |
0.05mm |
Min Solder Mask Dam (a) |
0.005"(0.125mm) |
Soldermask Clearance (b) |
0.005"(0.125mm) |
Min SMT Pad spacing (c) |
0.004"(0.1mm) |
Solder Mask Thickness |
0.0007"(0.018mm) |
Hole size |
0.01"(0.25mm)-- 0.257"(6.5mm) |
Hole Size Tol (+/-) |
±0.003"(±0.0762mm) |
Aspect Ratio |
6:01 |
Hole Registration |
0.004"(0.1mm) |
HASL |
2.5um |
Lead free HASL |
2.5um |
Immersion Gold |
Nickel 3-7um Au:1-3u'' |
OSP |
0.2-0.5um |
Panel Outline Tol (+/-) |
±0.004''(±0.1mm) |
Beveling |
30°45° |
V-cut |
15° 30° 45° 60° |
Surface finish |
HAL, HASL Lead Free, Immersion gold, Gold plating, Gold finger, immersion silver, immersion Tin, OSP, Carbon ink, |
Certificate |
ROHS ISO9001:2000 TS16949 SGS UL |
Special requirements |
Buried and blind vias, Impedance control, via plug, BGA soldering and gold finger |
Customziec LED pcb High Power 50w round LED Module
Our OEM/ODM design team has the expertise to rapidly prototype upon the approval of finalized specifications.
In addition, the winning of ISO9001 certification ensures the exactitude of our research and development procedures
with the highest product quality. For complete customer satisfaction, we also provide an extended product service and warranty program.
OEM & ODM Orders are Welcome.
We have in house workshop for one stop shop service for contract manufacturing with more 800 employees in China
OEM (We manufacture according to your design - BOM, Gerber file and testing procedures, while providing you best recommendations for easy manufacturing and cost saving):
- Component sourcing and procurement
- PCB Manufacturing
- Component Assembly (PCBA – SMT & Through Hole parts)
-
Chip-on-board (COB)
Surface-mount technology (SMT)
Ball-grid array (BGA)
Through-hole - Plastic Enclosure (Mould) Manufacturing
- Metal Enclosure (Tool) Manufacturing
- Cable & Wire harness Assembly
1.Circuit board assembly fabrication: One-stop pcb assemblies service, PCB design, PCB layout, PCB manufacturing, PCB Assemblies, components sourcing, PCBA Function Test, design solution.
2.Quote Needed: 1.PCB Gerber File; 2.Bom List for PCB Assembly; 3. Send us a sample of PCBA to make the exactly same for you. 4. Test Method for PCB Assembly.
3.PCB+COMPONENTS+SMT the whole service with top quality and very competitive price for you; OEM design and custom made products are welcomed.
Customziec LED pcb High Power 50w round LED Module
1.Circuit board assembly fabrication: One-stop pcb assemblies service, PCB design, PCB layout, PCB manufacturing, PCB Assemblies, components sourcing, PCBA Function Test, design solution.
2.Quote Needed: 1.PCB Gerber File; 2.Bom List for PCB Assembly; 3. Send us a sample of PCBA to make the exactly same for you. 4. Test Method for PCB Assembly.
3.PCB+COMPONENTS+SMT the whole service with top quality and very competitive price for you; OEM design and custom made products are welcomed.
Sograce International Corporation Limited is a professional PCB manufacturer for producing all kinds of single side, doubleside and multilayer pcb, also provide assembly service with 10 years experience.We have a variety of advanced production equipments, excellent engineering and technical personnels, accompany with the mature management and service system.Our pcbs meet IEC,IPC,DIN,MIN standard, behaves ISO9001 quality system ,UL and Rohs certificate. Fast lead time and competitive price with high quality are our advantages. PCB lead time is within 10days,and most can be within 7days. We also established a prototype team to develop customer’s prototype needs. prototype lead time often can be within 3days.
CHOOSE SOGRACE, CHOOSE THE BEST PCB BOARD !!!
If you have any question, please feel free to contact me anytime ,NOW send me your INQUIRY!!
