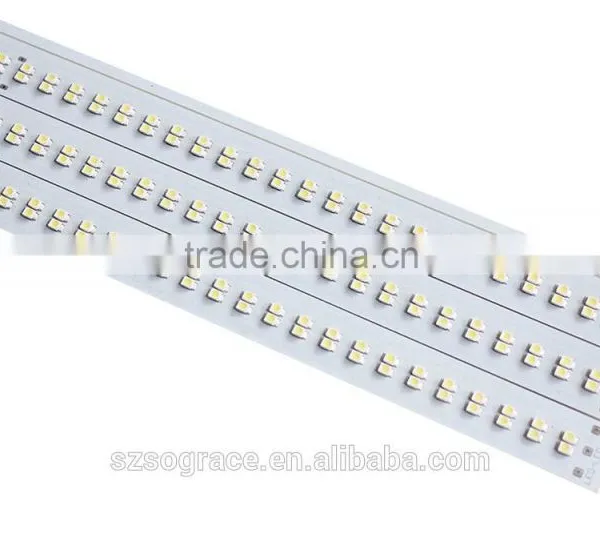

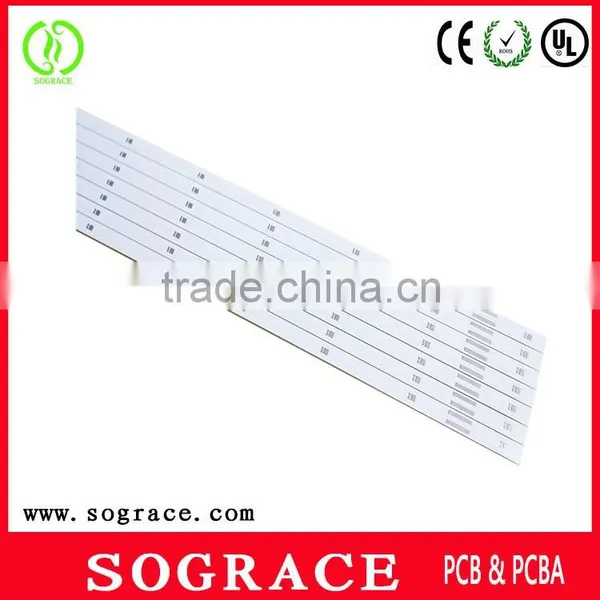

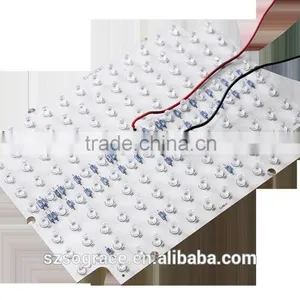

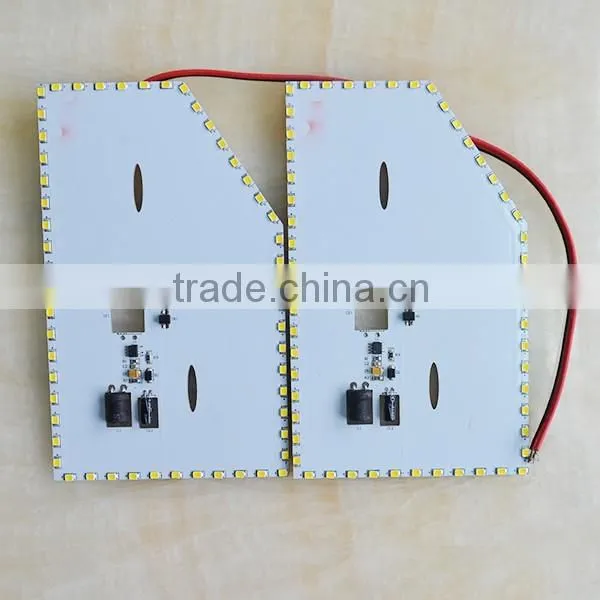

2016 New high quality 94v0 1.6mm led pcb board
LED PCB & led pcb assembly & pcb design & reverse engineering:
1. LED PCBA manufacture
2.Competitive pricing and good quality
3.Sevice in components purchase
4.From prototype to mass production
pcb manufacturing companies from PCB assembly to final case assembly:
1.Chip-on-board (COB)
2.Surface-mount technology (SMT)
3.Ball-grid array (BGA)
4.Through-hole
LED PCB Assembly Technical Request:
- Professional surface-mounting and Through-hole Technolog
- Various sizes like 1206, 0805, 0603 components SMT Technology
- ICT ( In Circuit Test), FCT ( Functional Circuit Test) Technoloty
- PCB Assembly with UL, CE, FCC, RoHs approval
- Nitrogen gas reflow soldering technology for SMT
- High standard SMT & Solder Assembly Line
- High density interconnected board placement technology capacity
Files |
Gerber, Protel, Powerpcb, Autocad, Cam350, etc |
Material |
FR-4, Hi-Tg FR-4, Lead free Materials (RoHS Compliant) , CEM-3, CEM-1, Aluminium, High frequency Material (Rogers, Teflon, Taconic) |
Layer No. |
1 - 30 Layers |
Board thickness |
0.0075"(0.2mm)-0.125"(3.2mm) |
Board Thickness Tolerance |
±10% |
Copper thickness |
0.5OZ - 4OZ |
Impedance Control |
±10% |
Warpage |
0.075%-1.5% |
Peelable |
0.012"(0.3mm)-0.02’(0.5mm) |
Min Trace Width (a) |
0.005"(0.125mm) |
Min Space Width (b) |
0.005"(0.125mm) |
Min Annular Ring |
0.005"(0.125mm) |
SMD Pitch (a) |
0.012"(0.3mm) |
pcb with green solder mask and LF-FREE surface finishing BGA Pitch (b) |
0.027"(0.675mm) |
Regesiter torlerance |
0.05mm |
Min Solder Mask Dam (a) |
0.005"(0.125mm) |
Soldermask Clearance (b) |
0.005"(0.125mm) |
Min SMT Pad spacing (c) |
0.004"(0.1mm) |
Solder Mask Thickness |
0.0007"(0.018mm) |
Hole size |
0.01"(0.25mm)-- 0.257"(6.5mm) |
Hole Size Tol (+/-) |
±0.003"(±0.0762mm) |
Aspect Ratio |
6:01 |
Hole Registration |
0.004"(0.1mm) |
HASL |
2.5um |
Lead free HASL |
2.5um |
Immersion Gold |
Nickel 3-7um Au:1-3u'' |
OSP |
0.2-0.5um |
Panel Outline Tol (+/-) |
±0.004''(±0.1mm) |
Beveling |
30°45° |
V-cut |
15° 30° 45° 60° |
Surface finish |
HAL, HASL Lead Free, Immersion gold, Gold plating, Gold finger, immersion silver, immersion Tin, OSP, Carbon ink, |
Certificate |
ROHS ISO9001:2000 TS16949 SGS UL |
Special requirements |
Buried and blind vias, Impedance control, via plug, BGA soldering and gold finger |
Semshine possessed a design team with over 3 years experience, can supply PCB design, manufacture, and PCB assembly to all our customers.
• Offer PCB layout design, BOM list, and PCB schematic diagram;
• PCB copy, design and PCB modify;
• Be good at complex and multilayer PCB copy with 18 layers lines;
• Using all related software to cater to different customers;
• Using high precision scanner, reach 99% accuracy.
2016 New high quality 94v0 1.6mm led pcb board
- Waterproof SMD Rigid and flexible led strip lights with different length available
- wide lighting angle and different colors of single colors and RGB color.
- OEM/ODM are welcome.
- Print your Logo on PCB board are available
The FAQ of 2016 New high quality 94v0 1.6mm led pcb board
1.What service can you provide?
We can provide PCB gerber file design,Copy and Clone,OEM and ODM service.
Not only produce PCB,PCB Assembly,but also led strip light and led pcb board.
2.Are my design files secure when I send them to you?
Your files are held in complete safety and security, Your files are never shared nor will any third parties have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.
3.For small quantity orders, can you produce prototype PCBs?
Yes. we have the capability to produce PCBs in any amount. But the greater the quantity, the greater the cost savings.
4.Do you have an order minimum?
We accept order with as low as a quantity of 1 (piece or panel).
5.What is the standard thickness of laminate that Sograce Limited uses?
1.6 mm (0.063″)
6.What are all your options for laminate thickness?
We can handle the following nonstandard thicknesses: 0.2mm (0.0079″), 0.4mm (0.016″), 0.6mm (0.024″), 0.8 mm (0.032″), 1.0 mm (0.04″), 1.2mm (0.047″), 2.0mm (0.079″), and 2.3mm (0.091″).
7.Do you have the capability of manufacturing high frequency materials?
While expensive, we can manufacture these materials. Contact us for pricing prior to placing an order.
8.What options exist for the thickness of copper?
0.5 oz, 1.0 oz, 1.5 oz, 2.0 oz, 2.5 oz, 3.0 oz, 3.5 oz, 4.0 oz, 4.5 oz and 5.0 oz.
9.What are the color options for PCB solder masks?
Green, black, blue, red green, yellow and white.
10.What are the options for surface finishes?
The options include HASL, Immersion gold, Immersion tin, Immersion Silver, OSP, and HASL lead free. Call for other options.
2016 New high quality 94v0 1.6mm led pcb board
We provide the best package:
Inner vaccum packing
outer standard carton box lined with poam.
We will send the boards to you by DHL,TNT,UPS,FEDEX
and so on to saving the transport time.
♣ Sograce Technology Corporation Limited is a professional PCB manufacturer for producing all kinds of single-side, double-side and multilayer pcb, and as well as assembly service. Also, we can
design any led pcb about light, provideing the whole service as “PCB + LED + SMT” with top quality.
♣ Established in June,2006 and our factory is located in Wanxia Industrial Zone, Xinhe Rd, Shajing Street, Baoan District, Shenzhen, China. We have a variety of advanced production equipment , first - class technology and professional production personnel.
♣ Fast lead time and competitive price with high quality are our advantages. Production capacity is 20,000M2 per month, the PCB prototype needs, and the prototype needs, and the prototype lead time often can be within 3days.
CHOOSE SOGRACE, CHOOSE THE BEST PCB BOARD !!!
If you have any question, please feel free to contact me anytime ,NOW send me your INQUIRY!!
Skype: sograce-sales06
Office: +86 755 29309730
Mobil: 0086 183 1662 9197
2016 New high quality 94v0 1.6mm led pcb board
