1.Power Alumium LED Round PCB
2.UL ROHS ISOCertificate100%E-tested
3.Survice by quality Win by price
4.Delivery5~7days

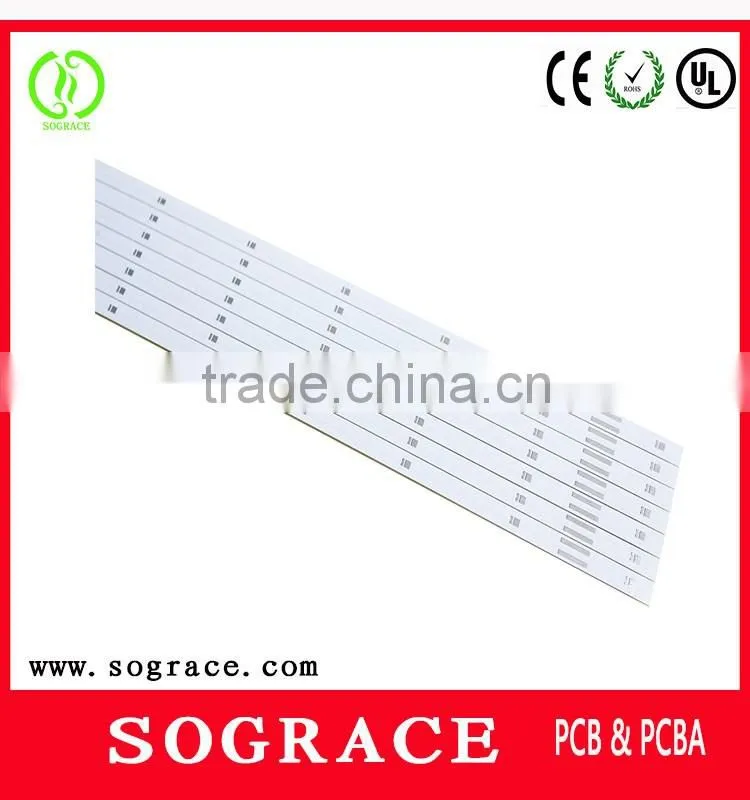

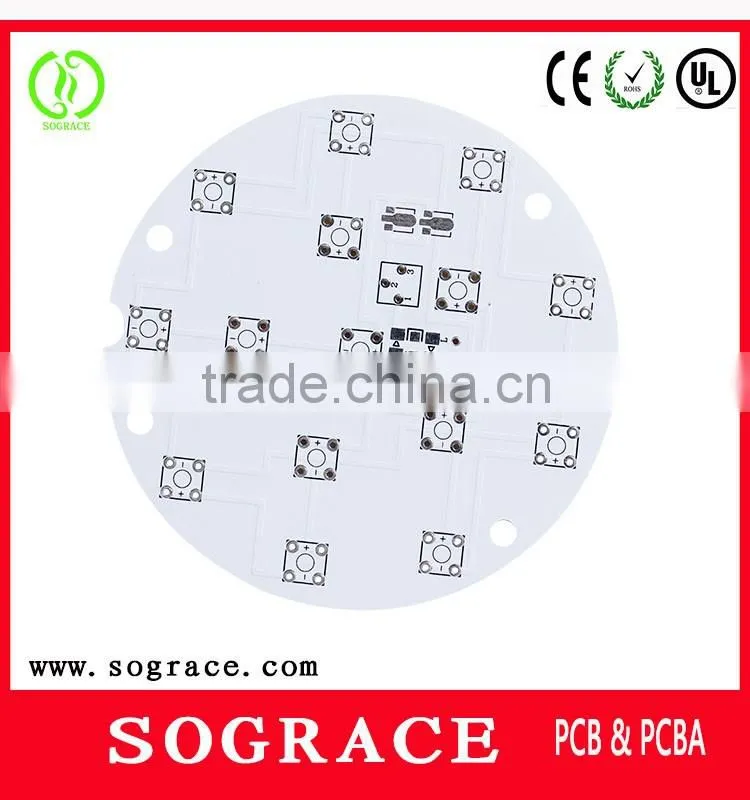

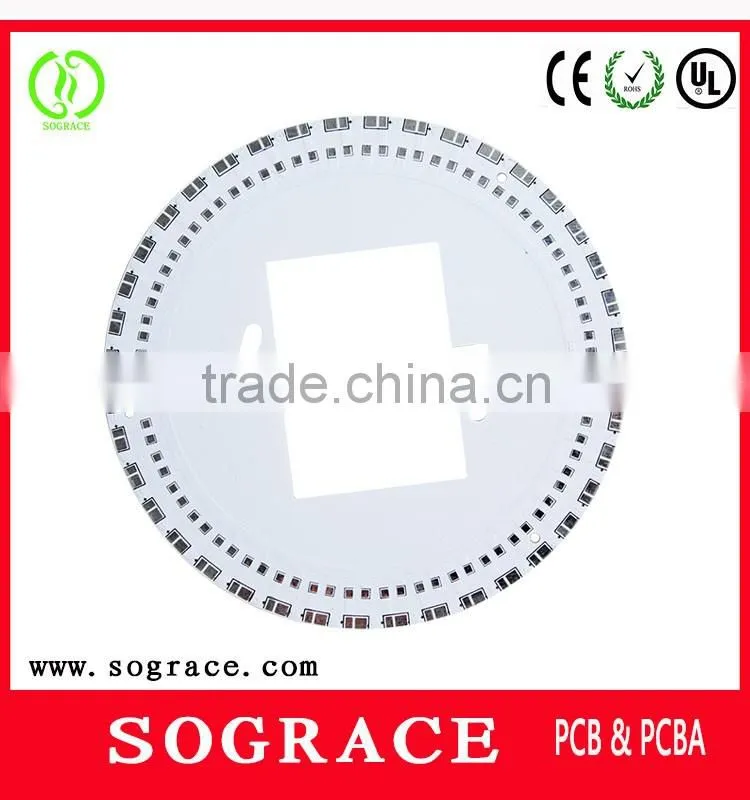

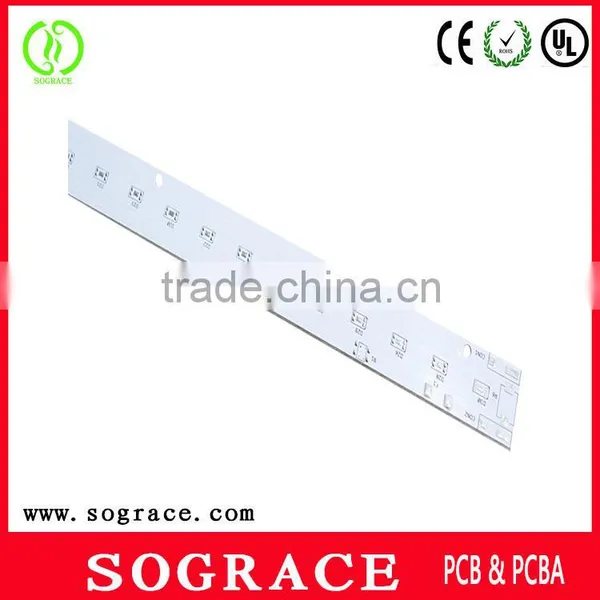

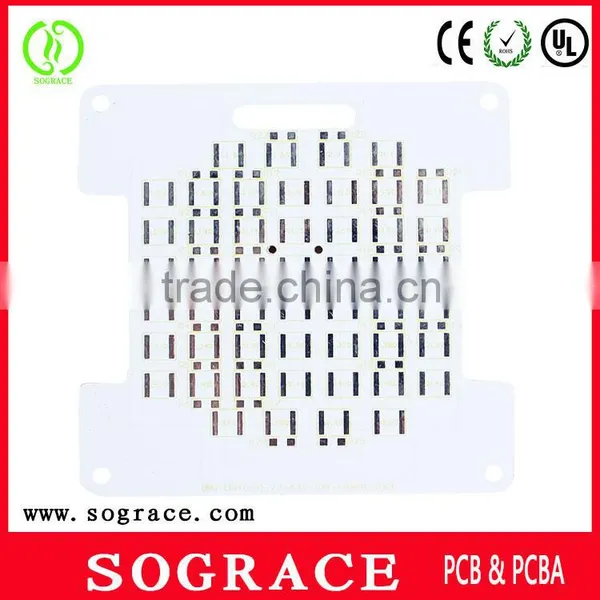

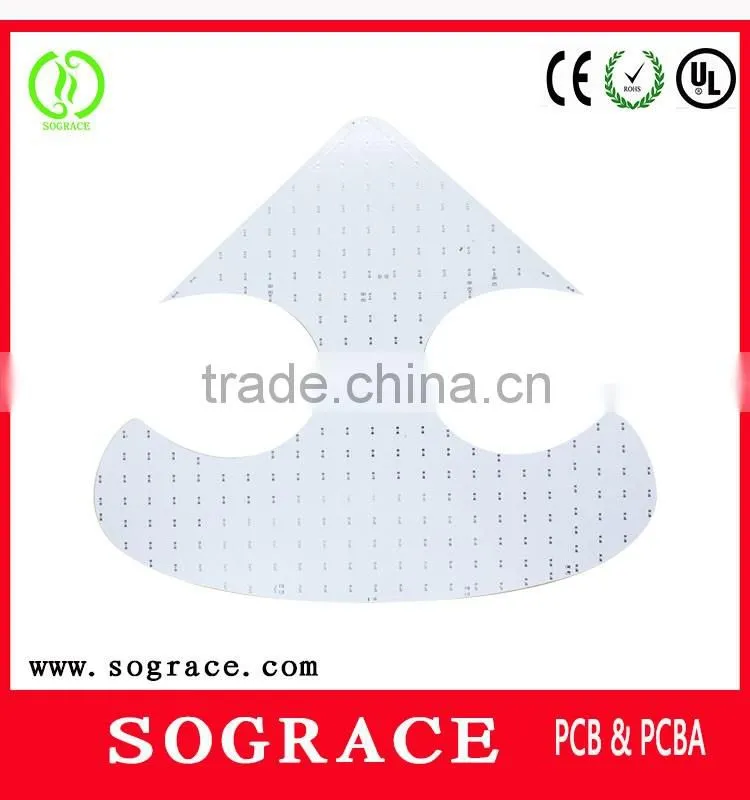

Aluminium pcb for led lamp,china aluminium pcb,led alumium pcb board
Aluminum PCB is one of metalbased pcb,including copper foil,thermal insulating layer and metal substrate,its structure divide into three layers:
1. Circuit layer: the equivalent of an ordinary PCB,copper thickness from 1oz to 10oz.
2. Insulation layer: Insulation is a layer of thermal insulating material with low thermal resistance.
Thickness: 0.003 "to 0.006" inch is the aluminum pcb core technology.
3. Based Layer: a metal substrate,usually aluminum or copper may be chosen.
Peculiarity of Aluminum PCB:
High Heat dissipation, Electromagnetic Shielding, High Mechanical Strength, Excellent processing performance.
Application: Products are applied to a wide range of Hightech industries such as:telecommunication, computer application,Medical devices,lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect.
Specifications of led alumium pcb board:
Product Type |
Al Clad PCB 1 layer~2 layer |
Maximum Panel size |
20"*24" (1170mm*600mm) |
Copper thickness |
0.5oz, 1oz, 2oz, 3oz and 4 oz |
Dielectric Thickness |
0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm |
Substrate Core Thickness |
0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm,2.0mm, 3.0mm and 3.2mm |
Finished Board Thickness |
0.4mm To 4.0mm |
Thickness Tolerance |
+/-10% |
Aluminum Machining |
Drilling,Tapping,Milling,Routing, Die-Punching,break-off tab available |
Min. Finish hole size |
0.25mm |
ing voltage |
2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric) |
Min.Track Width |
0.2mm (8mils) |
Min.Track gap |
0.2mm (8mils) |
Min. SMD pad pitch |
0.2mm (8mils) |
Surface Finishing |
HASL, HASL Leadfree, Immersion gold, Flash gold, OSP |
Soldermask color |
White, Black, others Available |
Legend color |
Black, White, others Available |
Etest |
YES |
Rohs |
YES |
Reference Standard |
IPC-A-600G Class 2 |
Special holes |
Spot facing, Cup holes |
Data Input |
Gerbers, AutoCad, Cam350, PROTEL 99SE,PROTEL DXP, |
Quotation time:
1. For PCB & FPC: quotation within 1 hours if all information are clear
2. For PCBA: quotation within 2 days if all information are clear
Quote Requirements For PCB and PCB Assembly :
- Gerber File and Bom List;
- Quote Quantity;
- Technical requirements for quoting reference;
- Clear pictures of PCB or PCB Assembly sample if available.
- Inspection method for PCB Assembly.
Lead Time For Production Orders:
|
Sample Lead time(days) |
Mass production lead time(days) |
Single sided PCB |
1~3 |
4~7 |
Double sided PCB |
2~5 |
7~10 |
Multilayer PCB |
7~8 |
10~15 |
PCB and Assembly |
8~15 |
15~30 |
Sograce International Corporation Limited is a professional PCB manufacturer for producing all kinds of single side, double-side and multilayer pcb, also provide assembly service with 10 years experience.We have a variety of advanced production equipments, excellent engineering and technical personnels, accompany with the mature management and service system.Our pcbs meet IEC,IPC,DIN,MIN standard, behaves ISO-9001 quality system ,UL and Rohs certificate. Fast lead time and competitive price with high quality are our advantages. PCB lead time is within 10days,and most can be within 7days. We also established a prototype team to develop customer’s prototype needs. prototype lead time often can be within 3days.
