Help CenterChina Hot Sale Magnetic Levitation Test Vibrating Screen
Related Products
-
CW-200 CE&ISO Testing Rotary Electric Sieve VibratorUS$ 650 - 1,300MOQ: 1 Set -
Standard Laboratory Testing Vibration SieveUS$ 700 - 2,500MOQ: 1 Unit
-
Testing Rotary Electric Sieve VibratorUS$ 700 - 2,500MOQ: 1 Unit
-
Testing Electric Screen VibratorUS$ 700 - 2,500MOQ: 1 Unit
-
CW Made Vibrator Force Concrete Paving Brick Vibration TableUS$ 1,000 - 2,000MOQ: 1 Set
Specifications
1.used for laboratory,high efficiency2.BV/ISO/SGS certificate
3.no blockage of mesh
4.aotumatic operation
Professional Manufacturer for 27th years

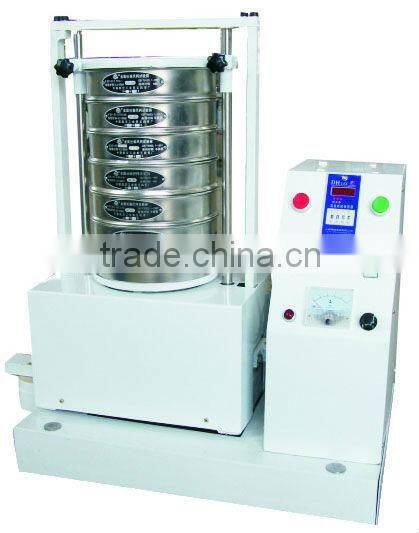

Brief Introduction- Food Powder Test Sieve machine
This sieve consisted of three functions
1.Vertical vibration
2.Horizontal movement
3.Left and right swing.
This makes the handling material get a rotate movement. Any handling material could not be residual on the screen mesh.
The finest powder for screen is 5um.
Advantage
This Vibrating sieve is a New type Hi-tech product, which are extensively used in scientific laboratories and quality inspection department, can deal with materials finer than 325mesh that common test sieve can not handle of. eg: Alumina powder, copper powder, nickel powder, aluminum powder, pigment, quartz sand, electrode material etc.
Main Technical Parameter
| Item | Name | Unit | Data |
| 1 | Layers | layer | 1-8 |
| 2 | Diameter | mm | 200 |
| 3 | Granularity | mm | 0.01-20 |
| 4 | Feeding capacity(each time) | g | 300 |
| 5 | Vibration frequency | R/min | 3000 |
| 6 | Voltage | V | 220 |
| 7 | Speed | r/m | 1400 |
| 8 | Power | kw | 0.37 |
| 9 | Dimension | mm | 700*480*720 |
| 10 | Weight | kg | 75 |

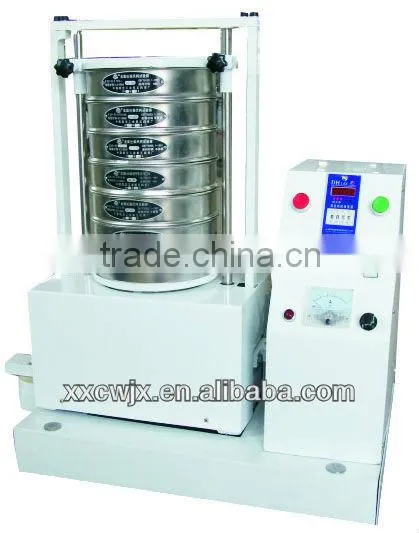

Product picture
About us
FAQ
Q:What factors I need to get a quotation?
A: Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of DZJX for most of our customers at home or abroad. With our experienced quality control team, we are trying to offer most of our customers the product with bset quality. However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q: How could I trust your promise?
A: Firstly, you may check the assessment on our website certified by the appraisal agency Bureau Veritas;
secondly, we attend at least 4 to 6 international industry exhibitions held in China annually, like the Food Ingredients China, China International Battery Fair, CPhI, ICSE BioPh China, ICIF China, etc. We usually met our customers there for negotiation;
Thirdly, company inspection always available, if you have any representative or you would like to come to our site, we offer free shuttle from Zhengzhou airport to our company, welcome your visit.
As the professional manufacturer of vibrating & transporting equipments since 1987, we are pleased to offer you the best product in a competitive price.
Quotation of vibrating equipments in other type is also available, please feel free to contact us if you have any request.
Our service
1. Can design according to the buyers requirements
2. Provide drawings and/or video installation and operation manual
3. Are always at your answer
