Experiment Screen Shaker for Size Separation
- Qingdao or others ports per order
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Circular | |
| Application | Other, sieving and separation device | Place of Origin | Henan, China | |
| Brand Name | CW | Model Number | CW200 | |
| Voltage | 220v, or others as per order | Power(W) | 0.125kw | |
| Dimension(L*W*H) | 360*300*736mm | Weight | 25kg | |
| Certification | CE & ISO90001 | Warranty | 14 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Easy setup2.Low noise, high efficiency
3.Used in labs of many fileds
Introduction and Application
CW-200 testing sieve/screen is made for the purpose of particles size distribution measurement, analysis of impurity content or percentage of solid content in liquid.
It is widely used in scientific laboratories and quality inspection departments.
It is applicable in labs of many fields such as geology, metallurgy, food, chemical, construction, cement, pharmaceutical and many other industries.
Features
1) Compact structure, low noise, high efficiency, and high degree of precision.
2) According to different materials features, customers can set different working time by adjusting electric time controller so that the analysis errors could be reduced to minimum and therefore guarantee analysis results unanimous.
Technical parameter
| Layers | 1-8 | Layer(s) |
| Diameter | 200 | mm |
| Granularity | 0.038-3 | mm |
| Noise | ≤50 | dB |
| Feeding Capacity(one time) | ≤200 | g |
| Amplitude | ≤5 | mm |
| Voltage | 220 | V |
| Rotate Speed | 1450 | r/min |
| Power | 0.125 | kw |
| Overall Dimension | 360*300*736 | mm |
| Total Weight | 25 | kg |

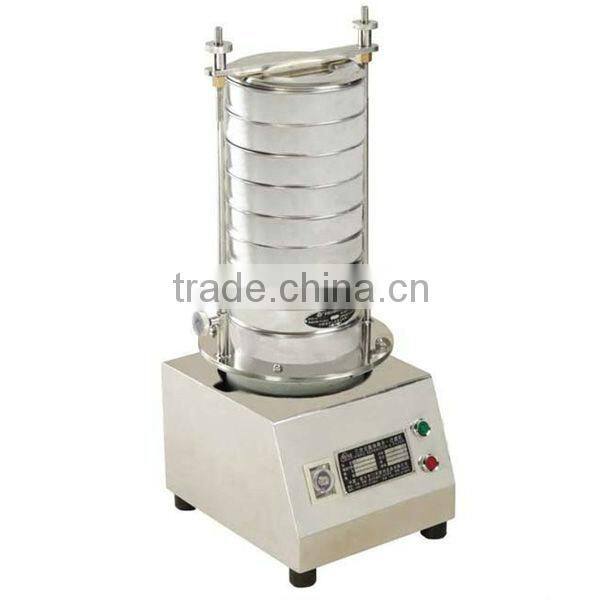

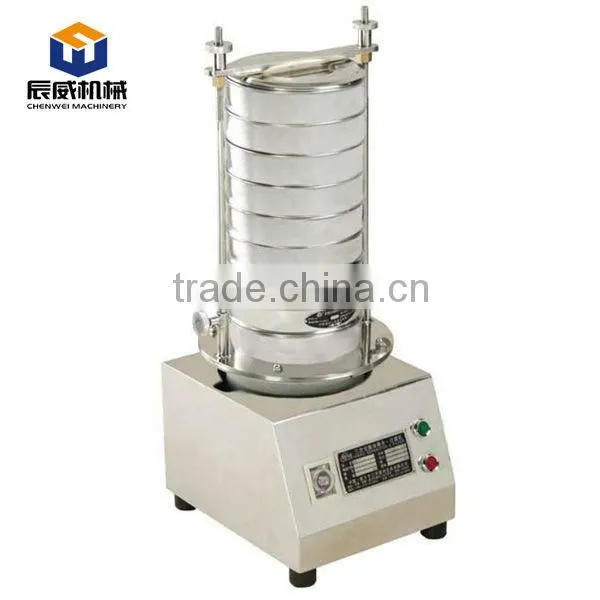

Machine Picture

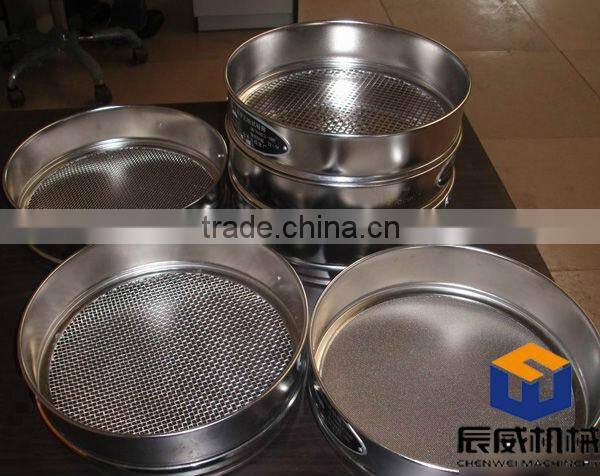

Different size of mesh
