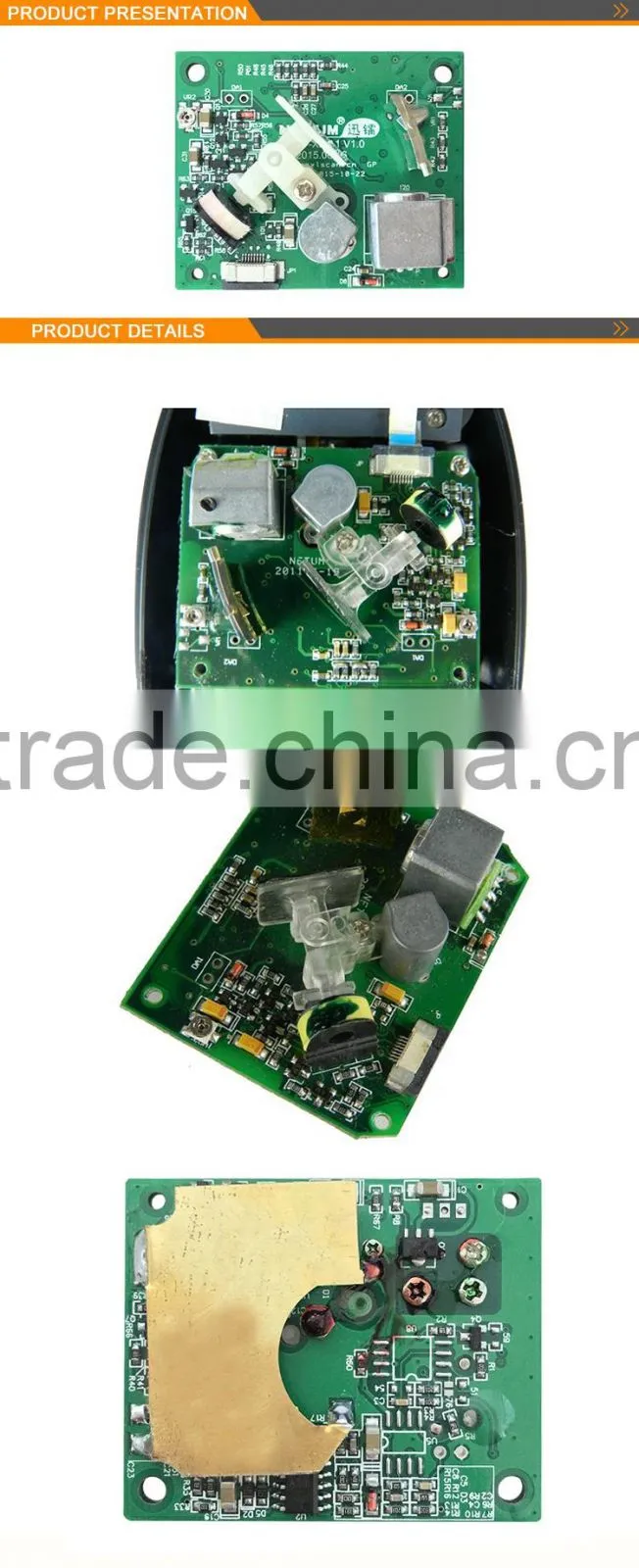

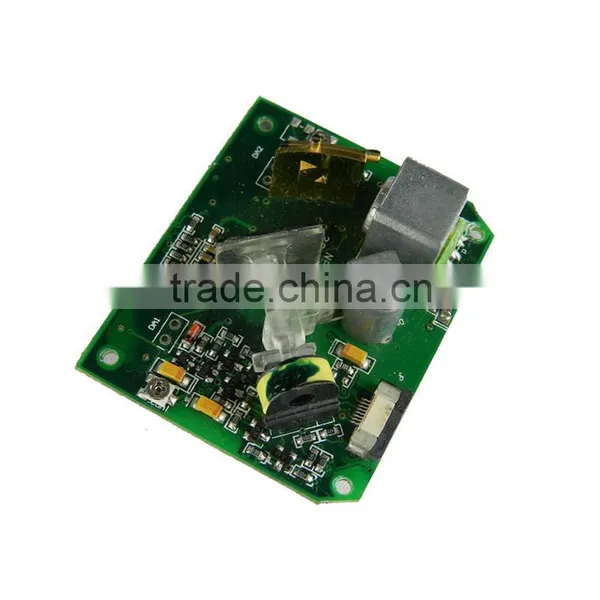

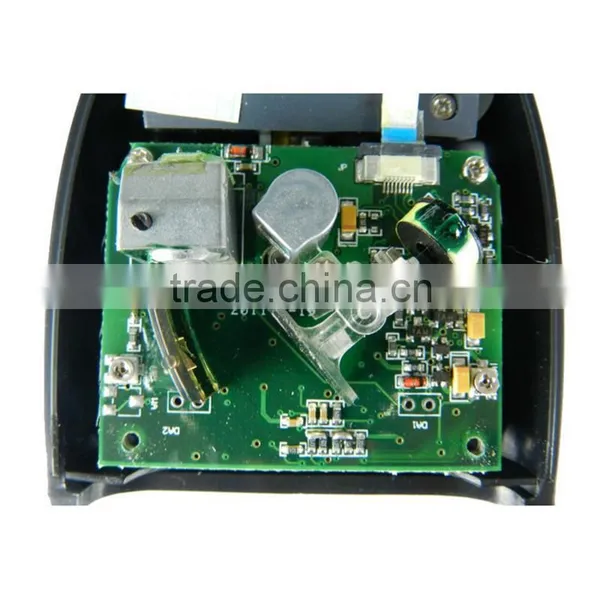

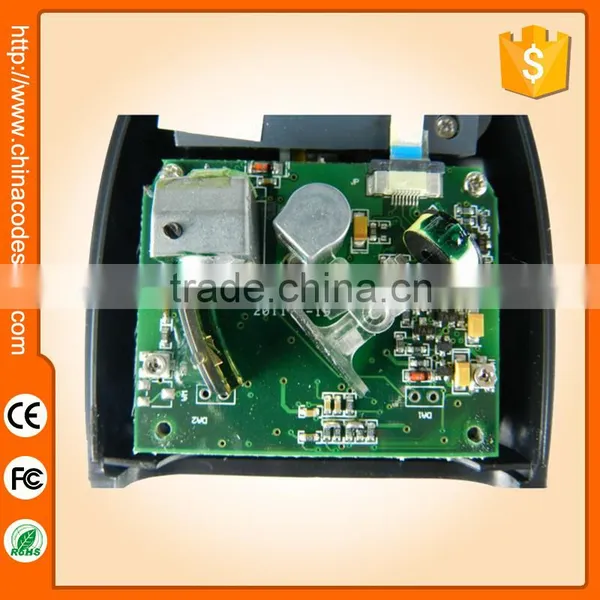

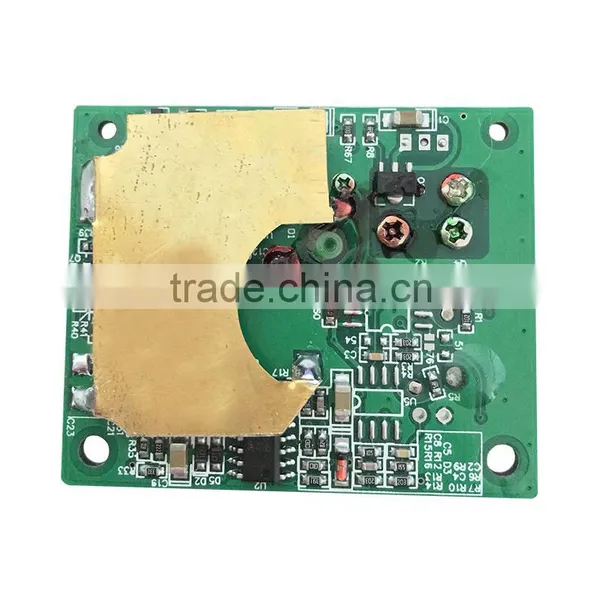

NT-E101B 1D barcode handheld Laser barcode scanner Module
Specifications
Advantages:
1. Factory direct sale, lowest price
2. Scan depth of field up to 800mm.
3. Steady barcode reading performance and works well with decoding and other electrical parts.
4. Full independent intellectual property rights.
5. Quality assurance; all products manufactured in Netum have been individually and strictly tested.
NT-E101B 1D barcode scanner engine, OEM Laser barcode scanner module
NT-E101B | ||
physical |
Dimension |
L 5 cm x W 4 cm x H 1.7cm |
Weight |
65g |
|
|
Technical parameters
|
Light source |
Visible laser diode (650nm) |
Symbologies |
1D codes |
|
Reading preciseness |
0.076mm (3mil) |
|
Interface |
8-Pin ZIF Adapter, industry standard output |
|
Reading speed |
200 times/second |
|
Reading distance |
10mm-800mm |
|
Scan Angle of of dip |
∠ 45º |
|
Reading angle of elevation |
∠ 60 º |
|
Laser Energy |
0. 7mw±10%; λ=650nm |
|
Print Contrast |
≥30 º |
|
Power source |
Input Voltage:5V DC |
|
Input current: 75 mA; 100mA max | ||
Standby current:<10 mA max | ||
Current:100 mA max | ||
Lifetime |
48000 hours |
|
Working environment |
Humidity |
5% ~ 95% (Without condensation) |
Operating temperature |
-20°C to 45°C (-4°F to 113°F) |
|
Storage Temperature |
-20°C to 45°C (-4°F to 113°F). |
|
Light intensity |
Daylight, 4000LUX |
|
•comercial POS system(supermakets)
•warehousing and logistics
•librariries
•banks and telecom
•transportation
•postal service
•Industrial and manufacturing management
