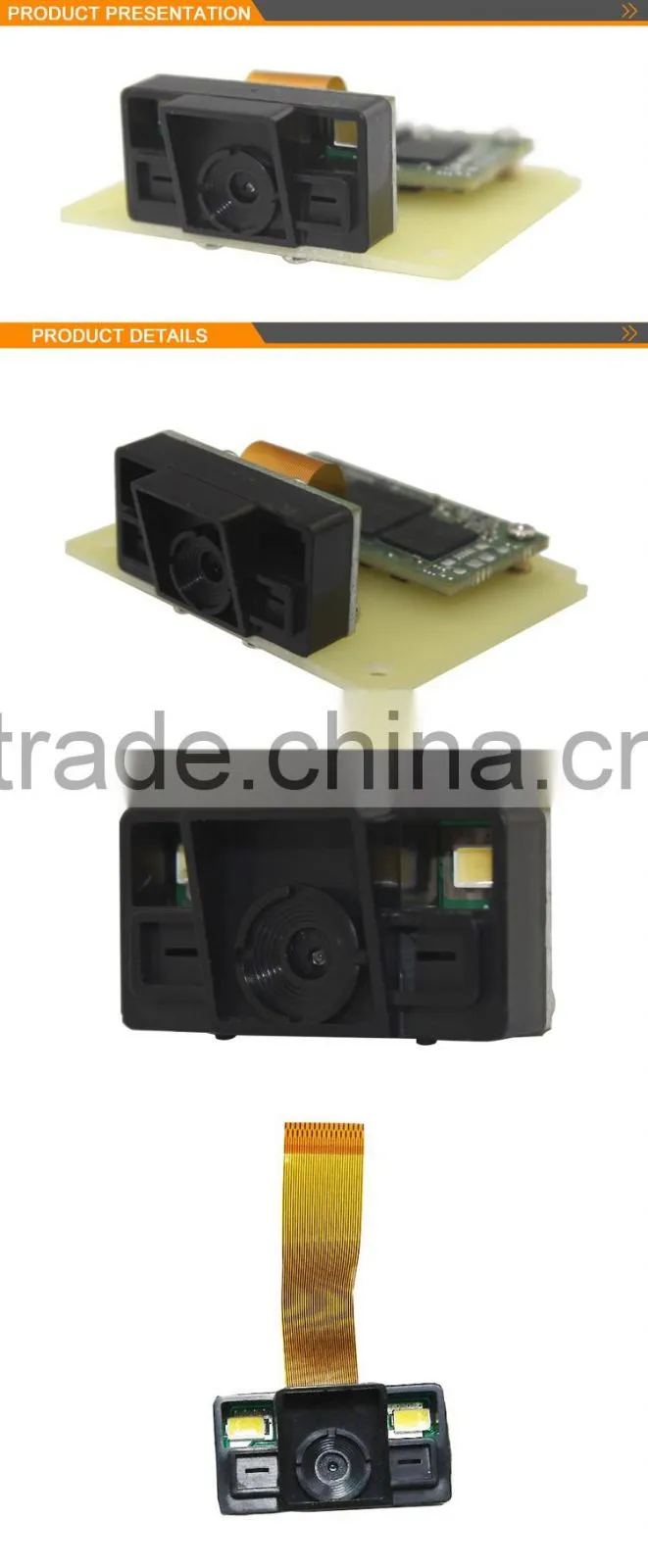

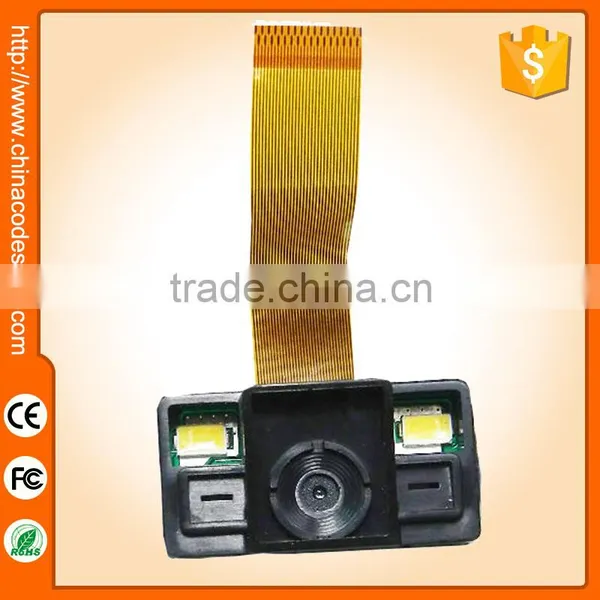

NT-80 2D handheld Laser barcode scanner Module
Principle of Window Design of 2D Barcode Scanner Engine | |
1. Opaque parts of window should not obscure illumination light, aiming light and lens. | |
2. Apply high wear-resistant material, such as double-sided hard coating material. | |
3. It is better to make window glass parallel to lens. Window must be perpendicular to the front plate of NT-80 and distance between them should not exceed 1mm. For tilt design , the distance must be more than 1mm. Meanwhile, the distance and tilt angle ensure the light is not reflected into lens by the window glass. | |
Performance | |
Illumination |
630 nm LED |
Aiming |
528 nm LED |
Field of View |
34° V x 46° H( (Vertical*Horizontal) |
Scan Angles |
Tilt: 360°, Pitch: ±65°, Skew: ± 60° |
Symbologies | |
1D |
UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, RSS variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32 |
PDF417 (and Variants) |
PDF417, microPDF417 and composite codes |
Postal |
U.S. Postnet and Planet, U.K., Japan, Australian, and Dutch |
2-D |
MaxiCode, DataMatrix (ECC 200), and QR Code |
Print Contrast |
25% minimum reflectance |
Motion Tolerance |
Horizontal velocity: 5 in. (12.7 cm) per second |
Motion Tolerance |
Horizontal velocity: 5 in. (12.7 cm) per second |
Interfaces Supported |
RS-232C; USB (Standard, IBM SurePOS, Macintosh) |
Imaging Characteristics | |
Image (Pixels) |
0.35 Megapixel 752 pixels H x 480 pixels V |
Graphics Format Support |
Images can be exported as Bitmap, Jpeg, and Tiff |
Image Transfer Speed |
USB 1.1: Up to 12 Megabits/second RS232: Up to 115 kb baud rate |
Image Transfer Time |
Typical USB application is ~ 0.2 seconds with a compressed Jpeg of 100 kb |
User Environment | |
Operating Temperature |
32° to 122° F / 0° to 50° C |
Storage Temperature |
'-40° to 158° F / -40° to 70° C |
Humidity |
5% to 95%, non-condensing |
Drop/Shock Specifications |
Withstands 2000g to concrete |
Ambient Light Immunity |
Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting. |
•comercial POS system(supermakets)
•warehousing and logistics
•librariries
•banks and telecom
•transportation
•postal service
•Industrial and manufacturing management
