Linear Vibrating Sieve for Feed

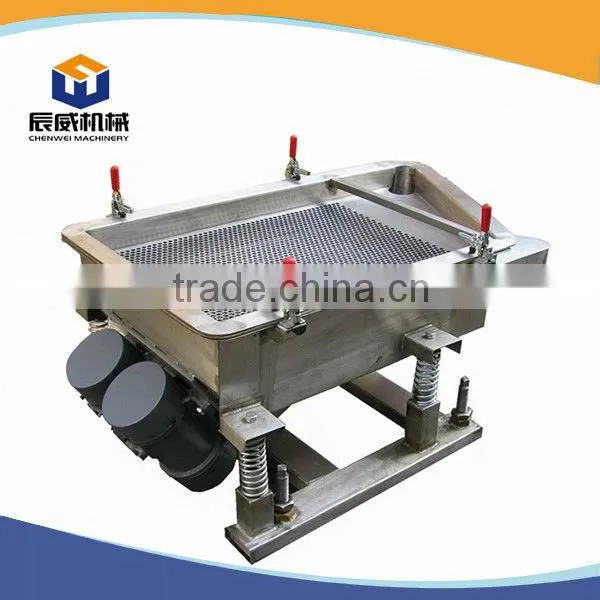

Linear Vibrating Sieve for Feed photo-1
US$ 1,800 - 6,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
CW
Model Number:
CWZX
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name CW
Model Number CWZX
Type Grain Processing Equipment
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Low power consumption
2.Simple structure
3.Linear Vibrating sieve for feed
4.Long service life

Linear Vibrating sieve for feed



Brief Introduction

CWZX series light linear vibrating screen is a standard and universal screening equipment. The movement track of its screen box is close to straight line. Almost all the linear vibrating machine are consisted of the screen box, supporting or hanging device, driving unit, vibration isolation etc.



Working Principle

CWZX series linear vibration screen use vibration motor as vibration source, the materials are rose and moved in the straight at the same time. The material are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different outlet.



Features

Low energy consumption, high efficiency, easy maintenance, whole sealing and no dust emission etc.



Scope of Application

CWZX series light linear is very suitable to screen and grade the powder or granule, and widely used to many industries, such as plastic, grinding, chemical, medicine, building material, food, carbon and chemical fertilizer etc.



Technical Parameter

Model CWZX-520 CWZX-840 CWZX-1030 CWZX-1255 CWZX-1650
Dimension(mm) 500*2000 800*4000 1000*3000 1200*5500 1600*5000
Granularity(mm) 0.074-60 0.074-60 0.074-60 0.074-60 0.074-60
Speed(r/min) 960 960 960 960 960
Amplitude(mm) 4-8 4-8 4-8 4-8 4-8
Deck 1-4 1-4 1-4 1-4 1-4
Power(kw) 2*075 2*1.5 2*1.9 2*2.2 2*3.0

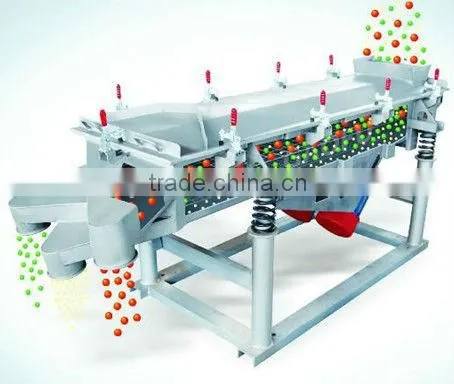

Material movement

Linear Vibrating sieve for feed



Picture Show

Linear Vibrating sieve for feed

Linear Vibrating sieve for feed
