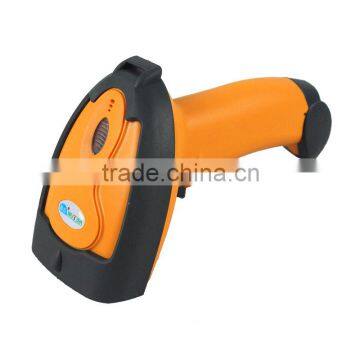

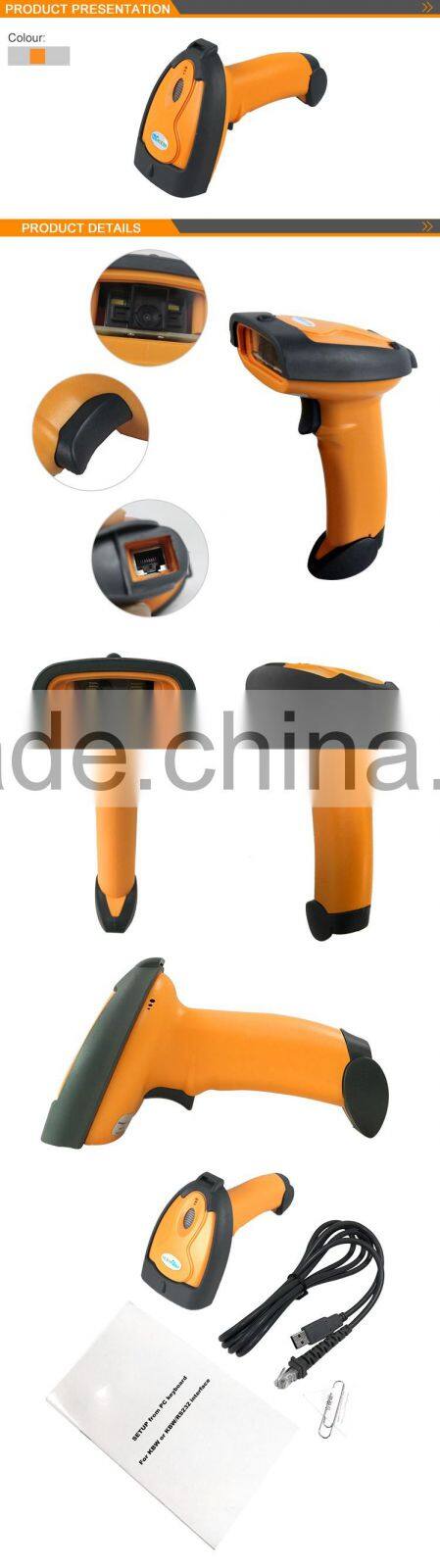

High Quality:NT-8099 Wired 1D&2D&QR code handheld Laser Barcode Scanner with multi-interface
Features | |||||
1. New design concept,make operation more comfortable. | |||||
2. Applying CMOS image technology, easy to scan. | |||||
3. Multiple dacode ability, fast to scan 1D/2D barcode and PDF417. | |||||
4. Best shape design, anti-knock and quakeproof. | |||||
5. Mulitple interface, support USB,RS232 port. | |||||
Scannning Performance Characteristics | |||||
Light Source |
indicator light: 528 nm LED;light: 630 nm |
||||
Field of View |
34° V x 46° H |
||||
Scan Angle |
Roll 360°, Pitch ±65°, Yaw ±60° |
||||
Scan Performance | |||||
5mil(Code 39): |
9.0-12.0cm |
10mil (PDF417): |
5.0-22.5cm |
||
13mil(100% UPC/EAN): |
3.0-30.5cm |
10mil(Datamatrix): |
5.2-24.0cm |
||
Static current20mil(Code 39) |
3.0-42.0cm |
|
|||
Symbology Decode Capability | |||||
1D |
UPC/EAN with supplementals, Code 39, Code 39 Full ASCII, Trioptic Code 39, RSS variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32 |
||||
PDF417 |
PDF417, microPDF417 and composite codes |
||||
Postal |
U.S. Postnet and Planet, U.K., Japan, Australian, and Dutch |
||||
2D |
MaxiCode, DataMatrix (ECC 200), QR Code |
||||
Print Contrast |
>25% |
||||
Interfaces |
RS-232C; USB (Standard, IBM SurePOS, Macintosh) |
||||
Imaging Characteristics | |||||
Image (Pixels) |
0.35 Megapixel ,752 pixels H x 480 pixels V |
||||
Graphics Format |
Bitmap, Jpeg, Tiff |
||||
Image Transfer Speed |
USB 1.1: Up to 12 Megabits/s ,RS232: Up to 115 kb baud rate |
||||
Image Transfer Time |
Typical USB application is 0.2 seconds with a compressed Jpeg of 100 kb |
||||
Physical Characteristics/User Environment | |||||
Voltage and Current |
5±10%V DC/ 350 mA |
||||
Operating Temperature |
0° - 50° C |
||||
Storage Temperature |
-40° - 70° C |
||||
Humidity |
5% -95% |
||||
Drop/Shock Specifications |
Withstands 2000g to concrete |
||||
Safety performance |
ROHS, FCC and CE Certificate |
||||
•comercial POS system(supermakets)
•warehousing and logistics
•librariries
•banks and telecom
•transportation
•postal service
•Industrial and manufacturing management
