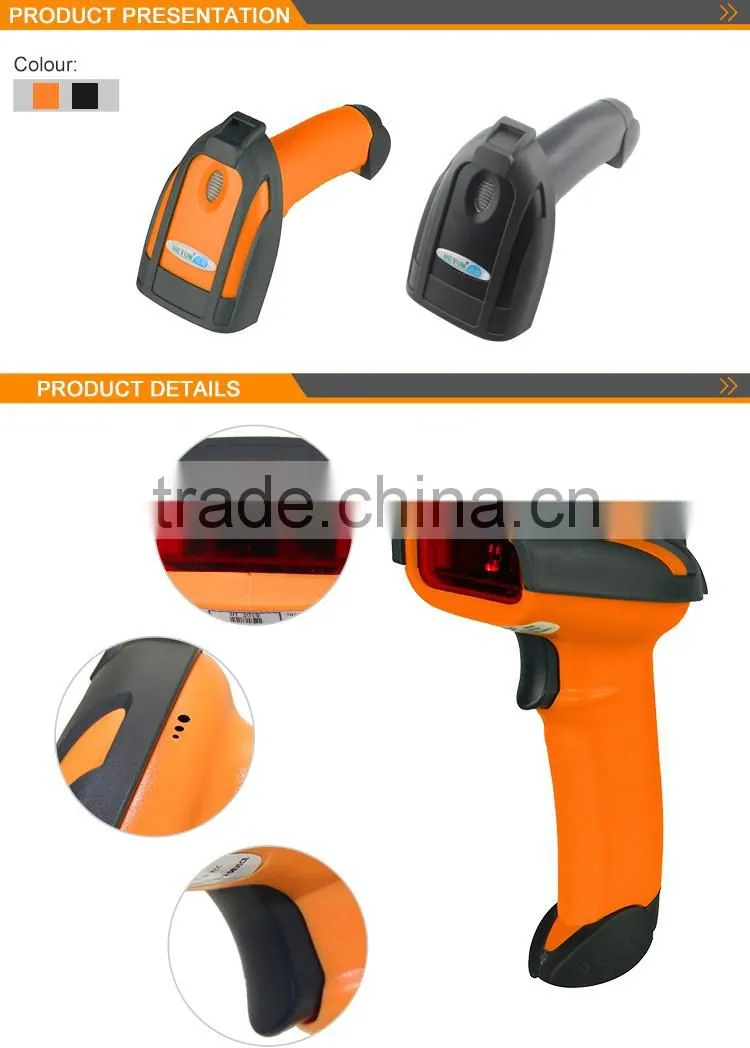

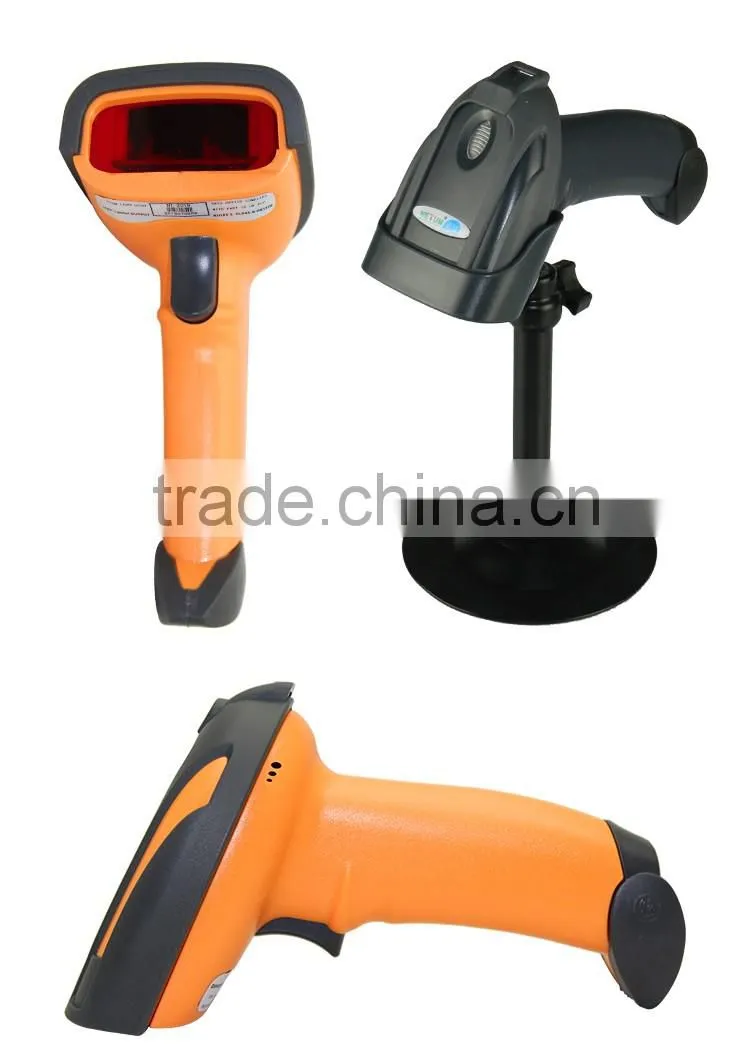

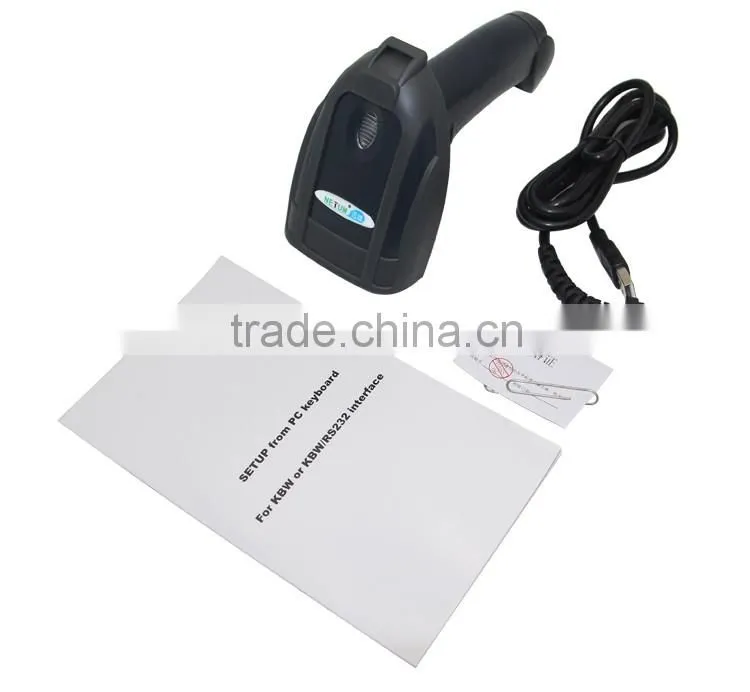

NT-2019R 2D barcode scanner handheld for supermarket

NT-2019  Wired Laser Bar code Scanner

Specifications:

Performance

Type of illuminant

650nnm laser ( safe visible light )

Supported interfaces

RS232 / PC2 keyboard / USB

Decode Capability

Code 39, Full ASCⅡ, Code bar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, Code 93, Code 128, Code 32, Standard code 39, EAN 128,  MSI,  EAN 8&13,  UPCA & E,  Plessey,  Databar14,  TELEPE

Operation

Manual/Automatic

Precision

≥4 mil (0.10mm)

Depth of scan field

10-800mm

Decode speed

120 times/second

Decode error rate

Less than 1/5 million

Print Contrast Signal

≥30°

Light intensity

Daylight, 4000Lux Max

scan angle

Yaw(Skew)45°& Pitch60°

Cradle(optional)

Stainless Steel, 360° Adjustable

Safety

Full quakeproof, waterproof, dustproof, antiknock-design and EMI Shielding

Mechanical/Electrical

Power voltage

DC 5V

Current

Operation 120mA; Idle 10mA

Scanner Material

Eco-friendly, ABS+Rubber

Physical

Exterior dimension

L*W*H (mm): 170*75*106

Materials

Plastic

Weight

170g (cable not included)

Environment

Operating humidity

5%-85%

Storage humidity

5%-85%

Operating temperature

-20°C-45°C

Storage temperature

-20°C-45°C

Safety performance

ROHS class 2 laser product, FCC class B, CCCand CE
