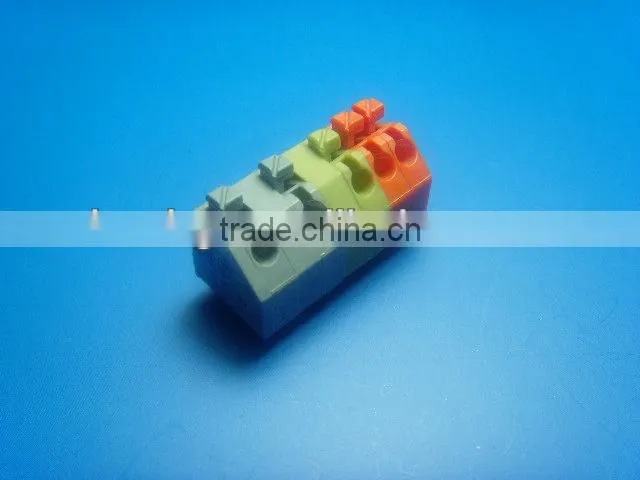

Wago 250 vde listed PCB ScrewlessTerminal Block for Printer/ punch-card machinery 3.5mm pitch with VDE/CE/CQC/S approval

By standard export carton

Specifications

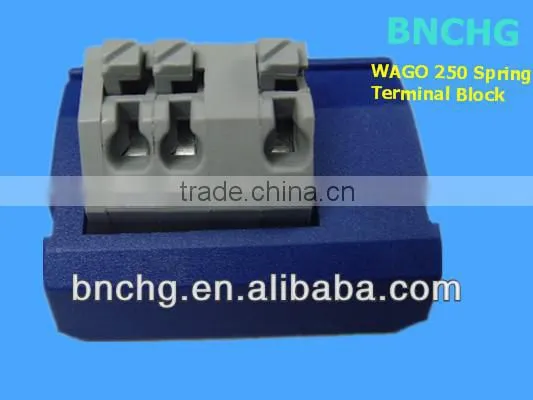

Wago 250 vde listed PCB ScrewlessTerminal Block
1,CQC, VDE,CE,S,
2.100%test before delivery

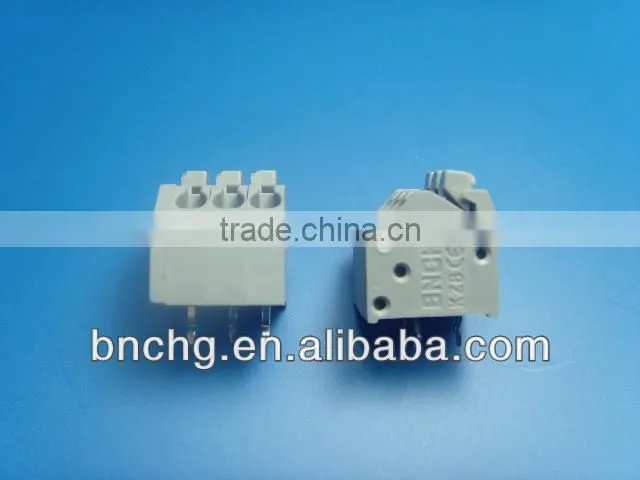

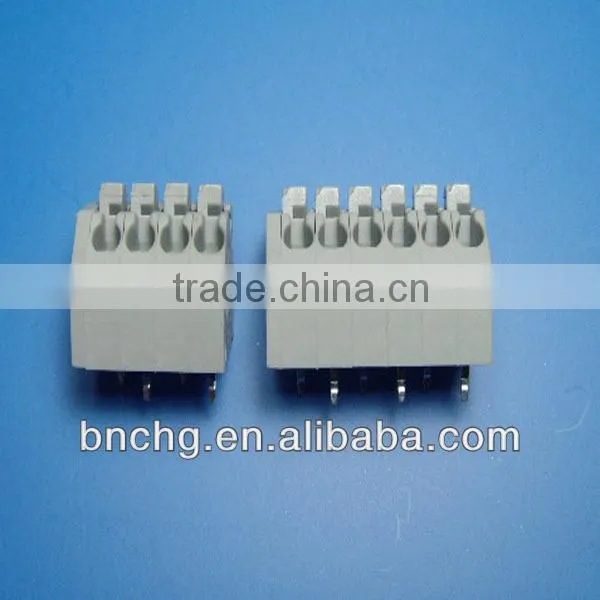

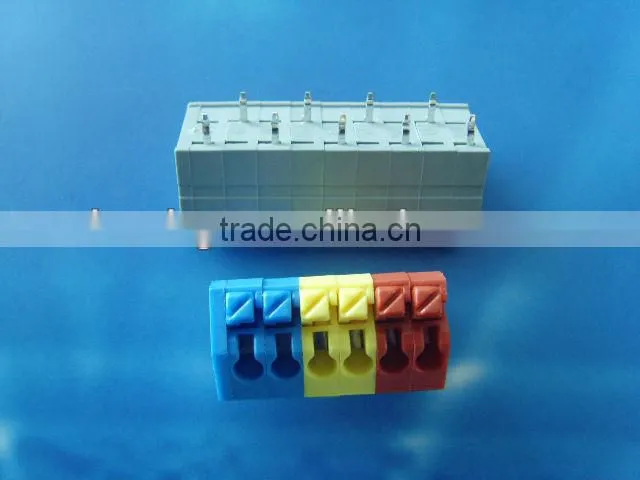

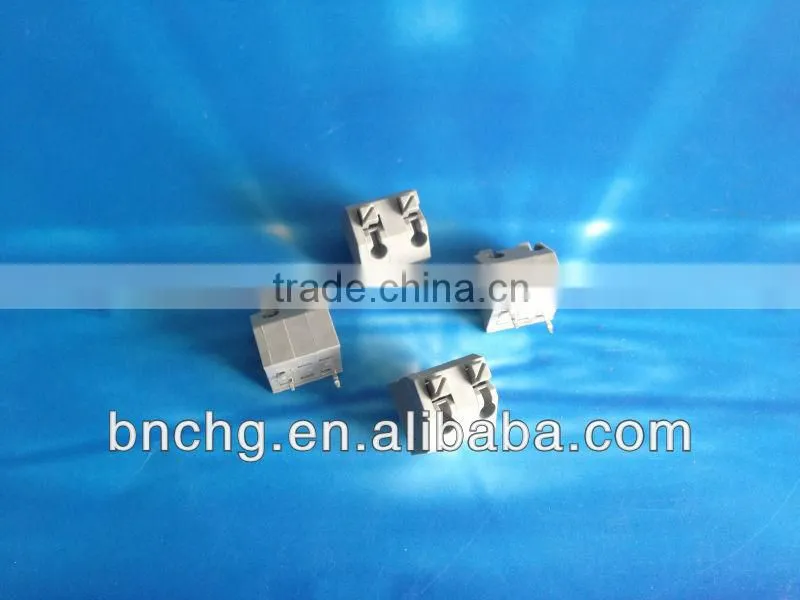

Wago 250 vde listed PCB ScrewlessTerminal Block for Printer/ punch-card machinery  3.5mm pitch with VDE/CE/CQC/S approval     3.5mm pitch pluggable pcb mounting terminal blocks

3.5mm pitch pluggable terminal block

Electronic ballast terminal block

Electronic ballast terminals

Controller terminal block



 Introduction



The product is used in T8, T5 electronic ballast  PCB with wire connection, without screw type terminal





Specification



Features:
Product Name	Spring Terminal Block
Model Number	KZ8
Pitch	3.5mm
Material:
Pin Header	Coppr alloy
Housing	PA66,UL94V-0
Electrical:
Rated Voltage	320v
Rated Current	8A
Contact Resistance	20mΩ
Insulation Resistance	5000mΩ/1000v
Withstanding Voltage	AC1500v/1 Min
Drilled hole diameter [mm]	1mm
Tolerance of drilled hole diameter [mm]	+0.1 [mm]
Connection technology	PUSH WIRE
Wire Range	22-16AWG
Mechanical:
Temperature Range	-60°C~+105°C
Conductor entry angle to the PCB (degrees) [°]	45°
Strip Length	8.5-9.5mm





Market

North America

South America

Eastern Europe

Southeast Asia

Africa

Oceania

Eastern Asia

Western Europe







About Payment





a.100%TT  in advance .(Order less than 4000 USD)



b.70%TT in advance, the balance against the copy of B/L at sight



c. Negotiable







About Shipping





1.The packages normally will be shipped out within 3 working days after the payment confirmed



2.The packages can also be shipped by DHL/TNT/UPS/EMS/FedEx,  you are welcome to choose the way you like



3.We are not responsible for any accidents, delays or other issues caused by the forwarder.





pring terminal block 3.81 pitch



terminal block 3.5 mm screwless



terminal block HC 3.5 mm



uick connect wire junction block
