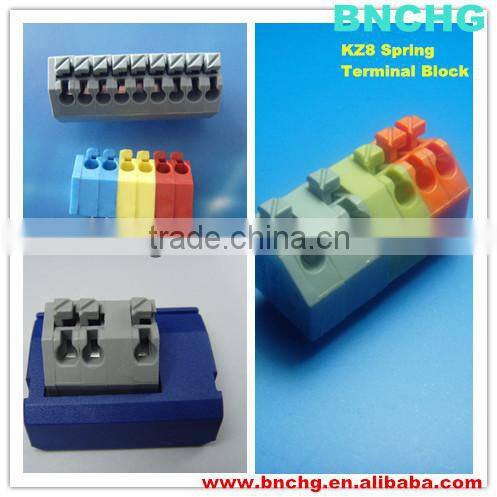

Equivalent Wago 250 Terminal Block Connector 3.5mm Push in Wire Connector
- Ningbo/Shanghai
- Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | BNCHG | |
| Model Number | KZ8 | Type | Other, PCB |
Packaging Detail: By standard export carton
Product Description
Specifications
Equivalent Wago 250 Terminal Block Connector 3.5mm Push in Wire Connector1,CQC, VDE,CE,S,
2.100%test before delivery
Equivalent Equivalent Wago 250 Terminal Block Connector 3.5mm Push in Wire Connector
Introduction
The product is used in T8, T5 electronic ballast PCB with wire connection, without screw type terminal
Specification
| Features: | |
| Product Name | Spring Terminal Block |
| Model Number | KZ8 |
| Pitch | 3.5mm |
| Material: | |
| Pin Header | Coppr alloy |
| Housing | PA66,UL94V-0 |
| Electrical: | |
| Rated Voltage | 320v |
| Rated Current | 8A |
| Contact Resistance | 20mΩ |
| Insulation Resistance | 5000mΩ/1000v |
| Withstanding Voltage | AC1500v/1 Min |
| Drilled hole diameter [mm] | 1mm |
| Tolerance of drilled hole diameter [mm] | +0.1 [mm] |
| Connection technology | PUSH WIRE |
| Wire Range | 22-16AWG |
| Mechanical: | |
| Temperature Range | -60°C~+105°C |
| Conductor entry angle to the PCB (degrees) [°] | 45° |
| Strip Length | 8.5-9.5mm |
