Help CenterEquivalent Wago 250 PCB Spring Terminal Blocks Professional Manufacture
Related Products
Specifications
Equivalent Wago 250 PCB Spring Terminal Blocks1,CQC, VDE,CE,S,
2.100%test before delivery
3.free samples

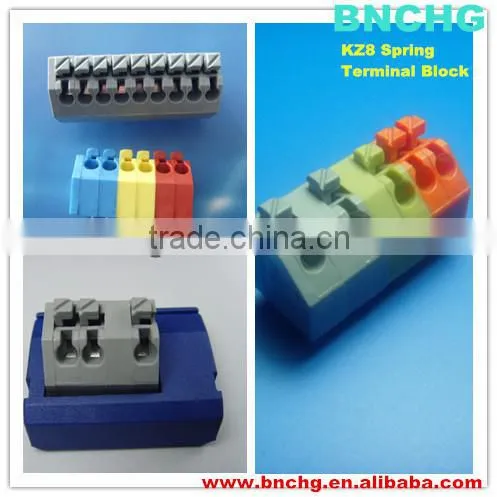

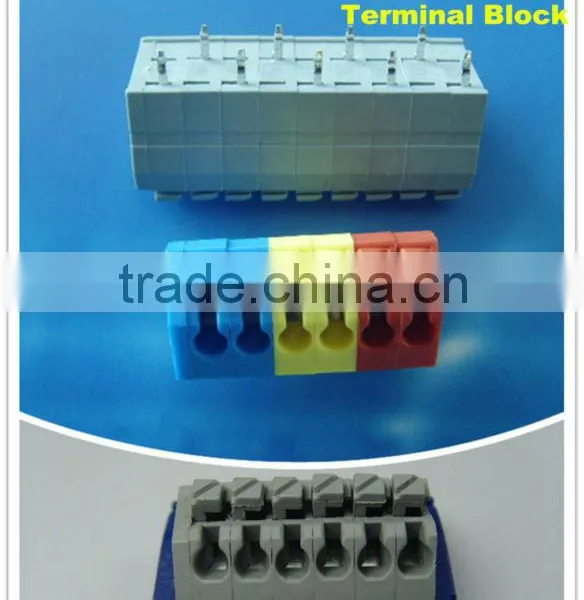

Equivalent Wago 250 PCB Spring Terminal Blocks Professional Manufacture
Introduction
The product is used in T8, T5 electronic ballast PCB with wire connection, without screw type terminal
Specification
| Features: | |
| Product Name | Spring Terminal Block |
| Model Number | KZ8 |
| Pitch | 3.5mm |
| Material: | |
| Pin Header | Coppr alloy |
| Housing | PA66,UL94V-0 |
| Electrical: | |
| Rated Voltage | 320v |
| Rated Current | 8A |
| Contact Resistance | 20mΩ |
| Insulation Resistance | 5000mΩ/1000v |
| Withstanding Voltage | AC1500v/1 Min |
| Drilled hole diameter [mm] | 1mm |
| Tolerance of drilled hole diameter [mm] | +0.1 [mm] |
| Connection technology | PUSH WIRE |
| Wire Range | 22-16AWG |
| Mechanical: | |
| Temperature Range | -60°C~+105°C |
| Conductor entry angle to the PCB (degrees) [°] | 45° |
| Strip Length | 8.5-9.5mm |
Market
North America
South America
Eastern Europe
Southeast Asia
Africa
Oceania
Eastern Asia
Western Europe
About Payment
a.100%TT in advance .(Order less than 4000 USD)
b.70%TT in advance, the balance against the copy of B/L at sight
c. Negotiable
About Shipping
1.The packages normally will be shipped out within 3 working days after the payment confirmed
2.The packages can also be shipped by DHL/TNT/UPS/EMS/FedEx, you are welcome to choose the way you like
3.We are not responsible for any accidents, delays or other issues caused by the forwarder.
About Feedback
We maintain high standards of excellence and strive for 100% customer satisfaction. So feedback is very important for us. Any suggentions & feedback on our products are welcome here!
Contact information
Contact person: Ms. Candice Wu
YUEQING BINCHENG ELECTRONICS CO.,LTD
Add: Sitang Industrial Area Qingjiang Town YueqingCity Zhejiang Province P. R. China 325611
Tel: 0086 (577) 62271801 62271802
Fax: 0086 (577) 62271831
Mobile phone :( 0086 )13968779429
Email: bc at bnchg dot com
Skype: bincheng_elec1
