Help CenterChina Factory Supplying Equivalent Wago 222 Series Cable Terminal Block CE/CB/Rohs Approved
Related Products
-
Directly Factory Micro Fit Connector Wago Splicing Wire Connectors With Orange Levers in Large Stock Hot Sale in EuropeUS$ 0.02 - 0.5MOQ: 10000 Pieces -
CE/CB/Rohs Approved 2poles 3poles 5poles Plastic Wire Connector 222series WagoUS$ 0.02 - 0.5MOQ: 10000 Pieces
-
Cheap Equivalent Wago 222-413 3 Pin Wire Connector Directly FactoryUS$ 0.02 - 0.5MOQ: 10000 Pieces
-
Directly Factory Wago Wire Cable 12v Connector 222 Series 2way 3way 5wayUS$ 0.02 - 0.5MOQ: 10000 Pieces
-
Hot Sale Wago 2 Wire Connector for the Building InstallationUS$ 0.02 - 0.5MOQ: 10000 Pieces
China Factory Supplying Equivalent Wago 222 Series Cable Terminal Block CE/CB/Rohs Approved ector electric terminal block
electrical wire mini connectors
led wire connectors waterproof
different types wire connectors
auto wire connector plug
Company Introduction
Yueqing Bincheng Electronics Co., Ltd is a manufacturing concern for over 12 years of the terminal block, wire connector,lamp holder, led connector, electronic ballast fittings, wiring harness, controller panel etc possessed of passel high quality technical person with ability and management personnel, and continuously introdu-cing into advanced technologies, procuct equipment and test instrument. Company already has passed the CE, CCC, CQC, RoHS. and a variety of utility model patent application .We also accept custom's OEM or ODM.
The product widely used for household appliances,building-connect, illumination appliances, communication equipment, automobile etc.
Application ( China Factory Supplying Equivalent Wago 222 Series Cable Terminal Block )
1. Junction boxes: wiring of flexible conductors in a junction box
2. Industrial and Residential Lighting : Canopy lights, Halogen lamps, Lighting fixture connection, Interconnections of lighting fixture combinations, Through wiring on lighting fixtures, Candelabras connection, Continuous roof lights, Supply lines for decorative lighting (holiday lights, etc.)
directly factory CE/CB/Rohs approved wago mini fit connector 222 series
3. Individual: individual design of low voltage system
Specification( Equivalent Wago 222 Series Cable Terminal Block CE/CB/Rohs Approved )
| Product | Wago 222 series |
| Current | 32A |
| Voltage | 400V |
| Material | copper,tined; PA66 UL94V-0 |
| Wire size | 0.08~2.5mm2, 2.5~4.0mm |
| Strip length | 9~10mm |
| Certificates | CE CB Rohs CQC |
| Applications | Lighting fixtures, junction box,pumps, electrical junction box |
spring terminal block 3.5mmPush-wire connector for junction boxes
above datasheet is for your reference only, for more detail, contact by 0086 139 6877 9429 or email by bnchg2013 at 163 dot com
junction box electrical connector
e connect

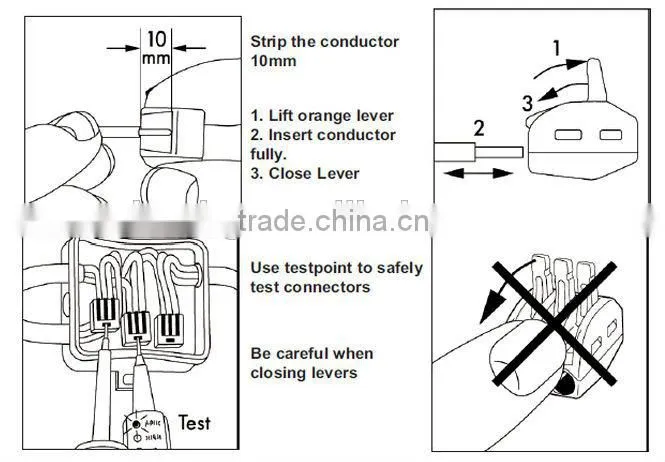

How to use ( China Factory Supplying Wago 222 Series Cable Terminal Block CE/CB/Rohs Approved )
(strip) (lever) (connection)
1. strip wire 9~10mm (strip)
2. push up lever and insert conductor (lever)
3. lower the lever to its closed position, the conductor could clamp automatically (connection)

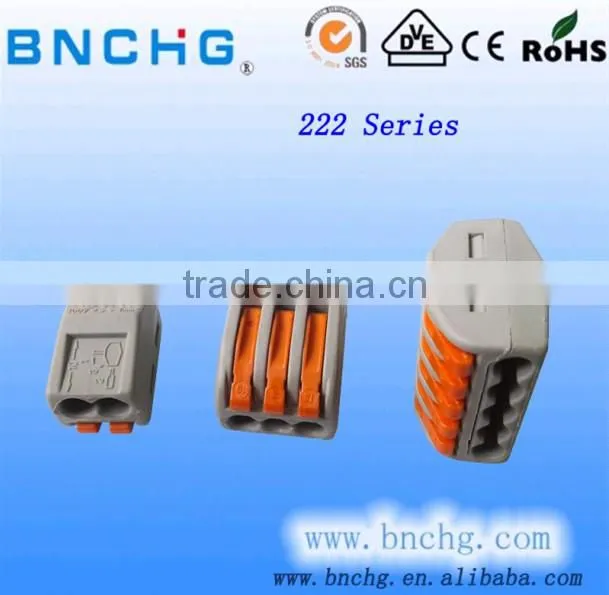

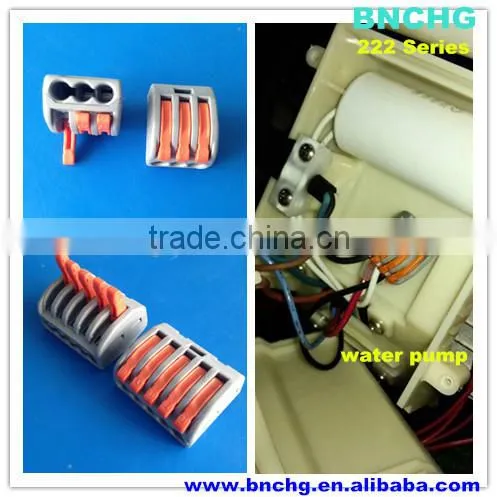

Product photos ( China Factory Supplying Equivalent Wago 222 Series Cable Terminal Block CE/CB/Rohs Approved )
