Home > Products > Road Machine > 8m3 Sinotruck Chip Sealer

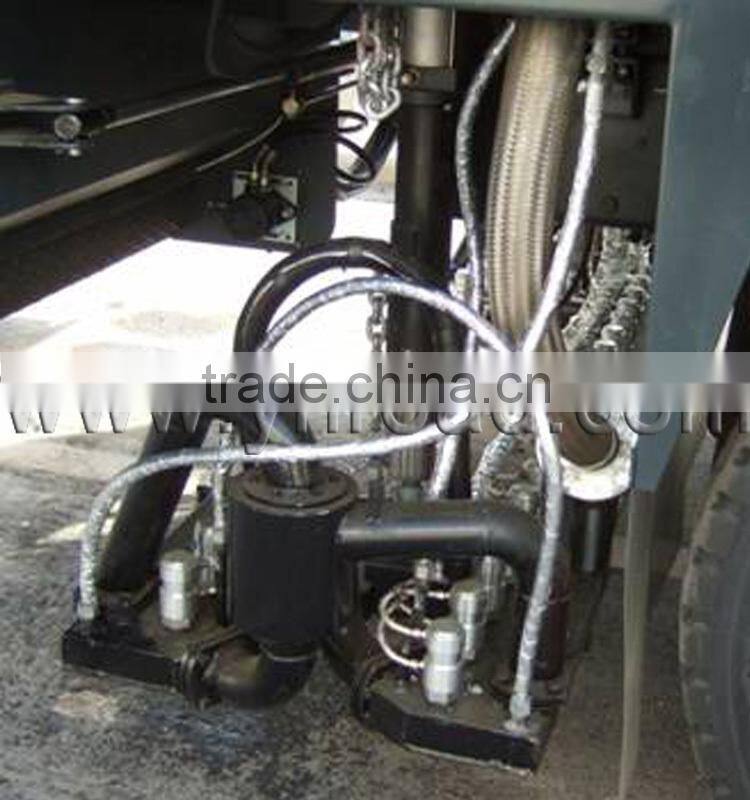

8m3 Sinotruck Chip Sealer
US$ 220,000 - 240,000
/ Set
1 Set(Min. Order)
- Shanghai Qingdao
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | Yihong | |
| Model Number | YH5313TFC | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
8m3 sinotruck chip sealer product overview
The 8m3 sinotruck chip sealer is used for chip sealing the surfaces of roads and coating and waterproofing bridges. Asphalt binder spraying and aggregate spreading are performed synchronously so they achieve maximum cohesion.

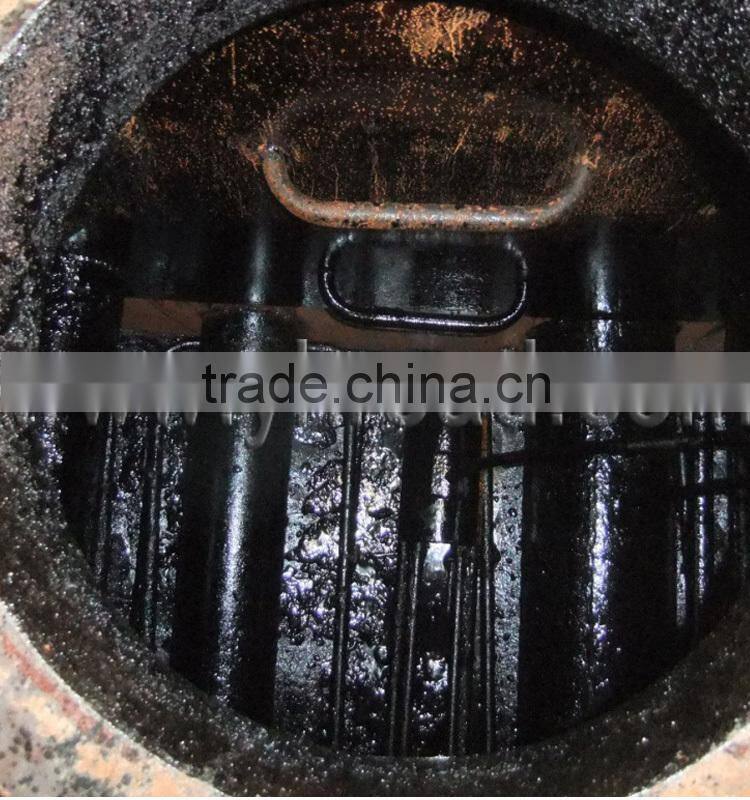

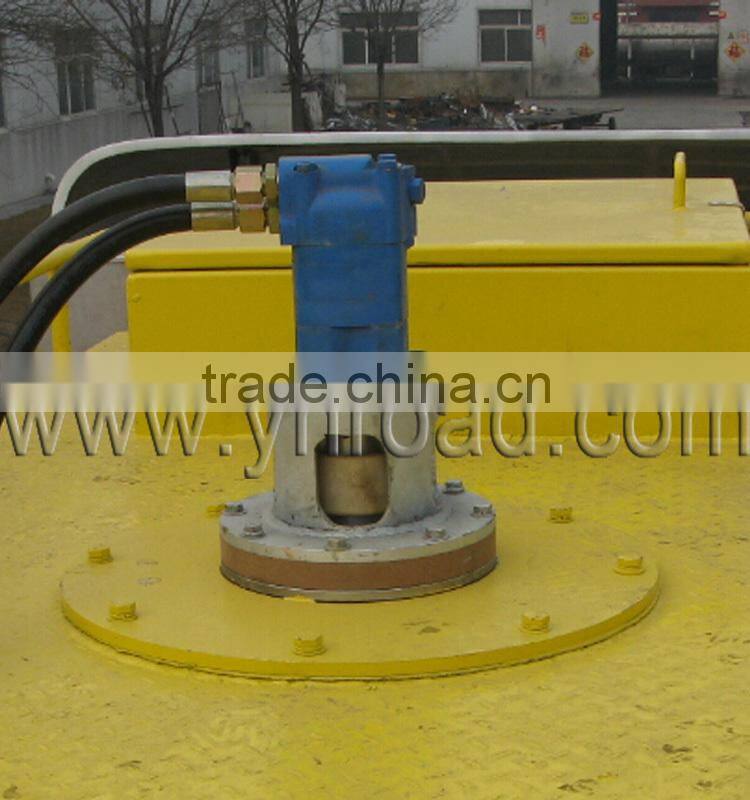

The asphalt sealer is researched and developed independently, earning proprietary intellectual property rights for its advanced technology. For this 8m3 sinotruck chip sealer, we installed a strong agitator in the asphalt tank to prevent the asphalt rubber from separating into liquids and solids. The pavement chip sealer incorporates mechanical, electric and hydraulic systems in one machine, simplifying the operating process.
8m3 sinotruck chip sealer for sale features
1. Automatic controls means there is no need to lift the hopper to spread aggregate, allowing the synchronous chip sealer to be used in narrow spaces such as under bridges and at curves.

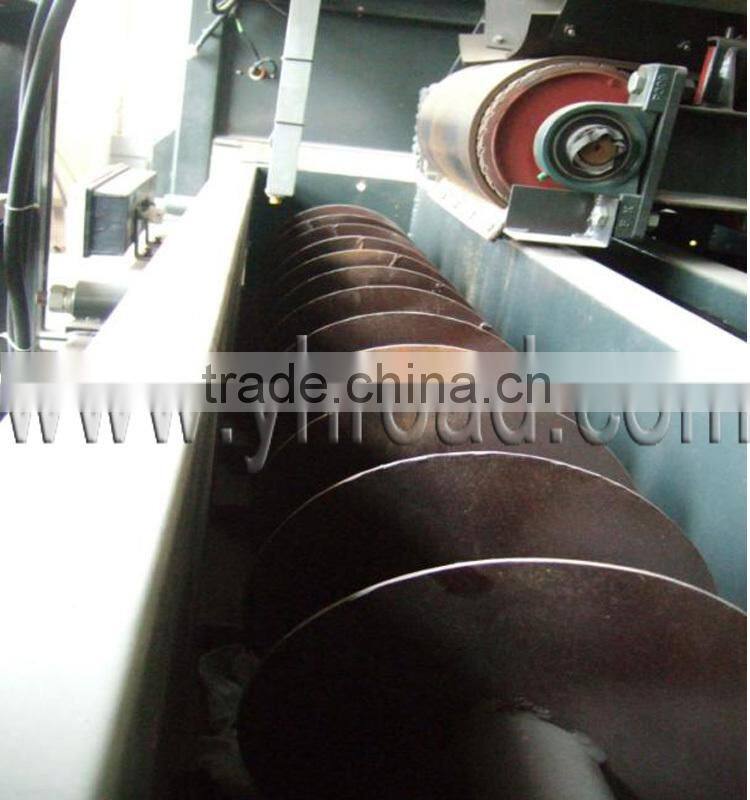

2. Double spiral distributor pushes the aggregate to a 3800mm wide lower hopper, in which gravity pulls the aggregate down for even spreading.
3.The road maintenance equipment reduces the intensity of labor, initial cost investment and human resources while improving work efficiency and quality.
4. The anti-corrosive and durable insulation layer keeps the insulation index at no more than 20℃ for 8hours.
5. High precision nozzles maintain uniform and reliable spraying of aggregate sized 3mm to 25mm.
6. Remove control features make the synchronous chip sealer easy and convenient to operate, and a HD camera in the back allows users to operate from the cab.
7. The electric control system and hydraulic pressure-constant system allow spraying to begin as son as the truck starts.
8. Asphalt is heated while driving for efficiency. The amount of asphalt spray can be precisely calculated.
9. Automatic control of while driving for efficiency . The amount of asphalt spray can be precisely calculated.
10. Improvements based on customer feedback keep this chip sealing equipment reliable performing, easy to operate, and cost-effective.
8m3 sinotruck chip sealer technical parameters
Product Model | YH5313TFC |
Chassis Model | ZZ3317N4667D1 |
| Auxiliary Engine Power | 70kw |
Spray Width | 3500mm |
| Spray Volume | 0.2-3.0kg/m2 |
| Aggregates Size | 3-25mm |
| Asphalt Tank | 8m3 |
| Aggregates Hopper | 12m3 |
| Heater | Imported Diesel Heater(2x10x104kCal/h) |
| Spray Medium | Hot(modified)Asphalt, Cutback, Emulsion |
| Gross Vehicle Weight | 31000kg |
| Dimension | 11980 * 2500 * 3860mm |
8m3 sinotruck chip sealer key components
| NO. | NAME | BRAND | QTY | PLACE OF PRIGINAL |

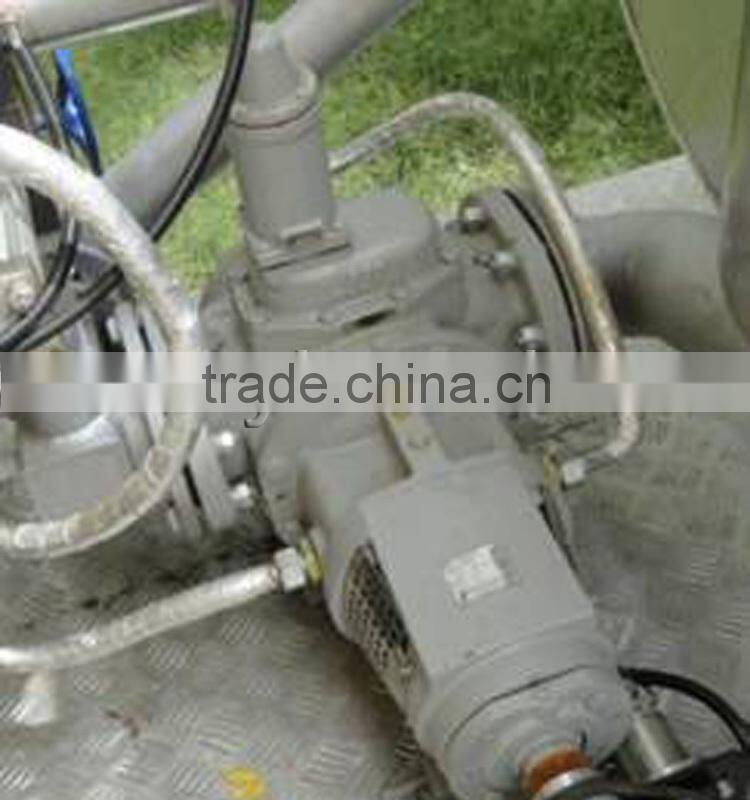

| 1 | Asphalt pump | Johnson | 1 | Belgium |
| 2 | Heat oil pump | Johnson | 1 | Belgium |
| 3 | Auxiliary engine | Ynchai | 1 | China |
| 4 | Flywheel coupling of international combustion engine | KTR | 1 | Germany |
| 5 | Reducer | GUOMAO | 2 | China |
| 6 | PLC | IDEC | 3 | Japan |
| 7 | Velocity radar | Dickey-john | 1 | United States |
| 8 | Touch screen | Xinjie | 1 | China |
| 9 | Low pressure controller | Schneider | 1 | Germany |
| 10 | Encoder | Koyo | 1 | Japan |
| 11 | Burner | Beckett | 2 | America |
| 12 | Cycloid motor | Eaton | 2 | United States |
| 13 | Cycloid motor | Sauer-Danfoss | 7 | United Stated |
| 14 | Travel switch | Omron | 6 | Japan |
| 15 | Hydraulic cylinder | Steady | 4 | China |
| 16 | Constant pressure volume adjustable pump | Sauer-Danfoss | 1 | United States |
| 17 | Solenoid directional Valve | ARGO-HYTOS | 6 | Germany |
| 18 | One-way throtle valve | Tognella | 4 | Italy |
| 19 | Radiator | AKG | 1 | Germany |
| 20 | Two-way valve | HC | 1 | Italy |
| 21 | Plug-in spillover valve | Argo-hytons | 1 | Germany |
| 22 | Double directional throttle valve | Tognella | 2 | Italy |
| 23 | Double directional governing valve | Tognella | 3 | Italy |
| 24 | Double directional hydraulic lock | Oreo | 2 | Italy |
| 25 | Adjustable priority dividing valve | Bondioli & Pavesi | 1 | Italy |
| 26 | Gear motor | TJ | 2 | China |
| 27 | Proportional solenoid | Rexroth | 1 | Germany |
8m3 sinotruck chip sealer workshop
