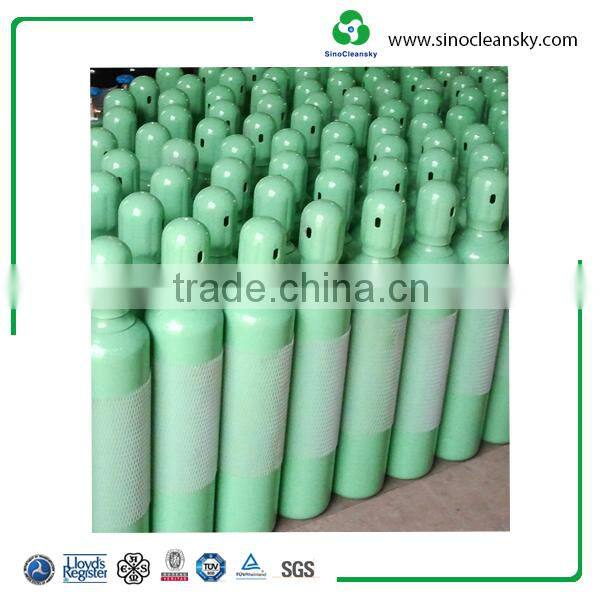

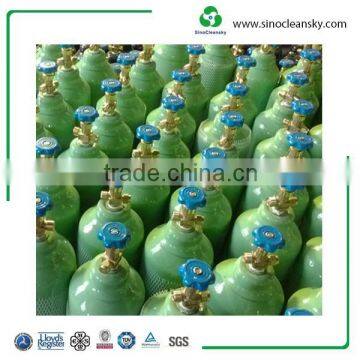

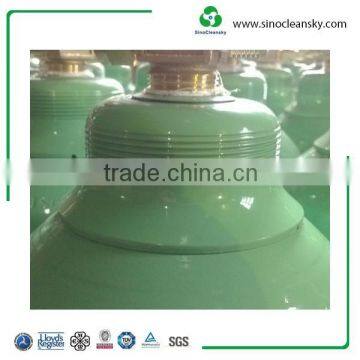

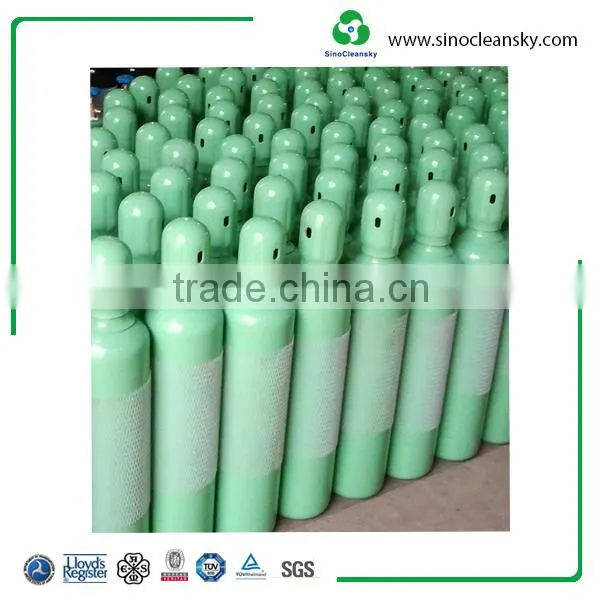

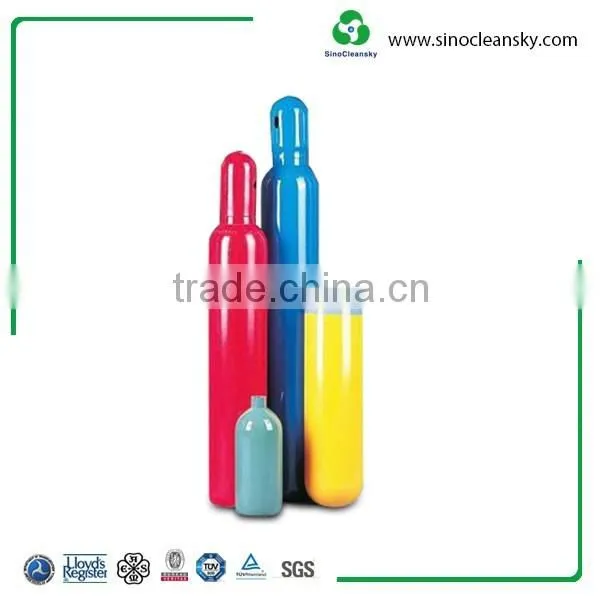

5L 200bar Portable Medical Cylinder for Oxygen CO2 Nitrogen
|
Classification |
Medical Cylinder |
Manufacturing STD |
GB5099, DOT-3AA, EN1964, ISO9809 |
|
Outer diameter |
108mm-159mm etc. |
|
Water capacity |
1L-20L |
|
Working pressure |
15Mpa, 20Mpa |
|
Typical types |
5L, 10L |
Seamless Steel Gas Cylinder
With the world class equipment and advanced technical process, SinoCleansky can produce Large, medium, small sizes high pressure seamless gas cylinders which range from 8-35Mpa in working pressure, 0.5-145L in water liter. “SCS” brand seamless steel cylinders have reliable quality, clear stamping, consistent height and elegant appearance. SinoCleansky’s cylinders have been exported to over 40 countries and areas in four continents. SinoCleansky’s cylinder has got the honors as”Beijing famous brand product” and”Chinese well known products”. If you focus on Seamless Steel Gas Cylinder, especially for medical gas cylinder, SinoCleansky will be your excellent professional supplier.
Main types for Seamless Steel Gas Cylinder
Standard |
Outside Diameter (mm) |
Water Capacity (L) |
Height (without valve) (mm) |
Weight (without valve, cap) (kg) |
Service Pressure (MPa) |
Design Wall Thickness (mm) |
Material |
GB5099 |
219 |
40 |
1315 |
48 |
15 |
5.7 |
37Mn |
GB5099 |
232 |
47 |
1370 |
52 |
15 |
5.4 |
37Mn |
GB5099 |
267 |
68 |
1500 |
78 |
15 |
6.3 |
30CrMo |
GB5099 |
267 |
68 |
1500 |
76 |
15 |
6.3 |
37Mn |
GB5099 |
229 |
50 |
1500 |
65 |
20 |
6.2 |
30CrMo |
GB5099 |
229 |
50 |
1550 |
75 |
20 |
6.2 |
30CrMo |
GB5099 |
178 |
10 |
555 |
15 |
20 |
4.6 |
30CrMo |
GB5099 |
165 |
10 |
630 |
14.5 |
15 |
4.3 |
37Mn |
GB5099 |
140 |
10 |
840 |
14 |
15 |
3.6 |
37Mn |
GB5099 |
140 |
10 |
840 |
14 |
15 |
3.6 |
30CrMo4 |
GB5099 |
140 |
10 |
840 |
14 |
20 |
3.7 |
30CrMo4 |
GB5099 |
133 |
10 |
900 |
11.1 |
15 |
3 |
30CrMo |
Standard |
Outside Diameter (mm) |
Water Capacity (L) |
Height (mm) |
Weight (kg) |
Service Pressure (bar) |
Test Pressure (bar) |
Design Wall Thickness (mm) |
Material |
ISO9809 |
219 |
40 |
1315 |
48 |
150 |
250 |
5.7 |
37Mn |
ISO9809 |
232 |
50 |
1460 |
61 |
200 |
300 |
6 |
30CrMo |
EN ISO9809 (TPED) |
267 |
68 |
1500 |
78 |
150 |
250 |
6.5 |
37Mn |
Standard |
Type |
Outside Diameter in. (mm) |
Water Capacity cu. in. (L) |
Height in. (mm) |
Weight Ibs. (kg) |
Service Pressure (psi) |
Test Pressure (psi) |
Design Wall Thickness in. (mm) |
Material |
DOT-3AA |
225CF |
9“(229) |
2640(43.3) |
51.18"(1300) |
110.4(50) |
2015 |
3360 |
0.197(5.0) |
30CrMo (4130X) |
DOT-3AA |
20CF |
5.24“(133) |
220(3.6) |
14.8"(375) |
12.3(5.6) |
2015/ |
3360 |
0.118"(3.0) |
30CrMo (4130X) |
DOT-3AA |
40CF |
7"(178) |
476(7.8) |
17.7"(450) |
263(12) |
2015 |
3360 |
0.157"(4.0) |
30CrMo (4130X) |
