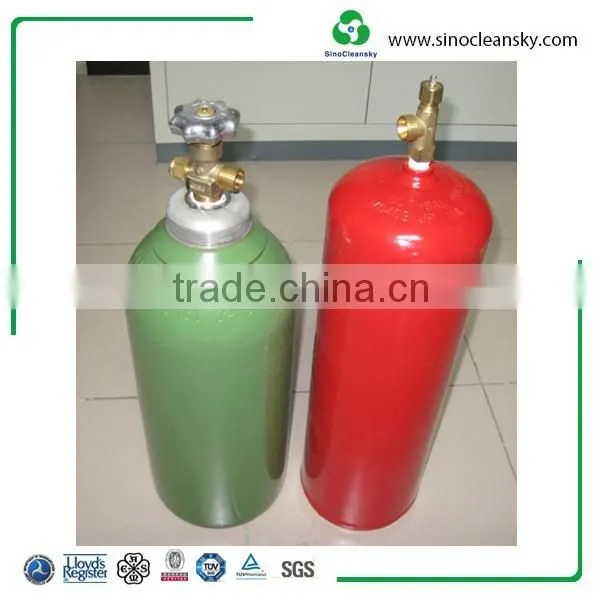

High Pressure Seamless Steel Gas Cylinder
|
Classification |
Industrial Gas Cylinder |
Manufacturing STD |
GB5099, DOT-3AA, EN1964, ISO9809 |
|
Outer diameter |
108mm-406mm etc. |
|
Water capacity |
0.5L-200L |
|
Working pressure |
15Mpa, 20Mpa, 25Mpa |
|
Typical types |
40L, 47L, 50L |
Seamless steel gas cylinde

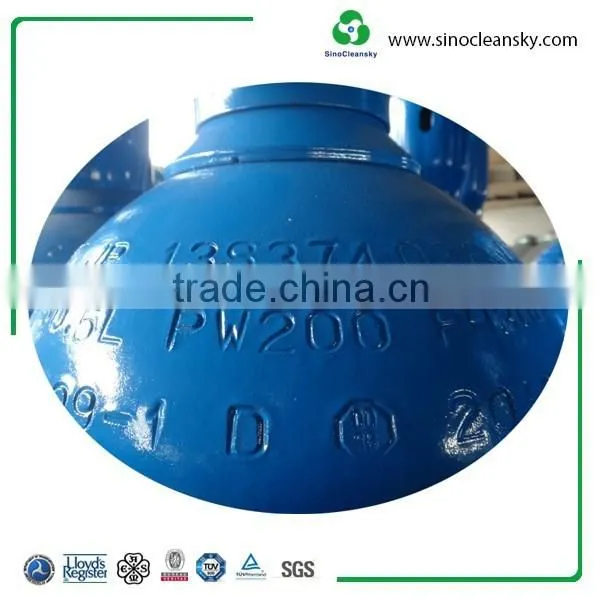

With the world class equipment and advanced technical process, SinoCleansky can produce Large, medium, small sizes high pressure seamless cylinders which range from 8-35Mpa in working pressure, 0.5-145L in water liter. “SCS” brand seamless steel cylinders have reliable quality, clear stamping, consistent height and elegant appearance. SinoCleansky’s gas cylinders and oxygen cylinder have been exported to over 40 countries and areas in four continents. SinoCleansky’s cylinder has got the honors as”Beijing famous brand product” and”Chinese well known products”
Main types
Standard |
Outside Diameter (mm) |
Water Capacity (L) |
Height (without valve) (mm) |
Weight (without valve, cap) (kg) |
Service Pressure (MPa) |
Design Wall Thickness (mm) |
Material |
GB5099 |
219 |
40 |
1315 |
48 |
15 |
5.7 |
37Mn |
GB5099 |
232 |
47 |
1370 |
52 |
15 |
5.4 |
37Mn |
GB5099 |
267 |
68 |
1500 |
78 |
15 |
6.3 |
30CrMo |
GB5099 |
267 |
68 |
1500 |
76 |
15 |
6.3 |
37Mn |
GB5099 |
229 |
50 |
1500 |
65 |
20 |
6.2 |
30CrMo |
GB5099 |
229 |
50 |
1550 |
75 |
20 |
6.2 |
30CrMo |
GB5099 |
178 |
10 |
555 |
15 |
20 |
4.6 |
30CrMo |
GB5099 |
165 |
10 |
630 |
14.5 |
15 |
4.3 |
37Mn |
GB5099 |
140 |
10 |
840 |
14 |
15 |
3.6 |
37Mn |
GB5099 |
140 |
10 |
840 |
14 |
15 |
3.6 |
30CrMo4 |
GB5099 |
140 |
10 |
840 |
14 |
20 |
3.7 |
30CrMo4 |
GB5099 |
133 |
10 |
900 |
11.1 |
15 |
3 |
30CrMo |
Standard |
Outside Diameter (mm) |
Water Capacity (L) |
Height (mm) |
Weight (kg) |
Service Pressure (bar) |
Test Pressure (bar) |
Design Wall Thickness (mm) |
Material |
ISO9809 |
219 |
40 |
1315 |
48 |
150 |
250 |
5.7 |
37Mn |
ISO9809 (TPED) |
229 |
50 |
1500 |
65 |
200 |
300 |
6.2 |
30CrMo |
ISO9809 (TPED) |
229 |
50 |
1470 |
56.4 |
200 |
300 |
5.2 |
30CrMo4 |
ISO9809 |
232 |
50 |
1460 |
61 |
200 |
300 |
6 |
30CrMo |
Standard |
Outside Diameter (mm) |
Water Capacity (L) |
Height (mm) |
Weight (kg) |
Service Pressure (bar) |
Test Pressure (bar) |
Design Wall Thickness (mm) |
Material |
EN ISO9809 (TPED) |
267 |
67.5 |
1500 |
78 |
150 |
250 |
6.5 |
37Mn |
EN ISO9809 (TPED) |
267 |
68 |
1500 |
78 |
150 |
250 |
6.5 |
37Mn |
EN ISO9809 (TPED) |
229 |
50 |
1470 |
56.4 |
200 |
300 |
5.2 |
30CrMo4 |
