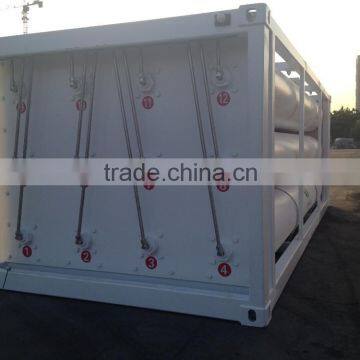

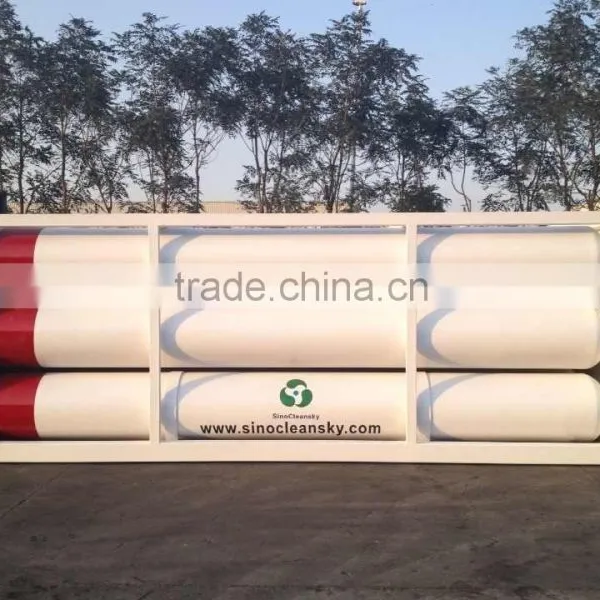

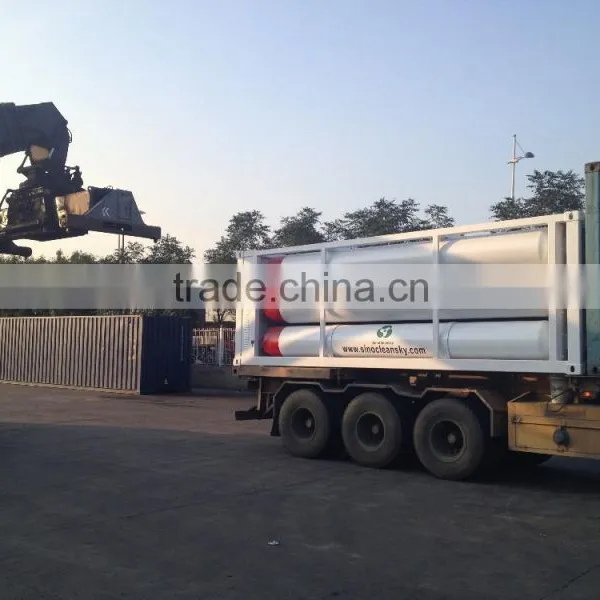

ISO11120 20feet OD559mm 12tubes CNG Semi Trailer
Model No. |
SCS0825CS-40F |
SCS0925CT-40B |
SCS1025CT-40B |
SCS1225CS-40F |
SCS0625CS-40F-711 |
Cylinder quantity |
8 |
9 |
10 |
12 |
6 |
Working pressure/MPa |
25 |
25 |
25 |
25 |
25 |
Cylinder size/mm |
OD559*17.4*10975 |
OD559*17.4*12190 |
OD559*17.4*10975 |
OD559*17.4*10975 |
OD711*22.1*10975 |
Steel type |
4130X/30CrMo |
4130X/30CrMo |
4130X/30CrMo |
4130X/30CrMo |
4130X/30CrMo |
Working temperature |
-20~65℃ |
-20~65℃ |
-20~65℃ |
-20~65℃ |
-20~65℃ |
Cylinder weight/KG |
2825 |
3100 |
2825 |
2825 |
4460 |
Equipment weight /KG |
25860 |
35500 |
33920 |
37260 |
31000 |
Water volume/M3 |
17.8 |
23.22 |
23.3 |
27 |
22.2 |
Filling gas volume /NM3 |
5300 |
6900 |
7000 |
8030 |
6600 |
Loading weight/KG |
3800 |
4965 |
5019 |
5760 |
4736 |
Total weight/KG |
29660 |
40455 |
38939 |
43020 |
35735 |
Skid/Trailer dimension |
12192*2438*1400 |
12960*2490*3300 |
12192*2438*3350 |
12192*2438*2010 |
12192*2438*1775 |
|
(skid) |
(trailer) |
(trailer) |
(skid) |
(skid) |
Model No. |
SCS0925CS-10F |
SCS0825CS-20F |
SCS1225CS-20F |
SCS1625CS-20F |
SCS0925CS-20F-711 |
Cylinder quantity |
9 |
8 |
12 |
16 |
9 |
Working pressure/MPa |
25 |
25 |
25 |
25 |
25 |
Cylinder size/mm |
OD559*17.4*2600 |
OD559*17.4*5400 |
OD559*17.4*5400 |
OD559*17.4*5400 |
OD711*22.1*5400 |
Steel type |
4130X/30CrMo |
4130X/30CrMo |
4130X/30CrMo |
4130X/30CrMo |
4130X/30CrMo |
Working temperature |
-20~65℃ |
-20~65℃ |
-20~65℃ |
-20~65℃ |
-20~65℃ |
Cylinder weight/KG |
670 |
1390 |
1390 |
1390 |
2190 |
Equipment weight /KG |
9107 |
14080 |
19700 |
26200 |
23020 |
Water volume/M3 |
4.1 |
8.24 |
12.36 |
16.8 |
15.3 |
Filling gas volume /NM3 |
1230 |
2500 |
3705 |
4950 |
4550 |
Loading weight/KG |
875 |
1770 |
2654 |
3540 |
3260 |
Total weight/KG |
9982 |
15850 |
22354 |
29740 |
26280 |
Skid/Trailer dimension |
3048*1860*2035 |
6058*2438*1400 |
6058*2438*2010 |
6058*2438*2620 |
6058*2438*2485 |
|
(skid) |
(skid) |
(skid) |
(skid) |
(skid) |
Ideal Solution for CNG Storage and Transportation---CNG Jumbo Cylinder Skid/Trailer
Produce as per ISO11120, ASME and approved by BV inspection report.
Application:
Features of SinoCleansky high-pressure jumbo gas cylinder:
1. Heat-spinning technology;
2. Walking beam continuous heat treatment;
3. Large-size structure and fewer valves, tubes and joints;
4. Concise design, less maintenance on site;
5. Lower weight of design;
6. Additional gas-filling devices.
