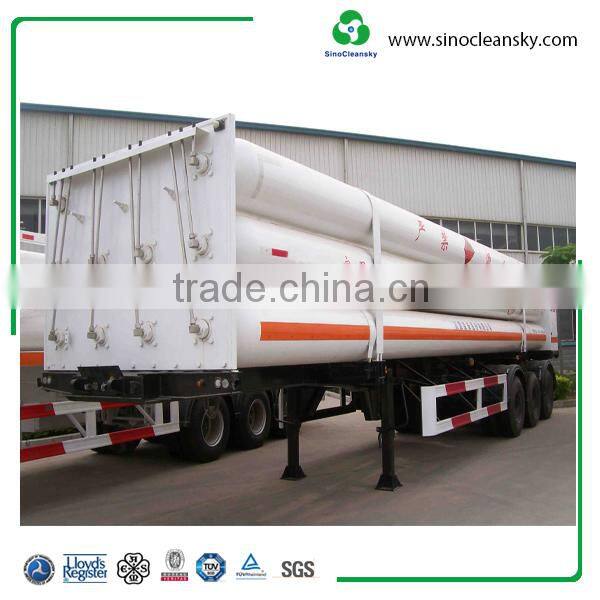

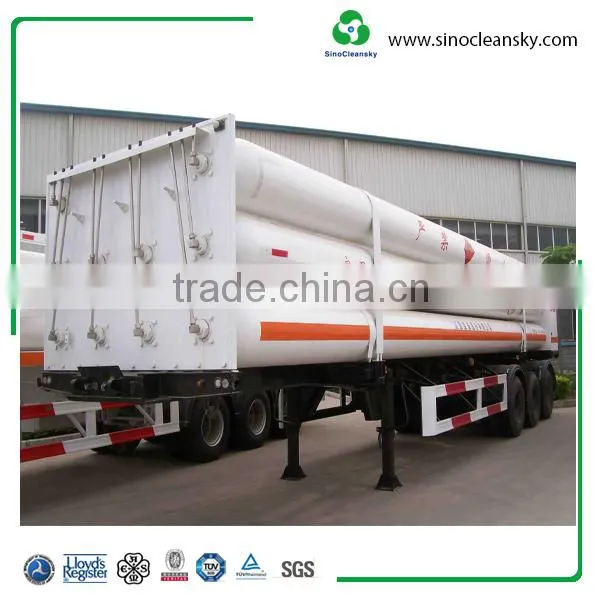

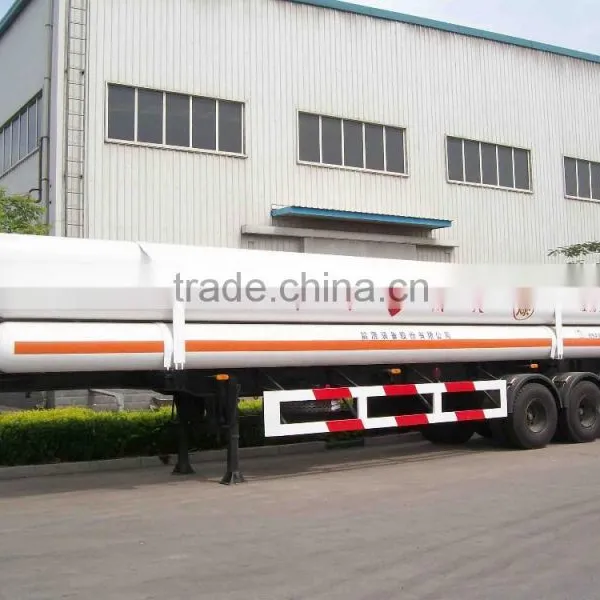

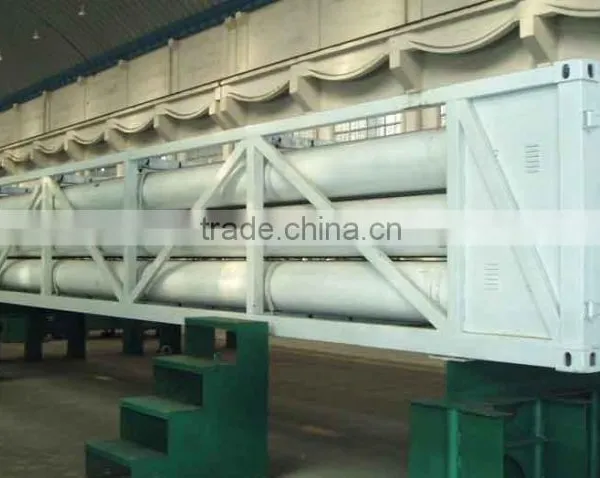

ISO11120 40feet OD559mm 9tubes Natural Gas Jumbo Skid
Model No. | SCS0925CT-40B | |
| Cylinder quantity | 9 |
Working pressure/MPa | 25 | |
Cylinder size/mm | OD559*17.4*12190 | |
Steel type | 4130X/30CrMo | |
Working temperature | -20~65℃ | |
Cylinder weight/KG | 3100 | |
Equipment weight /KG | 35500 | |
Water volume/M3 | 23.22 | |
Filling gas volume /NM3 | 6900 | |
Loading weight/KG | 4965 | |
Total weight/KG | 40455 | |
Skid/Trailer dimension
| 12960*2490*3300 | |
(trailer) |

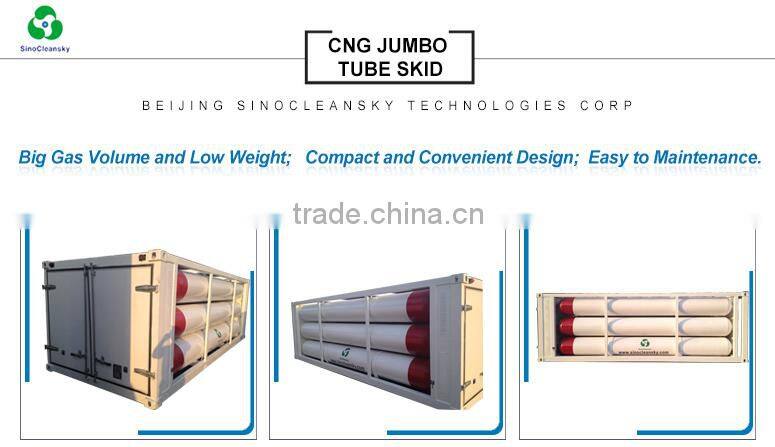

Ideal Solution for CNG Storage and Transportation---CNG Jumbo Cylinder Skid/Trailer
Produce as per ISO11120, ASME and approved by BV inspection report.

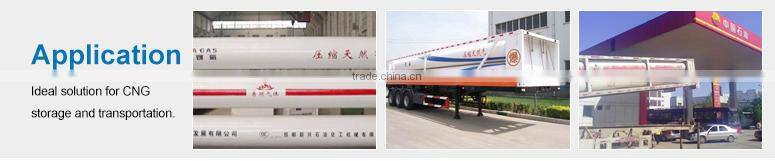

Application:

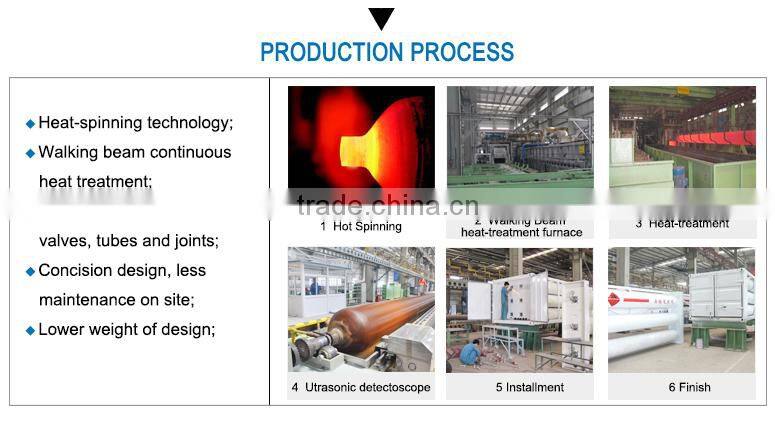

Features of SinoCleansky high-pressure jumbo gas cylinder:
1. Heat-spinning technology;
2. Walking beam continuous heat treatment;
3. Large-size structure and fewer valves, tubes and joints;
4. Concise design, less maintenance on site;
5. Lower weight of design;
6. Additional gas-filling devices.
Model No. | SCS0825CS-40F | SCS0925CT-40B | SCS1025CT-40B | SCS1225CS-40F | SCS0625CS-40F-711 |
Cylinder quantity | 8 | 9 | 10 | 12 | 6 |
Working pressure/MPa | 25 | 25 | 25 | 25 | 25 |
Cylinder size/mm | OD559*17.4*10975 | OD559*17.4*12190 | OD559*17.4*10975 | OD559*17.4*10975 | OD711*22.1*10975 |
Steel type | 4130X/30CrMo | 4130X/30CrMo | 4130X/30CrMo | 4130X/30CrMo | 4130X/30CrMo |
Working temperature | -20~65℃ | -20~65℃ | -20~65℃ | -20~65℃ | -20~65℃ |
Cylinder weight/KG | 2825 | 3100 | 2825 | 2825 | 4460 |
Equipment weight /KG | 25860 | 35500 | 33920 | 37260 | 31000 |
Water volume/M3 | 17.8 | 23.22 | 23.3 | 27 | 22.2 |
Filling gas volume /NM3 | 5300 | 6900 | 7000 | 8030 | 6600 |
Loading weight/KG | 3800 | 4965 | 5019 | 5760 | 4736 |
Total weight/KG | 29660 | 40455 | 38939 | 43020 | 35735 |
Skid/Trailer dimension | 12192*2438*1400 | 12960*2490*3300 | 12192*2438*3350 | 12192*2438*2010 | 12192*2438*1775 |
| (skid) | (trailer) | (trailer) | (skid) | (skid) |
