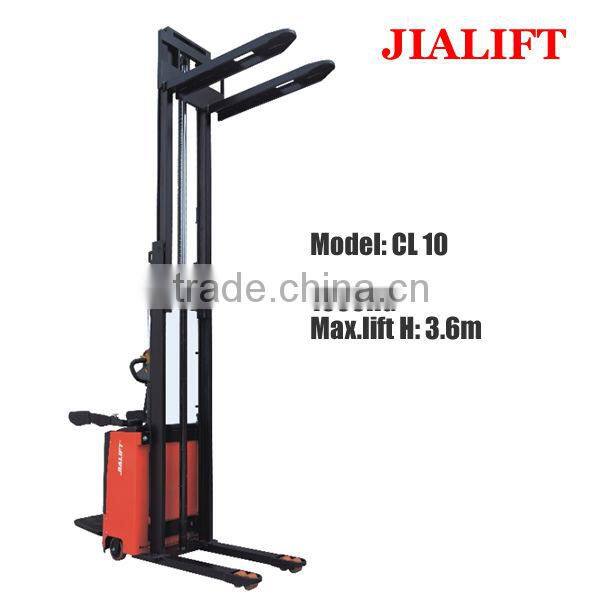

Full Electric Stacker Brand New Forklift

Name: Full Electric Stacker Brand New Forklift
Brand: JIALIFT
SKU: 119897799
Availability: InStock

US$ 3,430 - 4,307 MOQ: 1 Unit

Key Specifications

Condition:

New

Place of Origin:

China

Brand Name:

JIALIFT

Zhejiang Jialift Warehouse Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin China

Brand Name JIALIFT

Model Number CL10

Type Other, electric stacker

Power Souce DC Motor

Rated Loading Capacity 1000kg

Max. Lifting Height 3600mm

Min. Lifting Height 86mm

Fork Length 1150mm

Fork Width 180mm

Specifications

High performance hydraulic power unit, combined DC motor, gear pump. Value disc and pipe components.

The specification of full electric stacker cl10

Identification	1.1	Model		CL1016		CL1026	CL1032		CL1036
	1.2	Operate type		Pedestrian
	1.3	Drive		Electric
	1.4	Load capacity	kg	1000
	1.5	Load capacity. Fork’s highest point		1000	800			700	600
	1.6	Load center distance	mm	600
Weight	2.1	Service weight	kg	680	860			890	920
Wheels	3.1	Tyres		Polyurethane wheels
	3.2	Axle loading, laden rear	mm	Φ250×78, 2 pcs
	3.3	Axle loading, laden front	mm	Φ80×70, 4pcs
Size	4.1	Lift height	mm	1600		2600	3200		3600
	4.2	Height lowered fork	mm	85
	4.3	Overall length	mm	1893
	4.4	Overall width	mm	805
	4.5	Fork length	mm	1150
	4.6	Outside width	mm	570/695
	4.7	Single fork width	mm	180
	4.8	Turning radius	mm	1460
Performance data	5.1	Lift speed, laden/unladen	m/s	150/105
	5.2	Lowering speed. Laden/unladen	m/s	95/100
	5.3	Service brake		Electromagnetic
	5.4	Drive speed, laden/unladen	Kw/h	5.5/5.2
E-motor	6.1	Lift motor	kw	2.2
	6.2	Drive motor	kw	1.2
	6.3	Battery voltage, nominal capacity	v/ah	24/210
	6.4	Battery type		Industrial battery
	6.5	Battery weight	kg	210
	6.6	Battery working time, full charge	h	5
