Parameters
Speed(m/min) |
Lifting |
15-80 |
Walking |
15-50 |
|
Side-sliding |
20-30 |
|
Control mode |
Speed control |
Frequency control |
Operation control |
PLC |
|
Operation mode |
Touch screen, IC card |
|
Driving mode |
Motor+Wirerope (or chain) |
|
Motor(KW) |
Lifting |
15~30 |
Walking |
7.5 |
|
Shifting |
1.1 |
|
Structure and sizes
Model |
Large car |
Oversize car |
Length*Width*Height |
5000*1850*1550 |
5300*2050*2100 |
Weight |
2000kg |
2350kg |
L(mm) |
L=A*n+2750(n-Row number) |
|
A(mm) |
5500 |
5800 |
H(mm) |
B+B18(N-1)+500(N-Layer number) |
|
B(mm) |
700 |
|
B1(mm) |
Sedan 1700, Minibus |
|
B2(mm) |
2300 |
|
CO(mm) |
6900mm |
7200 |
C(mm)co=2c+c1 |
2000 |
2200 |
C1(mm) |
2500 |
2800 |
Parking car No. |
20~120 parking spaces/garage |
|
Parking layer No. |
2~6 layers |
|

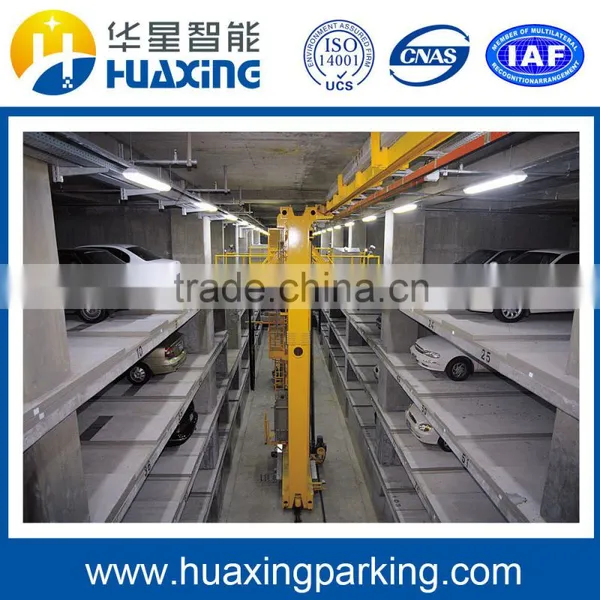

Working Principle
Stacker or bridge-style crane is adopted to move the cars in the carrier to the parking spaces in a horizontal and vertical way. The parking and releasing device will finish the parking and releasing of the car equipment characteristics.
Advantages:
Stacker parking system has advantages of space saving, flexible design, convenient control and operation. It can realize simple and fast parking and releasing with high automatic functions in the whole process.
1) Warranty: 1 year after acceptance check, but all the spare parts can be provided lifetime.
2) Free training of 7-10 days at our factory.
3) Provide technical guidance and design.
