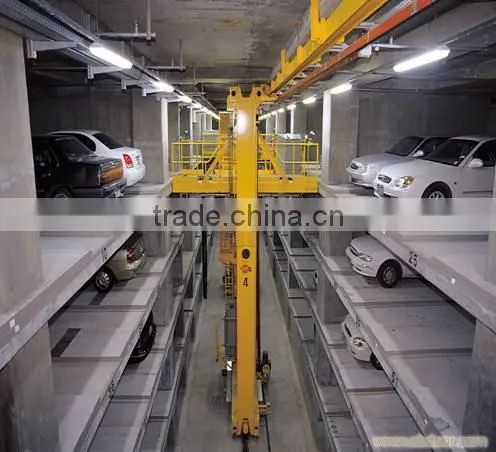

PXD Lane Stacking Garage Intelligent Parking Equipment

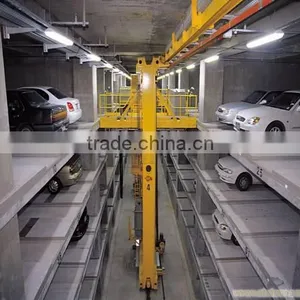

PXD Lane Stacking Garage Intelligent Parking Equipment thumbnail-1
PXD Lane Stacking Garage Intelligent Parking Equipment photo-1
US$ 2,000 - 4,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Parking Lift
Place of Origin:
Anhui, China
Brand Name:
huaxing
Contact Supplier Request Quote Chat Now
Anhui Huaxing Intelligent Parking Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or nanjing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Parking Lift
Place of Origin Anhui, China
Brand Name huaxing
Model Number PXD
Warranty 40 Years

   PXD Lane stacking garage Intelligent parking equipment





Parameters

Speed(m/min)

Lifting

15-80

Walking

15-50

Side-sliding

20-30

Control mode

Speed control

Frequency   control

Operation   control

PLC

Operation mode

Touch screen, IC   card

Driving mode

Motor+Wirerope (or chain)

Motor(KW)

Lifting

15~30

Walking

7.5

Shifting

1.1

  Structure and sizes

Model

Large car

Oversize car

Length*Width*Height

5000*1850*1550

5300*2050*2100

Weight

2000kg

2350kg

L(mm)

L=A*n+2750(n-Row   number)

A(mm)

5500

5800

H(mm)

B+B18(N-1)+500(N-Layer   number)

B(mm)

700

B1(mm)

Sedan 1700, Minibus

B2(mm)

2300

CO(mm)

6900mm

7200

C(mm)co=2c+c1

2000

2200

C1(mm)

2500

2800

Parking car No.

20~120 parking spaces/garage

Parking layer No.

2~6 layers

 Working Principle

Stacker or bridge-style crane is adopted to move the cars in the carrier to the parking spaces in a horizontal and vertical way. The parking and releasing device will finish the parking and releasing of the car equipment characteristics.





Advantages: Stacker parking system has advantages of space saving, flexible design, convenient control and operation. It can realize simple and fast parking and releasing with high automatic functions in the whole process.











Advantages

1, Self designing, manufacturing, installing, and also researching and developing automatic parking system, with powerful technical advantages;  2, cooperating with the world-renowned parking system manufacture, Korea Dongyang Co., having foreign advanced technologies;  3, High specialization, advanced processing equipment/machinery;  4, Having our own installation engineering team without outsourcing to install, supervising and managing efficiently; Adjustment of automatic products is fulfilled by Senior engineers having accomplished many parking system projects with rich experience and good understanding about the products; ;  5, using high quality steel materials, special-made driving chain, and special-made motor for parking system, which bring our parking systems long life-scan, steady & safe running, low accident rate, etc.



PXD Lane stacking garage Intelligent parking equipment



 our project

PXD Lane stacking garage Intelligent parking equipment



Our patents

PXD Lane stacking garage Intelligent parking equipment



Our certificates



About us

PXD Lane stacking garage Intelligent parking equipment

1.Huaxing Metal Structure Co., Ltd., as the main investment party of Huaxing Parking, has Grade-I steel structure manufacturing and installation qualification, ten years of manufacturing and sales experience and more than 8 million square meters of steel structure construction cases. So we can guarantee the permanent beauty of the machinery garages in the aspects of derusting, paint spraying and welding of steel structures.





2. Huaxing Parking has established long-term closely cooperative relationships with Hefei University of Technology, Chinese Academy of Sciences (Hefei) and advanced parking equipment manufacturers in Japan, South Korea, etc. It has more than 60 professional technicians, including 5 professor senior engineers and 25 engineers. Most of them have above 5 years of experience in parking equipment industry. Most of the workers committed to steel structures and electrical accessories have above 3 years of experience, skilled and experienced.



3.Huaxing continuously makes improvements in the aspect of technology and challenges zero defect in the aspect of quality. Since 2008, it has recruited technical experts and management elites with high salary from Shuangliang, Yee Fung, XJ, Hanguang, South Korea YKY, etc. Especially, several patents (such as advanced safe, automatic and flexible loading technology, falling preventive device and stroke control devices, etc.) fill in the blanks in national market. Now the team is stable and in good spirit, which is the basic guarantee of long-term development.



Our Services



1) Lifetime Service ,one year warranty for all steel structures and electric parts 2) Proive engineer to guide installation

3) Provide technical consulting and design
